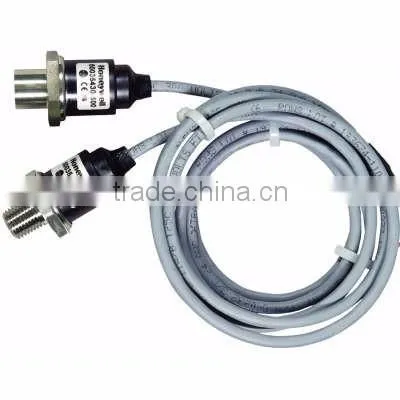

MLH150PSCDJ1236 Gauge Pressure Sensor

Overview

The MLH Series is a two-wire 4-20mA gauge pressure sensor. This digitally compensated sensor offers an unparalleled value/performance combination, making it an ideal solution for demanding applications. Available in pressure ranges up to 1000 psi.

Features

•  Available in 50, 150, 300, 500 and 1000 psi.

•  All metal wetted parts for use in wide variety of fluid applications.

•  Suitable for use with freon and ammonia based cooling systems.

•  No internal elastomeric seals mean no o-ring compatibility issues.

•  Less than 2 ms response time provides accurate, high speed measurement.

•  Select models available with 1/4-in. SAE female Schrader connection with valve depressor.

Product Specifications

Materials                                                                        Housing--Black plastic, A model AS-4133 HS-PPA; In contact with media--SST                                                                                            304L and Haynes 214 alloy

Item Type                                                                       Product

Electrical Connections                                                Cable (3 meter)

Voltage                                                                           9.5Vdc to 30Vdc

Operating Temperature Range (F)                            -40 F to +257 F

Operating Temperature Range (C)                            -40 C to +125 C

Approvals, CE                                                                CE

Output                                                                              4-20 mA, 2-wire

Connection Size (in.)                                                    1/4"-18 NPT

Pressure Range (psi)                                                   150 psig

Accuracy                                                                         ±0.25% of full scale span

Proof pressure                                                               3XWorking Pressure Range

Burst pressure                                                               10X Working Pressure Range
