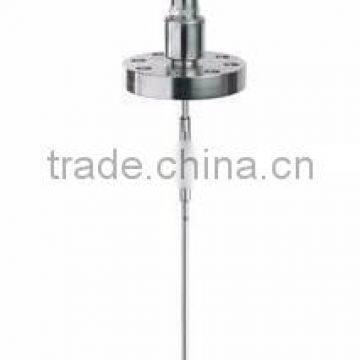

Guided radar measurement Time-of-Flight Levelflex FMP54
For high temperature and high pressure applications in the oil & gas, chemical and power industry
Product Overview
Levelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam boilers and toxic media like ammonia. The gastight feedthrough guarantees additional safety. Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases. Reliable measurement in case of moving surface and foam or in changing medias.
Benefits
Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Seamless integration into control or asset management systems
Intuitive, menu-guided operation concept (on-site or via the control system) in national languages reduces costs for training, maintenance and operation
World's easiest proof test for SIL and WHG saves time and costs
Field of application
Version with rod, rope or coax probe.
Process connections: Thread or flange
Temperature: -196 to +450°C (-320 to +842°F)
Pressure: -1 to +400bar (-14.5 to +5,800psi)
Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)
Accuracy: rod ±2mm (0.08")
International explosion protection certificates, 5-point linearity protocol, WHG overfill prevention, SIL, ship building approval, steam boiler approval, EN10204-3.1
Technical information
| Measuring Principle | Guided radar | |
| Characteristic / Application | Premium device high pressure/ high temperature Rod probe, Rope probe, Coaxial Probe Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias |
|
| Interface measurement | Clean interfaces liquid/ liquid; Simultaneous measurement of interface and overall level |
|
| Supply / Communication | 2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) |
|
| Accuracy | Rod probe: +/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in) |
|
| Ambient temperature | -40...+80 °C (-40...+176 °F) |
|
| Process temperature | XT: –196...+280 °C (–321...+536 °F) HT: –196...+450 °C (–321...+842 °F) |
|
| Process pressure absolute / max. overpressure limit | Vakuum...400 bar (Vacuum...5800 psi) |
|
| Main wetted parts | Rod probe: 304, 316L, Alloy C, Ceramic Rope probe: 304, 316, 316L, Alloy C, Ceramic Coaxial probe: 304, 316L, Alloy C, Ceramic |
|
| Process connection | Thread: G 1 1/2, MNPT 1 1/2 Flange: ASME 2"...4", DN50...DN100, JIS 10K, 63K, Fisher Masoneilan |
|
| Sensor length | Rod probe: 10 m (33 ft) Rope probe: 45 m (148 ft) Coaxial probe: 6 m (20 ft) |
|
| Max. measurement distance | Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m...30 m (82 ft...98 ft) Min DK>1.6; 30 m...45 m (98 ft...148 ft) Min DK >1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4 |
|
| Output | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
|
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IECEx, NEPSI, KC, INMETRO Overfill prevention WHG SIL EN10204-3.1 NACE Steam boiler approval |
|
| Options | Sensor remote with 3 m/9 ft cable | |
| Application limits | Horizontal storage tank cyl.: use coax probe Interface measurement: Use coax system in favor (coax probe, bypass, stilling well) Interface with emulsion: FMP55 |
|
