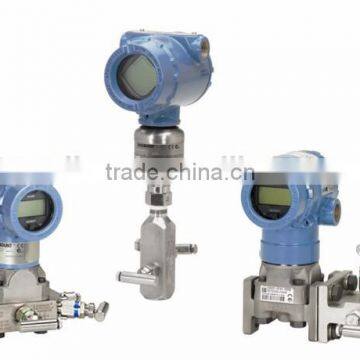

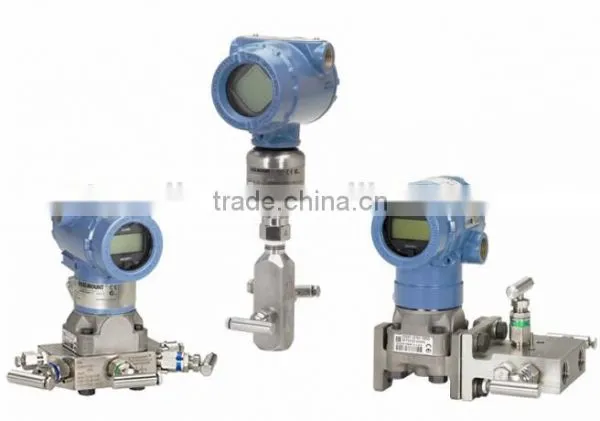

Rosemount Manifolds
Product Features
• Factory assembled, leak-tested, and calibrated
• Full breadth of offering including integral, conventional, and in-line designs
• Integral design enables “flangeless” valve integration
• 2, 3, and 5-valve configurations
• Compact, lightweight design
• Easy in-process calibration
• Direct-mount capability
Rosemount 3051SAL Scalable Level Transmitter
Specifications
| 305 Integral | 306 Inline | 304 Conventional | ||
|
PTFE Packing |
6092 psi @ 200F (420 bar @ 93C) 4000 psi @ 400F (276 bar @ 204C) |
10000 psi @ 85F (689 bar @ 29C) 4000 psi @ 400F (276 bar @ 204C) |
6000 psi @ 200F (414 bar @ 93C) 4000 psi @ 400F (276 bar @ 204C) |
|
Pressure & Temperature Limits |
Graphite Packing |
6092 psi @ 200F (420 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C) |
6000 psi @ 200F (414 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C) |
6000 psi @ 200F (414 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C) |
|
Graphite (ASME B31.1) Packing |
6092 psi @ 100F (420 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C) |
6000 psi @ 100F (414 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C) |
6000 psi @ 100F (414 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C) |
|
| Process Connection |
Coplanar: ½-14 Female NPT
Traditional: ¼-18 or ½-14 Female NPT
2 1/8-in. (54 mm) center to center |
½-14 Female NPT or ½-14 Male NPT |
FxP and FxF: 2 1/8 -in. (54 mm) center to center connection
Wafer: 1 ½-in (38 mm) center to center connection
FxP and Wafer: ½-14 Female NPT process connection |
Aplications
| Pressure |
|

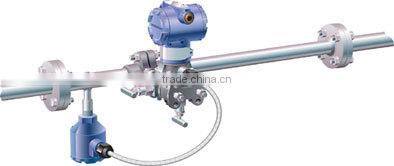

Rosemount manifolds are installed in a wide range of pressure applications. Example shown: Rosemount 3051S Transmitter with a 306R inline style manifold.
• Compact, lightweight assembly needs no mounting bracket for most applications • Nebraska Boiler Saves 25% on Manifold Costs Per Year Using Pre-Assembled Manifolds
|
| DP Flow |
|
Rosemount manifolds are also installed in a wide range of DP Flow applications. Example shown: Rosemount 3095 MultiVariable™ Mass Flow Transmitter with a 305R manifold installed on a flow measurement application.
Eliminates impulse piping to minimize static line error |
| DP Level |
|

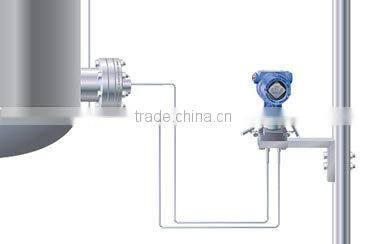

Rosemount manifolds are also installed in a wide range of DP Level applications. Example shown: Rosemount 3051S with a 305R 3-valve Coplanar style manifold installed in a DP level tank measurement application.
Compact, lightweight assemblies provide process isolation for wet ⁄ dry leg DP Level applications. |
