Guided radar measurement Time-of-Flight Levelflex FMP51
The standard sensor for highest demands in liquid level measurement
Product Overview
Levelflex FMP51 for level measurement even under extreme process conditions like
high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
Benefits
Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Seamless integration into control or asset management systems
Intuitive, menu-guided operation concept (on-site or via the control system) in national languages reduces costs for training, maintenance and operation
World's easiest proof test for SIL and WHG saves time and costs
Field of application
Version with rod, rope or coax probe.
Process connections: Threads or flange
Temperature: -40 to +200°C (-40 to +392°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)
Accuracy: ±2mm (0.08")
International explosion protection certificates, 5-point linearity protocol, WHG overfill prevention, SIL, ship building approval, EN10204-3.1
Technical information
| Measuring Principle | Guided radar | |
| Characteristic / Application | Premium device Rod probe, Rope probe, Coaxial probe Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias. |
|
| Interface measurement | Clean interfaces liquid/ liquid; Simultaneous measurement of interface and overall level |
|
| Supply / Communication | 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) |
|
| Accuracy | Rod probe :+/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in) |
|
| Ambient temperature | -40...+80 °C (-40...+176 °F) |
|
| Process temperature | –40...+200 °C (–40...+392 °F) |
|
| Process pressure absolute / max. overpressure limit | Vacuum...40 bar (Vacuum...580 psi) |
|
| Main wetted parts | Rod probe: 316L, Alloy C, Ceramic Rope probe: 316, 316L, Alloy C, Ceramic Coaxial probe: 316L, Alloy C, Ceramic, PFA |
|
| Process connection | Thread: G3/4...G1 1/2; MNPT 3/4...MNPT1 1/2 Flange: ASME 1 1/2"...8", DN50...DN 200, JIS 10K |
|
| Sensor length | Rod probe: 10 m (33 ft) Rope probe: 45 m (148 ft) Coaxial probe: 6 m (20 ft) |
|
| Max. measurement distance | Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6; 30m...45 m (98ft...148 ft) Min DK>1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4 |
|
| Output | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
|
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IECEx, NEPSI, KC, INMETRO Overfill prevention WHG SIL EN10204-3.1 Marine |
|

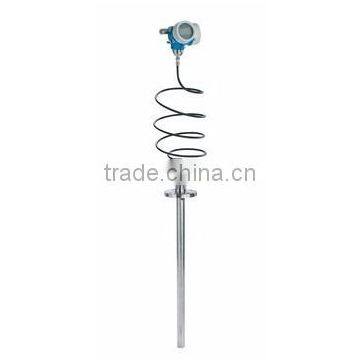

| Options | Sensor remote with 3 m/9 ft cable Gas-tight feed through |
|
| Application limits | Horizontal storage tank cyl.: use coax probe Corrosive liquids: FMP52 Interface measurement: Use coax system in favor (coax probe, bypass, stilling well) Interface with emulsion: FMP55 |
|
