API 5dp Oilfield Use Drill Pipe
Product Description

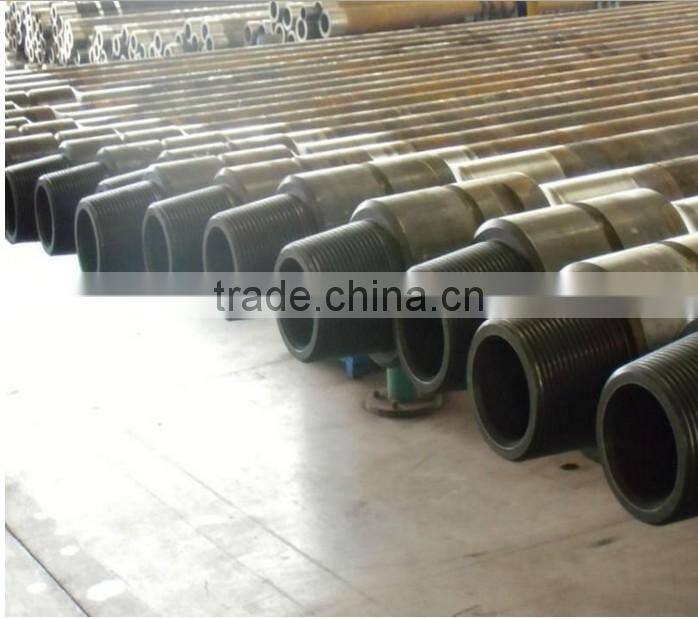

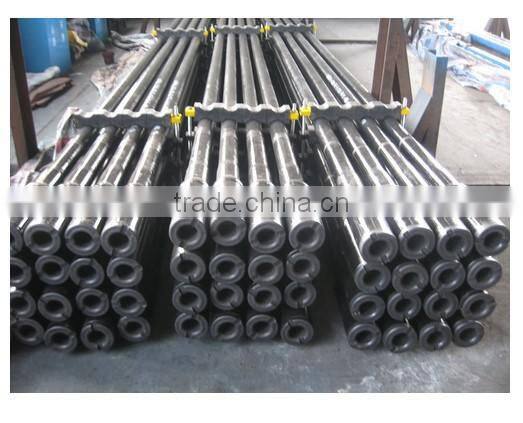

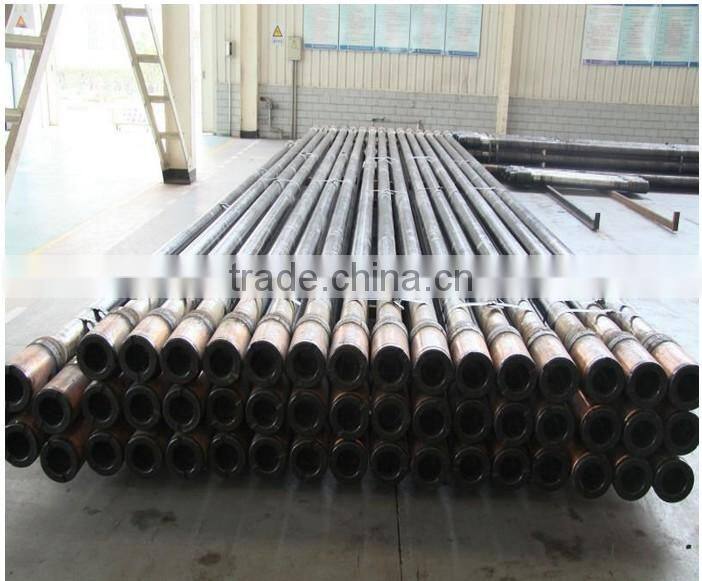

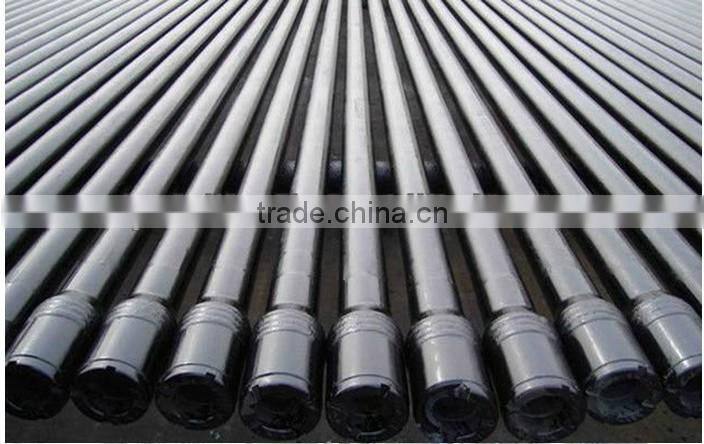

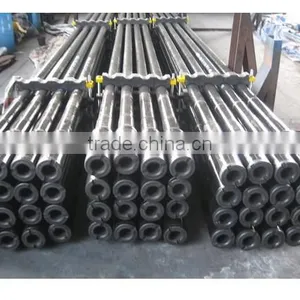

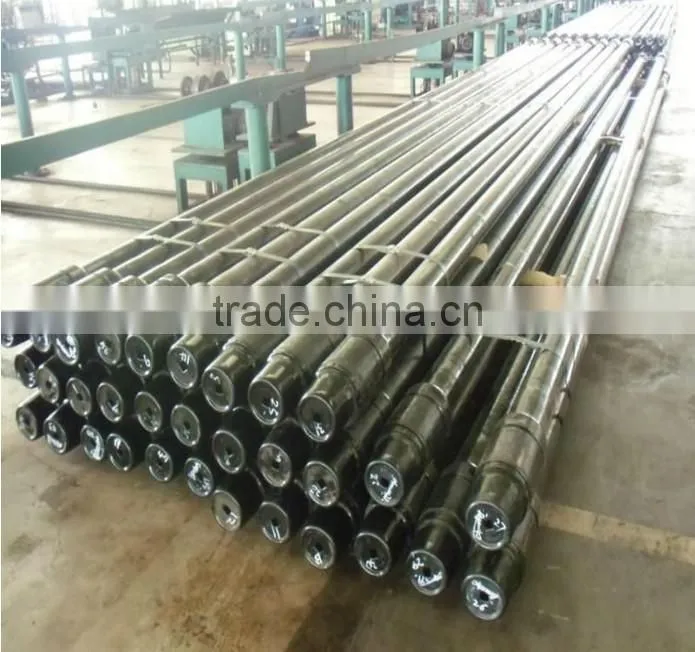

API 5DP oilfield use drill pipe
Main feature:
A. The drill rods comply with the provisions of API SPEC 5D & API SPEC7.
B. The grade of steel are determined according to the requirements of Group 1 & Group 3 of API SPEC 5D.
C. Drill pipe joints at the same level comply with the provisions under the Standard API SPEC 7.
Drill Pipe Feature:
A. High precision in size and shape
B. Good low temperature toughness
C. Excellent comprehensive mechanical properties
D. High connection strength and sealability
E. Large inside diameter of tool joint
F. High torque resistance
G. High fatigue strength and long fatigue life
Internal Coating Feature:
A. High abrasion resistance and low friction factor
B. Good adhesion and flexility
C. High application temperature and pressure
D. High hardness and impact resistance
E. Good corrosion resistance
Hardbanding Feature:
A. Good balance between antiwear and friction-reduction
B. The wear rate is less than 6% of that of bare tool joint, which can prolong 3 times of the
Tool joint service life
C. Good property of friction-reduction, which can reduce the casing wear to the least, and its
Wear to casing is less than 11% of that of bare tool joint
D. Reduce the torque of drilling string
E. Good weldablity with little splash and good rewelding preformance
F. Friendly to environment
Detailed Product Description:
API Standard Drill Pipe for Sale
(1) OD of pipe body : 2 3/8'' to 5'' inch
(2) Grade: E75, X95, G105, S135
(3) Wall Thickness: 7.11mm to 12.7mm
Internal Coating: TK34 TC2000 TC3000
Hardbanding:ARNCO 100XT 200XT 300XT
Length: R1:6.10-7.01m R2:8.84-9.75m R3: 12.19-13.72m
Use: Oil field Drilling, Water wall drilling, Geographical Drilling
All the specification of drill pipes:
