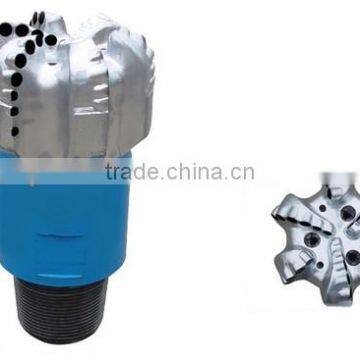

8-1/2TDM613N6 Diamond Drill Bit
Drill bit features:
1. Parabolic crown profile, blade cutter setting
2.13mm PDC cutter, medium cutter density
3. Interchangeable screw nozzle
4. Under-cut shank maximizes junk slot area for better bit cleaning. High tilt nozzles for improved hydraulics and ROP
5. Suitable for soft to medium formation
6. Can be used on rotary or down hole motor
7. High HIS is recommended
The types and specs of all kinds of PDC comprehensive diamond bits, and we can design and produce PDC coring bits and Triangle Polycrystalline and synthetic diamond coring drill bits.
| Specs (size) | body material | blades | No. of nozzle | Cutter size | |
| mm | in | ||||
| 95mm | 4 | matrix | 4 blade | 4 | 13.4mm |
| 98mm | 4 | matrix | 3 blade | 3 | 13.4mm |
| 102mm | 4 | matrix | 4 blade | 4 | 13.4mm |
| 105mm | 4-1/8 | matrix | 4 blade | 4 | 13.4mm |
| 114mm | 4-1/2 | matrix | 4 blade | 4 | 13.4mm |
| 114mm | 4-1/2 | matrix | 5 blade | 5 | 13.4mm |
| 118mm | 4-5/8 | matrix | 3 blade | 3 | 13.4mm |
| 120mm | 4-3/4 | matrix | 3 blade | 3 | 13.4mm |
| 120mm | 4-3/4 | matrix | 4 blade | 4 | 13.4mm |
| 120mm | 4-3/4 | matrix | 5 blade | 5 | 13.4mm |
| 130mm | 5-1/8 | matrix | 3 blade | 3 | 13.4mm |
| 130mm | 5-1/8 | matrix | 4 blade | 4 | 13.4mm |
| 132mm | 5-1/8 | matrix | 5 blade | 5 | 13.4mm |
| 133mm | 5-1/4 | matrix | 4 blade | 4 | 13.4mm |
| 140mm | 5-1/2 | matrix | 5 blade | 5 | 13.4mm |
| 142mm | 5-5/8 | matrix | 3 blade | 3 | 13.4mm |
| 142mm | 5-5/8 | matrix | 4 blade | 4 | 13.4mm |
| 142mm | 5-5/8 | matrix | 5 blade | 5 | 13.4mm |
| 146mm | 5-3/4 | matrix | 5blade | 5 | 13.4mm |
| 149.2 | 5-7/8 | matrix | 3 blade | 3 | 13.4mm |
| 149.2 | 5-7/8 | matrix | 5 blade | 5 | 13.4mm |
| 152mm | 6 | matrix | 3 blade | 3 | 13.4mm |
| 152mm | 6 | matrix | 4 blade | 4 | 13.4mm |
| 152mm | 6 | matrix | 5 blade | 5 | 13.4mm |
| 152mm | 6 | matrix | 6 blade | 3 | 13.4mm |
| 155mm | 6-1/8 | matrix | 8 blade | 4 | 13.4mm |
| 159mm | 6-1/4 | matrix | 5 blade | 5 | 13.4mm |
| 159mm | 6-1/4 | matrix | 6 blade | 6 | 16mm |
| 165mm | 6-1/2 | matrix | 5 blade | 5 | 16mm |
| 171mm | 6-3/4 | matrix | 5 blade | 5 | 16mm |
| 200mm | 7-7/8 | matrix | 5 blade | 5 | 13.4mm |
| 200mm | 7-7/8 | matrix | 4 blade | 4 | 19mm |
| 200mm | 7-7/8 | matrix | 5 blade | 5 | 19mm |
| 200mm | 7-7/8 | matrix | 5 blade | 5 | 19mm |
| 206mm | 8-1/8 | matrix | 5 blade | 5 | 19mm |
| 215mm | 8-1/2 | matrix | 5 blade | 5 | 19mm |
| 215mm | 8-1/2 | matrix | 6 blade | 6 | 19mm |
| 215mm | 8-1/2 | matrix | 6 blade | 4 | 13.4mm |
| 215mm | 8-1/2 | matrix | 4 blade | 4 | 13.4mm |
| 222mm | 8-3/4 | matrix | 6 blade | 6 | 19mm |
| 241mm | 9-1/2 | matrix | 6 blade | 6 | 19mm |
| 247mm | 9-7/8 | matrix | 4 blade | 5 | 19mm |
| 311 | 12-1/4 | matrix | 5 blade | 7 | 19mm |
| 374 | 14-3/4 | matrix | 5 blade | 9 | 19mm |
