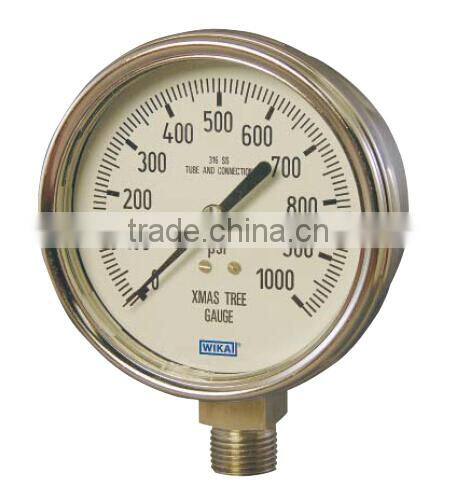

Bourdon Tube Pressure Gauge Type 232.54 XMAS Tree Gauge
All Stainless Steel Construction
Application
Designed specifically for oilfield well heads. Suitable for corrosive environments compatible with 316 stainless steel wetted parts for liquid or gaseous media which will not obstruct the pressure system.
Standard Features
Design
ASME B40.100 and EN 837-1
Sizes
4“ (100 mm)
Accuracy Class
± 1.0% of span
Ranges (All ranges not stocked)
Vacuum / Compound to 30 InHg / 0 / 200 psi
Pressure from 15 psi to 15,000 psior other equivalent units of pressure or vacuum
Working Pressure
Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short Time: 1.3 x full scale value
Operating Temperature
Ambient: -40°F to 140°F (-40°C to 60°C)
Media: 212°F (+100°C) maximum
Temperature Error
Additional error when temperature changes from reference tempe-rature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling. Percentage of span.
Pressure Connection
Material: 316L stainless steel
Lower Mount (LM) 1/4“ or 1/2“ NPT (limited to wrench flat area)
Bourdon Tube
Material: 316L stainless steel
30 InHg (Vac) to 1000 psi C-type
1500 psi to 15000 psi helical type
Movement
Stainless steel
Dial
White aluminum with black lettering and large numerals for easy reading
