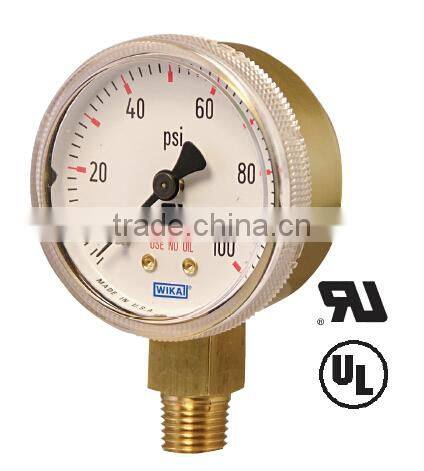

Bourdon Tube Pressure Gauge, Type 111.11 Compressed Gas Regulator Gauge

Xian Wellwork Industrial Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Germany

Model Number:

111.11

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Model Number 111.11

Bourdon Tube Pressure Gauge, Type 111.11 Compressed Gas Regulator Gauge, Standard Series

Applications

Compressed gas regulators
Beverage dispensing machines
Suitable for all media that will not obstruct the pressure system or attack copper alloy parts

Special features

Standard features

Design ASME B40.100	Bourdon Tube Material: copper alloy 15 psi to 600 psi: C-type (low copper content) 800 psi to 6,000 psi: helical
Sizes 1½”, 2” & 2½” (41, 53 & 68 mm)	Movement Copper alloy
Accuracy class ± 3/2/3% of span (ASME B40.100 Grade B)	Dial White aluminum with stop pin and black lettering “USE NO OIL” in red
Ranges Vacuum / Compound to 200 psi Pressure from 15 psi to 6,000 psi or other equivalent units of pressure or vacuum	Pointer Black aluminum, non-adjustable
Working pressure Steady: 3/4 of full scale value Fluctuating: 2/3 of full scale value Short time: full scale value	Case 1½”: gold-painted steel 2” & 2½”: polished brass or gold-painted steel
Operating temperature Ambient: -40°F to 140°F (-40°C to 60°C) Media: 140°F (+60°C) maximum	Window Twist-lock clear polycarbonate
Temperature error Additional error when temperature changes from reference temperature of 68°F (20°C) +0.4% for every 18°F (10°C) rising or falling. Percentage of span.
Pressure connection Material: Copper-Alloy Lower Mount (LM): 1½”, 2” and 2½” Center Back Mount (CBM); 1½”and 2” 1/8” NPT, ¼” NPT, limited to wrench flat area
