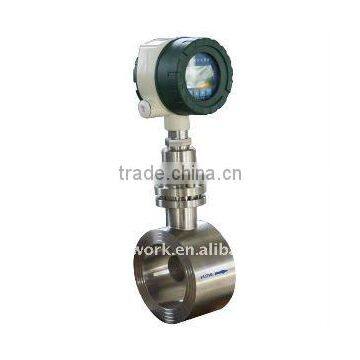

Smart Target Flowmeter

Name: Smart Target Flowmeter
Brand: LGBS
SKU: 141944992
Availability: InStock

Xian Wellwork Industrial Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanxi, China

Brand Name:

LGBS

Model Number:

LGBS-40/50/40/100/300.....

Payment & Shipping

Payment Methods:

Port of Shipment:

xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanxi, China

Brand Name LGBS

Model Number LGBS-40/50/40/100/300.....

Specifications

1.Description:digital target flowmeter
2.Accuracy:0.2 - 1.5%
3.Repeatability:0.05%~0.08%
4.Caliber:DN65-3000mm

Item Performance, Parameters
Caliber	DN65-3000mm
PN	0.6 --- 42MPa
Condition Temperature	-200 ~ +500
Accuracy	±0.2 ~ ±1.5%FS
Repeatability	0.1% ~ 0.08%
Media temperature	-20 ~ +70 (normal temperature type) -196 ~ +700 (high/low temperature type)
Measure Ratio	110
Enclosures	Carbon steel; stainless steel (or by user request consultations provided)
Power Supply	Built-in 3.6VDC Li-ion battery (can use for two years without signal output); external supply 24VDC (with the signal output)
output signal	4 ~ 20mA-wire system; Pulse 0 ~ 1000HZ; RS232/RS485 (or by user request consultations provided)
Protection Level	IP65 IP67
Explosion mark	ExiallCT4 or ExdllCT4
Executive Standard	Q/BET05-06
Display	Cumulative flow; instantaneous flow; working conditions temperature; working condition pressure (temperature and pressure compensation type only); the percentage of full-scale bar; fault self-test
Connection Flange	Connection Flange: GB (GB / T) series; Chemicals (HG) series; Machine (JB / T) series; can also produce according to customer requirements in consultation
Features	* Installation is simple and convenient, easy t
