Specifications
1 Compact wafer design meets EN 1092, DIN and ANSI flange standards2 Easy Plug & Play field changeability of transmitter

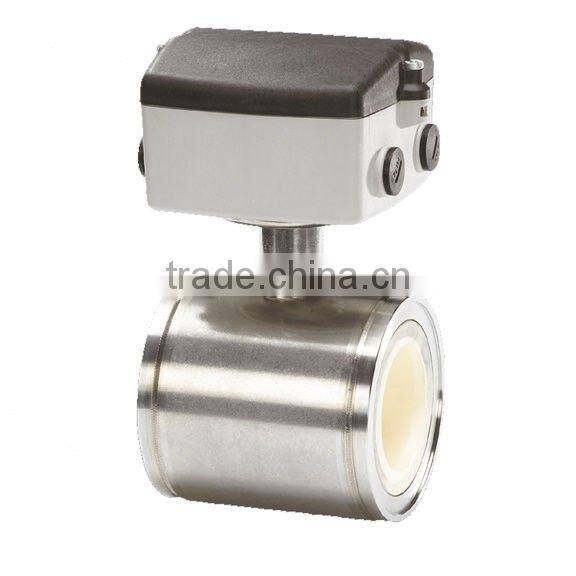

SITRANS F M MAG 1100 is a wafer design sensor in stainless steel with highly resistant liners and electrodes and is designed for the general industry environment. The flangeless wafer design meets all flange standards.
The SITRANS F M MAG 1100 is used in all industries where the corrosion-resistant stainless steel housing and the highly resistant liner and electrodes fit even the most extreme process media.
In order to have a complete flowmeter please combine it with one of the following MAG transmitters:
SITRANS F M MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
SITRANS F M MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
SITRANS F M MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
Application examples: Process industry, Chemical industry, Water treatment
Detail
| Meassuring range | 0 to 10 m/s |
| Nominal Sizes | From DN 2 to DN 100 (1/12" to 4") |
| Accuracy | 0.2 % ±1 mm/s 0.4 % ±1 mm/s (PFA) |
| Operating Pressure | Max. 40 bar (Max. 580 psi) |
Benefits
- Compact or remote mounting possible
- Highly resistant liner and electrodes that are suitable for most extreme process media
- Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint
