Specifications
124 AWG conductor solid bare copperPVC, LSZH and PE external jacket
Supplied in 305m box
Printed metre marks
PVC, LSZH ,PE
Category 5e FTP Cable

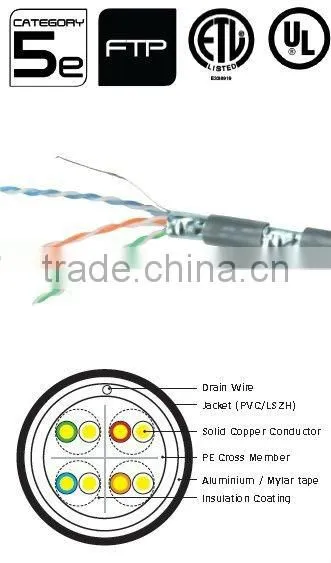

Category 5e Foiled Twisted Pair (FTP) 100 Ohm cable is produced using a 4 x 2 x 24 AWG copper wire structure to a Class D standard. Aluminium tape is used to shield all 4 pairs; this gives a screened protection against external interference such as EMI. It supports the gigabit Ethernet protocol for horizontal and backbone installations.
Features
24 AWG conductor – solid bare copper
PVC, LSZH and PE external jacket
Supplied in 305m box
Printed metre marks
PVC, LSZH and PE options
Applications
Supports Category 5e (Class D) networks running up to 100 MHz applications
Ideal for environments where heavy external
Interference can disrupt signal such as EMI
External horizontal and backbone installations
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
ATM 155 100
VG any LAN (IEEE 802.12)
Conformance
Category 5e
ANSI/EIA/TIA 568B.2 : 2002
ISO/IEC 11801 : 2002
RoHS ,ETL/UL approved
Technical Specification
| construction | value | |
| Conductors | AWG | 24 |
| Size mm | 0.515 | |
| Material | Solid Bare Copper | |
| Insulators | Diameter mm | 1.03+/-0.03 |
| Material | Polyester + Aluminium Foil | |
| Jacket | External O.D. | 6.3 +/- 0.3 |
| Thickness mm | 0.55 +/- 0.05 | |
| Material | PVC / LSZH / PE | |
Ordering Information :
| Description | Part No |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable PVC 305m Box - Grey | FTP5E305PVC |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable LSZH 305m Box - Violet | FTP5E305LSZH |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable External PE - 305m box-black | FTP5E305EXT |
