Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment

Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-1
Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-2
Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-3
Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-4
Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-5
Home Appliance Water Machine 300mg Bathtubs Jacuzzi Ozone Water Treatment photo-6
US$ 18.5 - 36 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BWT
Model Number:
Aquatic 2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name BWT
Model Number Aquatic 2

home appliance water machine 300mg bathtubs jacuzzi ozone water treatment



Mini Portable Ozone Spa Hot Tub Generator 300 mg/h Water

Cleaning Machine

Features
  • Replace all other model ozone generator in Spa & hot tubs
  • 85-250 VAC
  • US design&quality
  • Have different kind ozonators
Specification
  •  Model: Aquatic 2
  • Electric: 85~250 VAC 50/60 HZ
  • Power:6W
  • Ozone Output: 300 mg/h
  • Size: 3.6*2.5*5.7 inch,92*62*146 mm
  • Weight: 0.74lbs,330 gram
  • Connection: AMP model
  • Cable:5.5ft
  • Check Valve:1/4 inch
  • Tube: 5ft
Product Details

home appliance water machine 300mg bathtubs jacuzzi ozone water treatmenthome appliance water machine 300mg bathtubs jacuzzi ozone water treatmenthome appliance water machine 300mg bathtubs jacuzzi ozone water treatmenthome appliance water machine 300mg bathtubs jacuzzi ozone water treatment

Installation
  •  How BWT's Aquatic 2 Works:
  • BWT Ozone Generators produce ozone gas which is introduced to spa water through suction created by the spa injector. Tubing is used to connect the ozone generator to an injector (pictured below). The injector acts similarly to a vacuum, and pulls the ozone gas out of the Aquatic 2 and into the water.

home appliance water machine 300mg bathtubs jacuzzi ozone water treatment

  • Venturi Injector Method
  • BWT Ozone also manufactures our own venturi injectors ranging in size from 1/4 inch, 1/2 inch, 3/4 inch, 1 inch, 1.5 inch and 2 inch in diameter. You will need to choose the correct size venturi for your hot tub to plumb into. Injectors are sold separately.
  • Quick Installation and Start-Up!

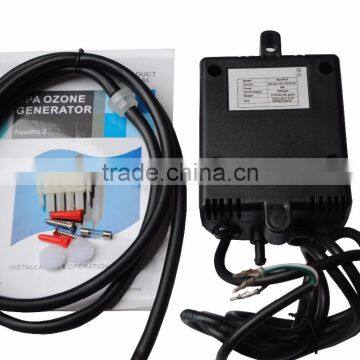

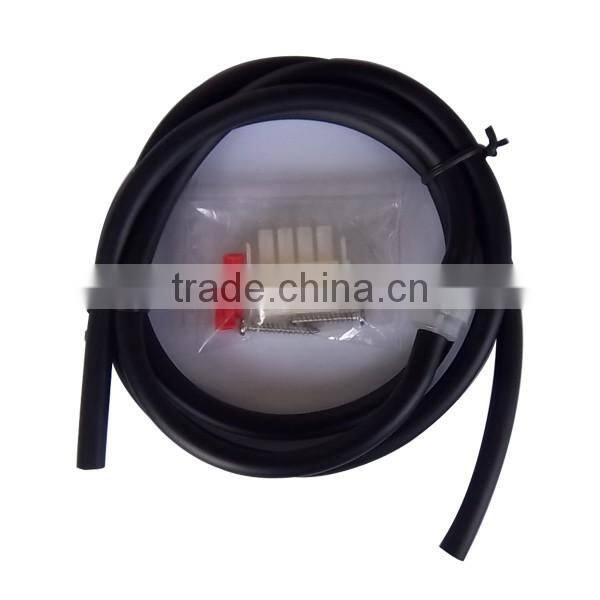

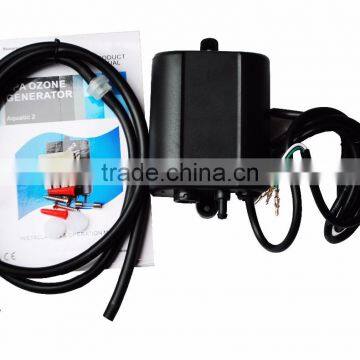

  • The Aquatic 2 is pre-assembled and ready to install. User manual, check valve, 5 feet of tubing, four hose ties and two screws and plastic anchor for mounting are all included in the Aquatic 2 package.
  • Aquatic 2 features a universal plug-type
  • The Aquatic 2 features a universal plug-type meaning that it can be wired one way for 110v and another for 240v. The user manual provides a complete wiring diagram and instructions.
  • Enjoy crystal clear water with easy maintenance!
  • BWT Ozone recommends running the Aquatic 2 on a 6hr/day ozone cycle in accordance to your hot tub pump timer. The following table shows anticipated longevity of the Aquatic 2 in accordance to daily run-times: 2hr/day= 3 years 3hr/day=2 years 6hr/day= 1 year Individual pump times may vary according to user preference.



Company Information

home appliance water machine 300mg bathtubs jacuzzi ozone water treatment

  • Bluegrass Water Technology(Shenzhen)Co.,Ltd is located in Shenzhen, China, the north of Hongkong
  • Business type: manufacturer, factory, trading company
  • Certification: CE Certification, EMC, CE
  • USA Design and engineering technologies
  • Professional design team
  • Corona Discharge Technology
  • Quality Control: Test unit in each workshop,the defective rate is less than 2%
  • Main product: ozone air purifier, ozone water treatment, multi functional ozone generator, spa and hot tub ozonator, ozone accessories, including venturi injector, air dryer, air compressor, ozone plate, ozone tube and transfer,etc.
  • Design and manufacture water desalination plants, reverse osmosis(RO) and water ultra filtration(UF) systems, as well as de-ionized (DI-water) plants and water floor heating systems.
  • Marketing and sales force in the USA and Europe
Contact Us

home appliance water machine 300mg bathtubs jacuzzi ozone water treatment

Related Products

home appliance water machine 300mg bathtubs jacuzzi ozone water treatment  home appliance water machine 300mg bathtubs jacuzzi ozone water treatmenthome appliance water machine 300mg bathtubs jacuzzi ozone water treatment  home appliance water machine 300mg bathtubs jacuzzi ozone water treatment

FAQ



  • What's the MOQ?

     The MOQ is 1 pcs, the sample price will be delivered in 2 days when the payment confirmed.

  • What's your best price?

      We have detail price list based on the quantity you order, pls contact us any time.

  • Do you have different plugs for countries?

      Yes, we will confirmed the voltage, plug and address with buyer before shipment.

  • Do you have quality control?

      Yes, we have ozone measuring instrument in every workshop, to measure the power, ozone concentration and unit function. Our defective rates is less than 2%.

  • What's your warranty time?

      One year limited warranty, any problem with the units, pls ship the item back(buyer charge), we help you repair it.
