Specifications
1)Home, office, medical and industrial use
2)Exquisite design
3)High quality and efficiency
4)Smart control
5)durability

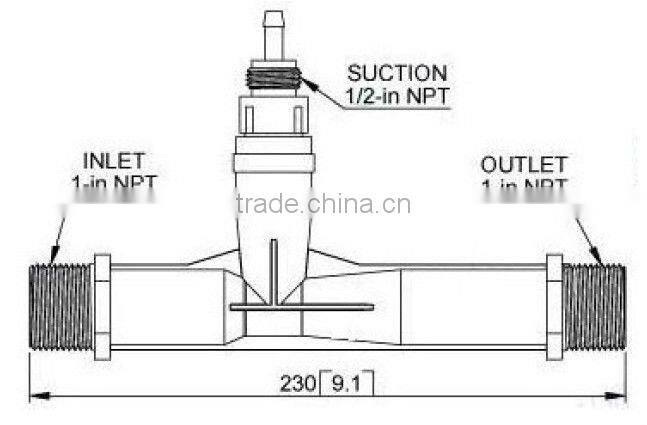

Ozone Venturi
For
Pool, Spa, Hot Tub, Water treatment, Aquarium, Fish Tank,
FishPond, Pond Aeration, Agriculture Forestry
Aerator, Aeration, And Lab Application.
MAKE YOUR OWN POOL, SPA & HOT TUB OZON
INJECTION MAFIFLOD
AND
We have in stock other size venturi:
1- 1/4 inch 2- 1/2 inch 3- 3/4 inch 4- 1 inch 5- 1.5 inch 6- 2 inch
|
What and injector does and How a Injector Works? When pressurized water enters the injector inlet, it is constricted toward the injection chamber and changes into a high-velocity jet stream. The increase in velocity through the injection chamber results in a decrease in pressure, thereby enabling an additive material to be drawn through the suction port and entrained into the water stream. As the jet stream is diffused toward the injector outlet, its velocity is reduced and it is reconverted into pressure energy (but at a pressure lower than injector inlet pressure). |
These Injectors are extremely efficient. They operate only a minimal pressure differential between the inlet and outlet sides to initiate a vacuum at the suction port.
Special Features
|
|
|
