China Ungalvanized Steel Wire Rope 6x19W
US$ 1,066 - 1,066
MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Steel Grade:
60#65#70#
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
8~30mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier 6x25Fi Ungalvanized Steel Wire RopeUS$ 1,075 - 1,133MOQ: 5 Metric Tons -
Made in China 6x26WS Ungalvanized Steel Wire Rope for Ordinary UseUS$ 1,075 - 1,133MOQ: 5 Metric Tons
-
China 6x31WS Ungalvanized Steel Wire RopeUS$ 1,075 - 1,133MOQ: 5 Metric Tons
-
Ungalvanized Steel Wire Rope 6x37US$ 1,075 - 1,133MOQ: 10 Metric Tons
-
8X19S Ungalvanized Steel Wire Rope China ManufacturerUS$ 1,075 - 1,133MOQ: 5 Metric Tons
Steel Grade
60#65#70#
Standard
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge
8~30mm
Place of Origin
Hebei, China
Type
Other, round
Application
Other, hauling in machinery, architectural, tugging, shipping fishery,etc
Alloy Or Not
Non-alloy
Model Number
6x19w+FC/6x19w+IWS/6x19w+IWR
Brand Name
JINBAO
Specifications
Executive standard:GB8918-2006 or according to requirement of customersSpecifications:8mm~30mm
Product Description

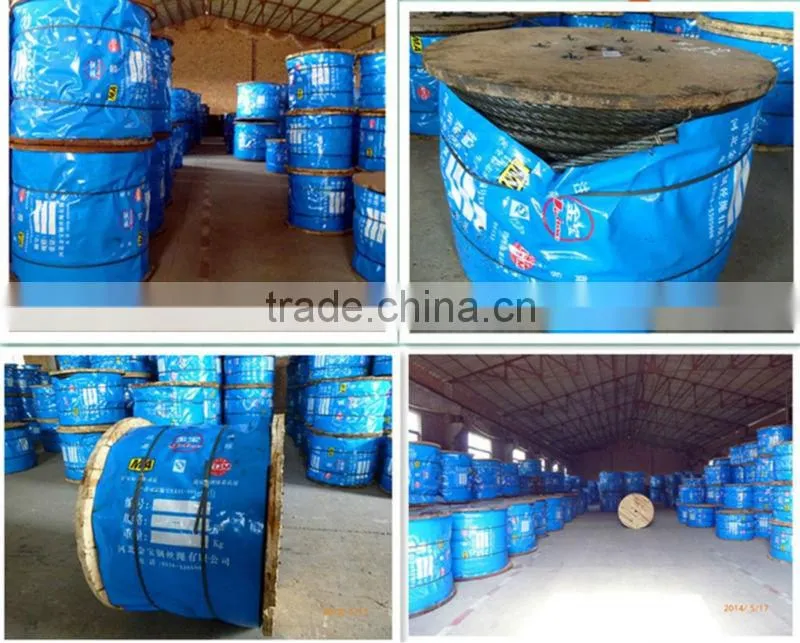

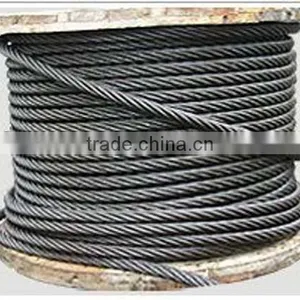

China ungalvanized steel wire rope 6x19W
It is mainly used for hauling in machinery, architectural, tugging, shipping fishery, lifting of goods.
Executive standard: GB8918-2006 BS302 RR-W-410E ASTM A 1023/ADIN3051 JIS G 3525 EN 12385-4:2002
Specifications:Φ8mm~Φ30mm
| 6*19 | |||||||||||
| Nominal Diameter/ mm | Weight /(kg/100m) | Tensile Strength/Mpa | |||||||||
| 1570 | 1670 | 1770 | 1870 | ||||||||
| natural fiber core | synthetic fiber core | steel core | fiber cre | steel core | fiber core | steel core | fiber core | steel core | fiber core | steel core | |
| 3 | 3.16 | 3.1 | 3.6 | 4.34 | 4.69 | 4.61 | 4.99 | 4.89 | 5.29 | 5.17 | 5.59 |
| 4 | 5.62 | 5.5 | 6.4 | 7.71 | 8.34 | 8.2 | 8.87 | 8.69 | 9.4 | 9.19 | 9.93 |
| 5 | 8.78 | 8.6 | 10 | 12 | 13 | 12.8 | 13.9 | 13.6 | 14.7 | 14.4 | 15.5 |
| 6 | 12.6 | 12.4 | 14.4 | 17.4 | 18.8 | 18.5 | 20 | 19.6 | 21.2 | 20.7 | 22.4 |
| 7 | 17.2 | 16.9 | 19.6 | 23.6 | 25.5 | 25.1 | 27.2 | 26.6 | 28.8 | 28.1 | 30.4 |
| 8 | 22.5 | 22 | 25.6 | 30.8 | 33.4 | 32.8 | 35.5 | 34.8 | 37.6 | 36.7 | 39.7 |
| 9 | 28.4 | 27.9 | 32.4 | 39 | 42.2 | 41.6 | 44.9 | 44 | 47.6 | 46.5 | 50.3 |
| 10 | 35.1 | 34.4 | 40 | 48.2 | 52.1 | 51.3 | 55.4 | 54.4 | 58.8 | 57.4 | 62.1 |
| 11 | 42.5 | 41.6 | 48.4 | 58.3 | 63.1 | 62 | 67.1 | 65.8 | 71.1 | 69.5 | 75.1 |
| 12 | 50.5 | 50 | 57.6 | 69.4 | 75.1 | 73.8 | 79.8 | 78.2 | 84.6 | 82.7 | 89.4 |
| 13 | 59.3 | 58.1 | 67.6 | 81.5 | 88.1 | 86.6 | 93.7 | 91.8 | 99.3 | 97 | 105 |
| 14 | 68.8 | 67.4 | 78.4 | 94.5 | 102 | 100 | 109 | 107 | 115 | 113 | 122 |
| 16 | 89.9 | 88.1 | 102 | 123 | 133 | 131 | 142 | 139 | 150 | 147 | 159 |
| 18 | 114 | 111 | 130 | 156 | 169 | 166 | 180 | 176 | 190 | 186 | 201 |
| 20 | 140 | 138 | 160 | 193 | 208 | 205 | 222 | 217 | 235 | 230 | 248 |
| 22 | 170 | 166 | 194 | 233 | 252 | 248 | 268 | 263 | 284 | 278 | 300 |
| 24 | 202 | 198 | 230 | 278 | 300 | 295 | 319 | 313 | 338 | 331 | 358 |
| 26 | 237 | 233 | 270 | 326 | 352 | 346 | 375 | 367 | 397 | 388 | 420 |
| 28 | 275 | 270 | 314 | 378 | 409 | 402 | 435 | 426 | 461 | 450 | 487 |
| 30 | 316 | 310 | 360 | 434 | 469 | 461 | 499 | 489 | 529 | 517 | 559 |
| 32 | 359 | 352 | 410 | 494 | 534 | 525 | 568 | 557 | 602 | 588 | 636 |
| 34 | 406 | 398 | 462 | 557 | 603 | 593 | 641 | 628 | 679 | 664 | 718 |
| 36 | 455 | 446 | 518 | 625 | 676 | 664 | 719 | 704 | 762 | 744 | 805 |
| 38 | 507 | 497 | 578 | 696 | 753 | 740 | 801 | 785 | 849 | 829 | 896 |
| 40 | 562 | 550 | 640 | 771 | 834 | 820 | 887 | 869 | 940 | 919 | 993 |
| 42 | 619 | 607 | 706 | 850 | 919 | 904 | 978 | 959 | 1040 | 1010 | 1100 |
| 44 | 680 | 666 | 774 | 933 | 1010 | 993 | 1070 | 1050 | 1140 | 1110 | 1200 |
| 46 | 743 | 728 | 846 | 1020 | 1100 | 1080 | 1170 | 1150 | 1240 | 1210 | 1310 |
Company Information

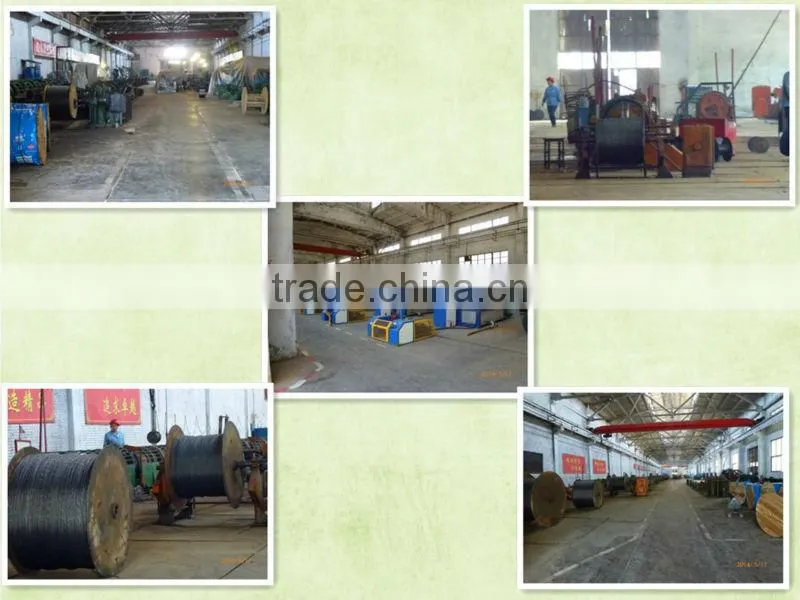

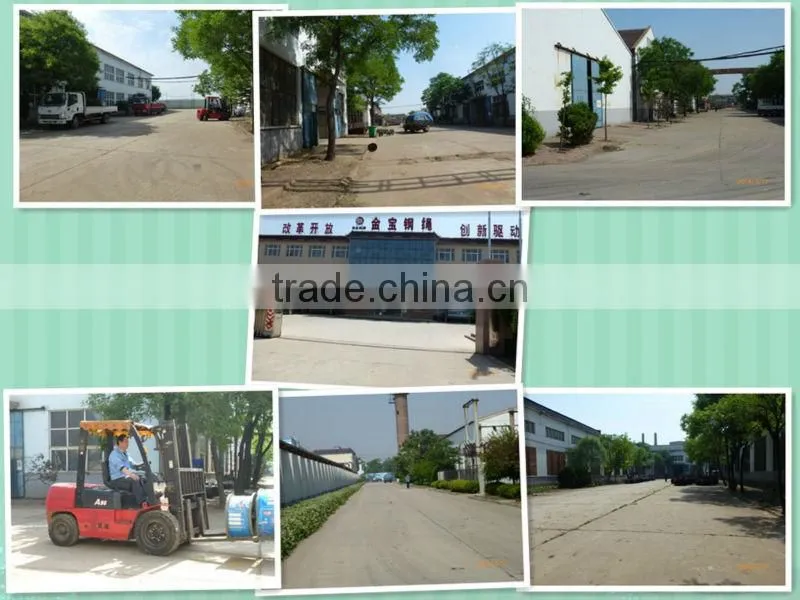

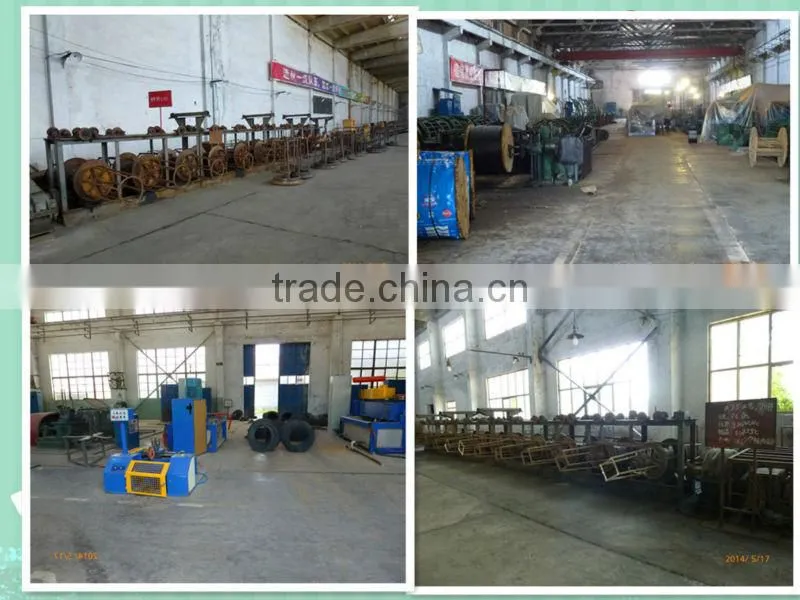

Our company is located in Gucheng County, Hengshui City, Hebei Province. We specialize in manufacturing steel wire, steel wire rope, steel strand, steel cord for radial tires, etc. Our production capacity amounts to 60,000 metric tons.
Our Services
We guarantee stable and timely supply, credible quality and sincere service, and our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
1,000-3,000 square meters
Total Employees
Fewer than 5 People
