Specifications
Executive standard:GB8918-2006 or according to requirement of customersSpecifications:9mm~40mm
Structure: 6x37+FC/6X37+IWR/6X37+IWS/6X37+IWRC
Specifications:Φ9mm~Φ40mm
Tensile strenght:1470~1870Mpa
Executive standard: GB8918-2006 BS302 RR-W-410E ASTM A 1023/ADIN3051 JIS G 3525 EN 12385-4:2002
Main application:
It is mainly used for hauling in machinery, architectural, tugging, shipping fishery, lifting of goods.
| Minimum breaking force | |||||||||
| Group | Category | weight coefficient K | K2/K1n | K2/K1p | Minimum breaking force coefficient K′ | K′2 K′1 | |||
| natural fiber core | synthetic fiber core | steel core | fiber core | steel core | |||||
| K1n | K1p | K2 | K′1 | K′2 | |||||
| kg/100m·mm2 | |||||||||
| 1 | 1*7 | - | 0.522 | - | - | - | 0.54 | - | |
| 1*19 | - | 0.507 | - | - | - | 0.53 | - | ||
| 1*37 | - | 0.501 | - | - | - | 0.49 | - | ||
| 2 | 6*7 | 0.351 | 0.344 | 0.387 | 1.1 | 1.12 | 0.332 | 0.359 | 1.08 |
| 3 4 | 6*19(a) 6*37(a) | 0.38 | 0.371 | 0.418 | 1.1 | 1.13 | 0.33 | 0.356 | 1.08 |
| 3 | 6*19(b) | 0.351 | 0.344 | 0.4 | 1.14 | 1.16 | 0.307 | 0.359 | 1.08 |
| 4 | 6*37(b) | 0.346 | 0.337 | 0.4 | 1.16 | 1.19 | 0.295 | 0.356 | 1.08 |
| 5 | 6*61 | 0.361 | 0.354 | 0.398 | 1.1 | 1.12 | 0.283 | 0.332 | 1.08 |
| 6 7 | 8*19 8*37 | 0.357 | 0.344 | 0.435 | 1.22 | 1.26 | 0.293 | 0.319 | 1.18 |
| 8 9 | 18*7 18*19 | 0.39 | 0.43 | 1.1 | 1.1 | 0.31 | 0.328 | 1.06 | |
| 10 | 34*7 | 0.39 | 0.43 | 1.1 | 1.1 | 0.308 | 0.318 | 1.03 | |
| 11 | 35W*7 | - | 0.46 | - | - | - | 0.36 | - | |
| 12 | 6*12 | 0.251 | 0.231 | - | - | - | 0.209 | - | - |
| 13 | 6*24 | 0.318 | 0.304 | - | - | - | 0.28 | - | - |
| 14 | 6*15 | 0.2 | 0.185 | - | - | - | 0.18 | - | - |
| 15 16 | 4*19 4*37 | 0.41 | - | - | - | 0.36 | - | - | |
Competitiveness
1)Cost-effective: you could get the high quality steel wire ropes with bottom price,"we are the factory"is why we can say it.Trust we can do what others can do.
2)Professional team:we are joint venture with Jizhong Energy Resources ,and we offer them steel wire ropes for years.we have a professional team to produce the steel wire ropes .
3)All products have been passed by ISO9001:2008
Quality speaks themselves! We invite you to have a try!

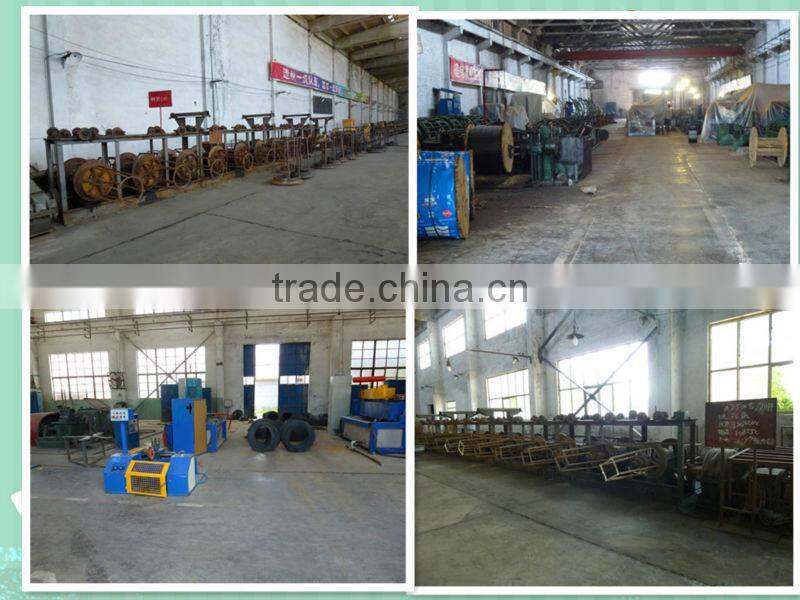

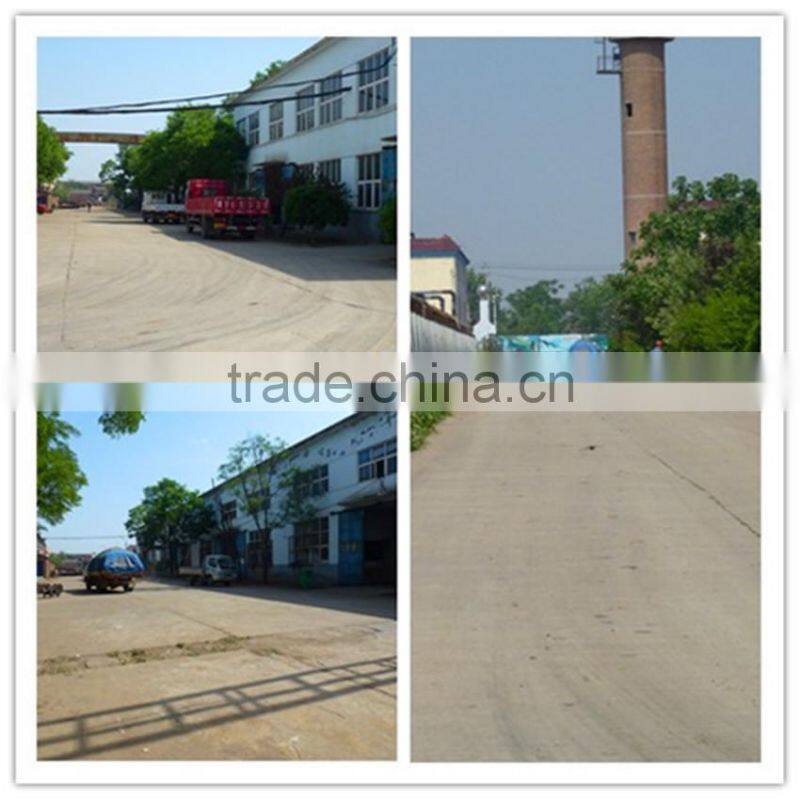

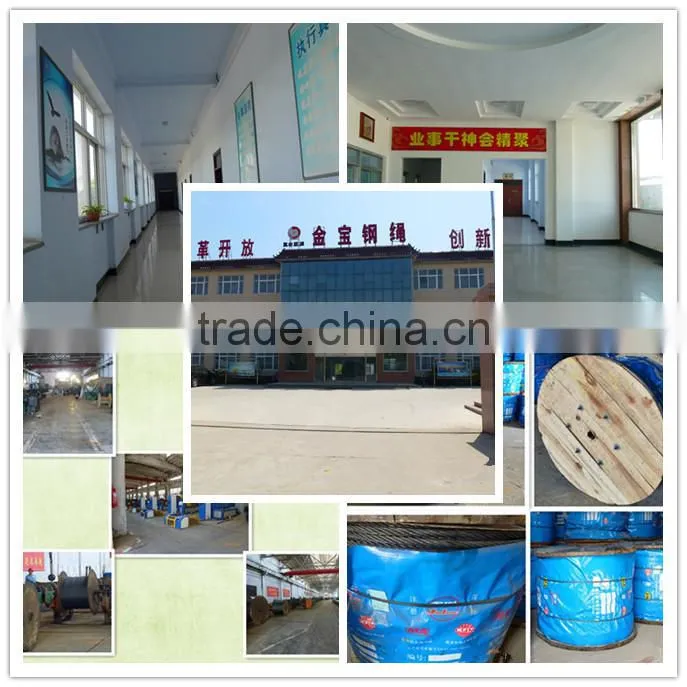

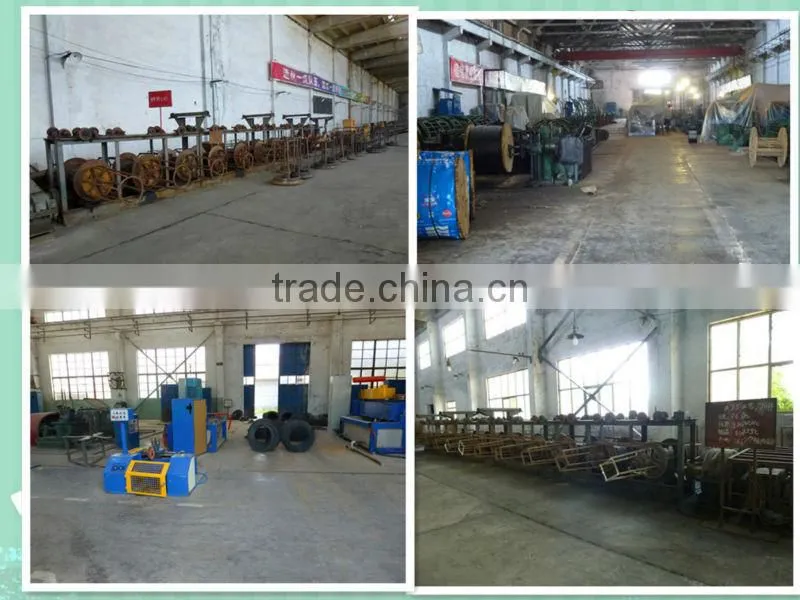

Our company is located in Gucheng County, Hengshui City, Hebei Province. We specialize in manufacturing steel wire, steel wire rope, steel strand, steel cord for radial tires, etc. Our production capacity amounts to 60,000 metric tons.
We guarantee stable and timely supply, credible quality and sincere service, and our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs. ...
