UL 1242 ANSI C80.6 gi conduit IMC conduit

FOB Price

USD $0.8 - $20 / Piece

5000 Pieces(Min.Order)

Supply Ability 18000000 Piece / Pieces per Month
Port XinGang TianJin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Thickness:	1.6, 4.06
Section Shape:	Round	Outer Diameter:	20.7 - 113.3 mm	Place of Origin:	Tianjin, China
Secondary Or Not:	Non-secondary	Application:	Other, calbe wire conduit,eclectrical conduit for wire and cables, RSC,EMT,IMC,Electrical conduit pipe,Cable Wire Conduit	Technique:	ERW
Certification:	UL	Surface Treatment:	Galvanized	Special Pipe:	EMT Pipe
Alloy Or Not:	Non-alloy

Product Description

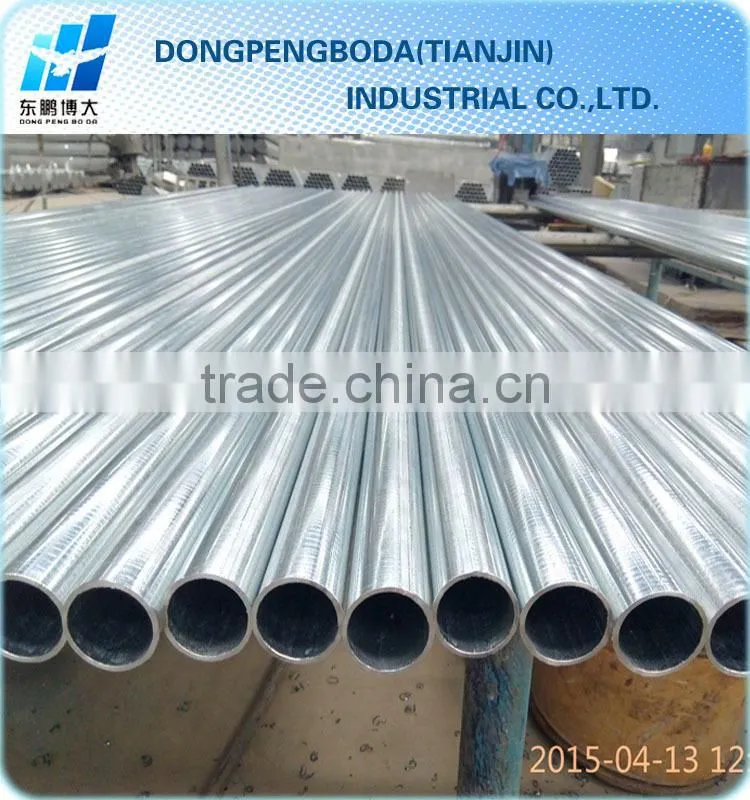

UL 1242 ANSI C80.6 Intermediate Metal Conduit (IMC)

Size:1/2"-4"

Material: steel

Intermediate Metal Conduit (IMC) is manufactured in accordance with:

>American National Standards for Steel. (ANSI C80.6)

>Underwriters Laboratories Standard for Electrical Metallic Tubing.(UL 1242).

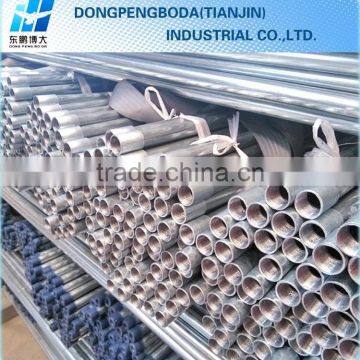

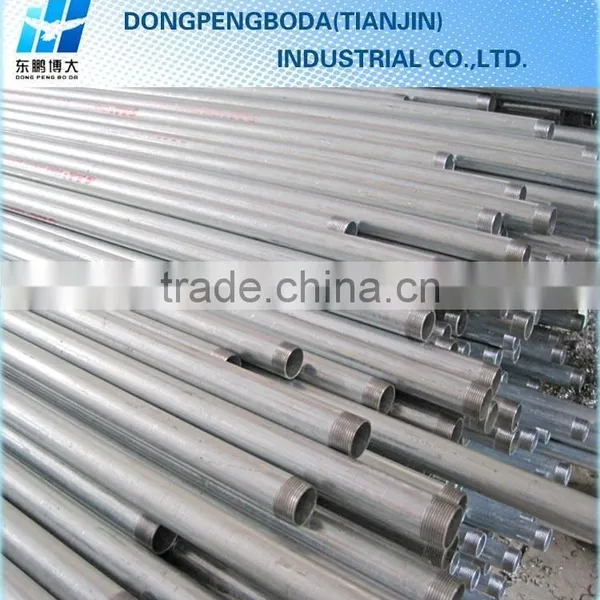

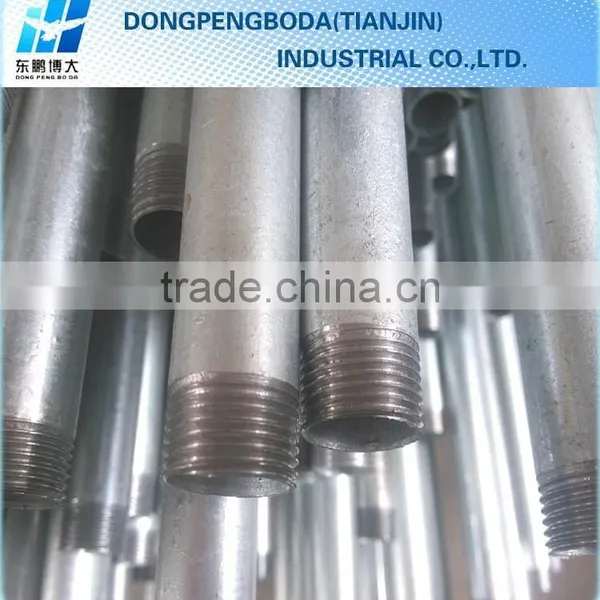

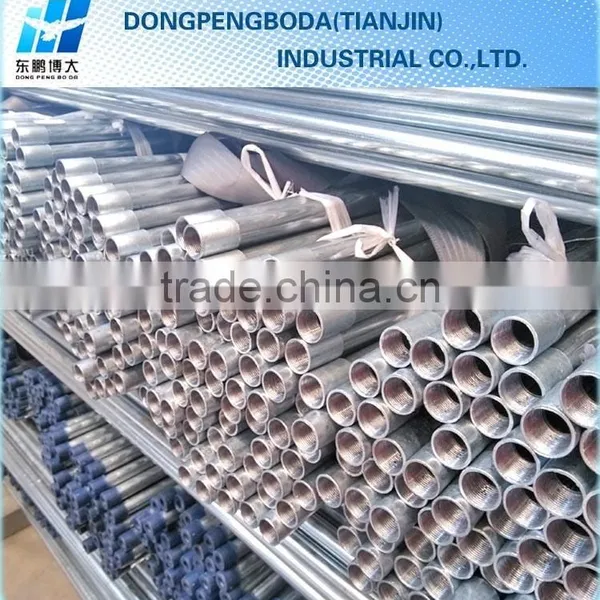

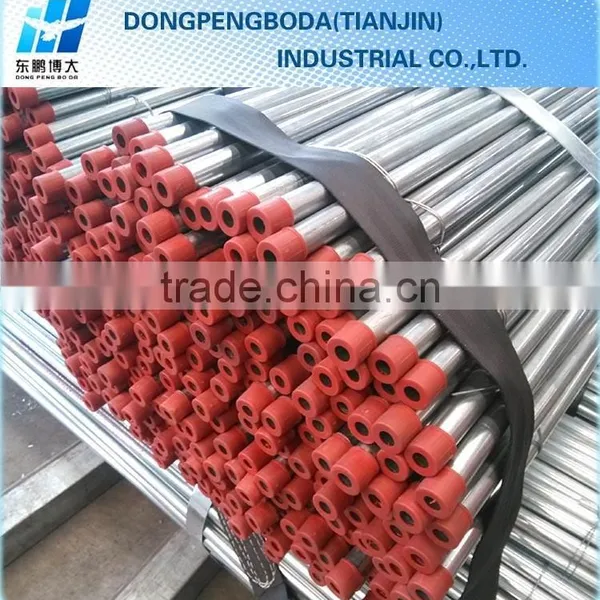

Intermediate Metal Conduit (IMC) is threaded on both ends, one end is with a steel coupling,and the other end is with a plastic cap to prot IMC conduit-UL1242 C80.6 ect the thread.

Surface: Hot-dip galvanized or Pre- galvanized

Finished:Hot-dip galvanized

IMC (Intermediate Metal Conduit) Dimensions and Weights
Nominal Diamension		Outside Diameter		Wall Thickness		Length		Weight
Nominal Diamension		Size		Size		Length		Weight
Inch	mm	Inch	mm	Inch	mm	FT	mm	KG/PC
1/2"	16	0.802	20.7	0.077	1.98	10	3050	2.78
3/4"	21	1.012	26.1	0.081	2.1			3.79
1"	27	1.271	32.8	0.091	2.35			5.38
1-1/4"	35	1.612	41.6	0.094	2.42			7.13
1-1/2"	41	1.853	47.8	0.098	2.54			8.65
2"	53	2.322	59.9	0.103	2.67			11.49
2-1/2"	63	2.814	72.6	0.157	4.06			18.1
3"	78	3.422	88.3	0.157	4.06			22.3
3-1/2"	91	3.911	100.9	0.157	4.06			25.6
4"	103	4.391	113.3	0.157	4.06			29.1

Dimensions for Thinwall Thickness

Finish:Pre-galvanized

Model	Trade Size designator		Nominal outside Dia.		Nominal Wall Thickness		Length
	U.S.	Metric	in.	mm	in.	mm	mm	mm
IMC-50	1/2"	16	0.815	20.7	0.07	1.79	3000	3050
IMC-75	3/4"	21	1.029	26.1	0.075	1.9	3000	3050
IMC-100	1"	27	1.29	32.77	0.085	2.15	3000	3050
IMC-125	1-1/4"	35	1.638	41.59	0.085	2.16	3000	3050
IMC-150	1-1/2"	41	1.883	47.82	0.09	2.29	3000	3050
IMC-200	2"	53	2.36	59.93	0.095	2.41	3000	3050
Model	Trade Size designator		Nominal outside Dia.		Nominal Wall Thickness		Length
	U.S.	Metric	in.	mm	mm		mm
IMC-50T	1/2"	16	0.815	20.7	1.6		3000
IMC-75T	3/4"	21	1.029	26.1	1.7		3000
IMC-100T	1"	27	1.29	32.77	2		3000
IMC-125T	1-1/4"	35	1.638	41.59	2		3000
IMC-150T	1-1/2"	41	1.883	47.82	2.1		3000
IMC-200T	2"	53	2.36	59.93	2.2		3000

Congeneric Product

UL 797 EMT BS4568 CONDUIT BS 31 CONDUIT UL 6 RSC
