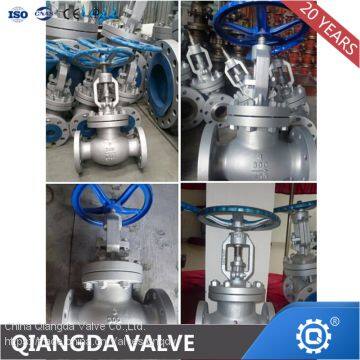

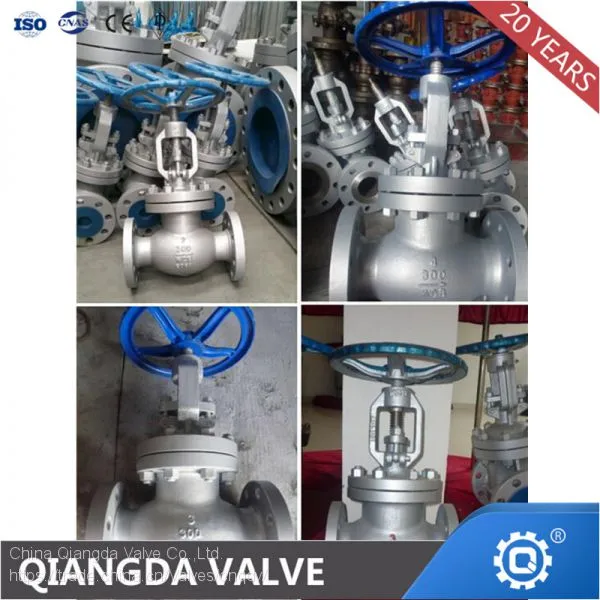

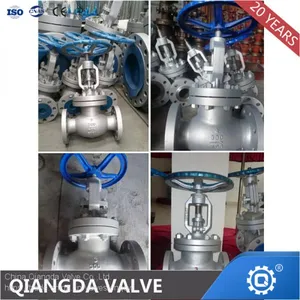

API6D ASTM A216 WCB Cast Steel Fugitive Emission Globe Valve

Features

• Meet design ANSI B16.5, B16.34, B16.10,B16.25 (for NPS≤24), MSS SP-44(for NPS>24), API-600

• Straight and Y patteren body design

• OS&Y,outside screw and yoke

• BB,Bolted bonnet

• Yoke intergral with bonnet

• Rising stem and handwheel

• Loose disc,choice of plug or ball

• Renewable seat ring or Body seat ring

• Impact handwheel for 10" & above

• Horizontal servece

• Flanged or buttwelding ends

• Normal Size: 2"~20"

• Pressure:150LB~2500LB

• Connection: Flanges,RTJ Flange,Butt Weld,Groove

• Material:Carbon Steel, Forged Steel

• Carbon Steel: ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217      C5, ASTM A217 C12, ASTM A217 C12A
  Stainless Steel: ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CM8, ASTM A890 GR4A, ASTM A890

• Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric  Actuator,      Hydraulic Actuator.

Standards

Steel Globe Design: API 600 / BS1873

Steel Valves: ASME B16.34

Face to Face according to: ASME B16.10

Flanges Ends according to: ASME B16.5

Butt Welding Ends according to: ASME B16.25

Inspection and Testing according to: API 598 / API 6D
