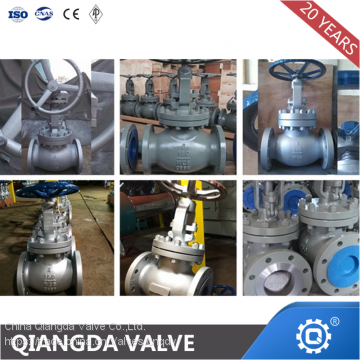

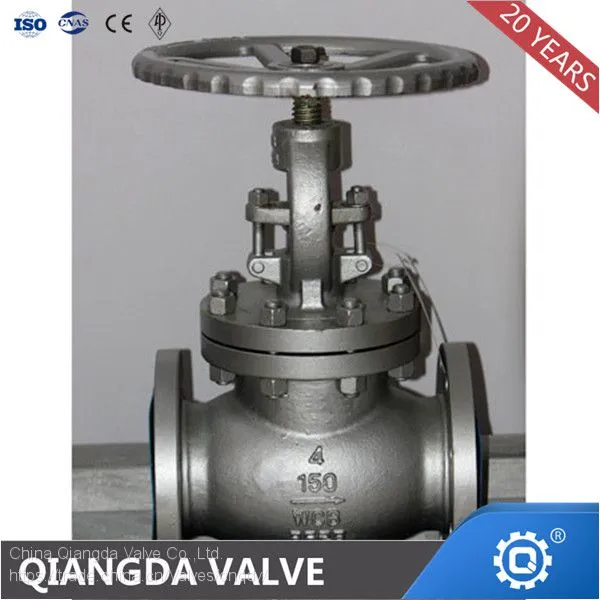

ANSI WCB A216 150LB 300LB 600LB Flanged End Globe Valve

BS 1873 Globe Valve

The globe valves are primarily used to modulate or regulate the volume of the flow.A globe valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop inherent to the design of a globe valve. This type of valve should always be installed so the flow intake enters through the base of the valve seat. The valve has an arrow stamped on the body to indicate the preferred direction on flow. Globe valves may be used with fluids containing particles in suspension ZAF globe valves body structure is available in cast steel.

The features of globe valve
Bolted Bonnet;Outside Screw and Yoke ;Rising stems;Metallic seating surfaces.
Body and Bonnet Connection
The body and bonnet of Class150~Class900 globe valves are usually bolted bonnet design .And the Class1500~Class2500 globe valves are usually of pressurized seal design.

Gasket of Cover Flange
Stainless steel + flexible graphite wounded gasket is used for Class 150 and Class 300 globe valve.Stainless steel + flexible graphite wounded gasket is used for Class ,and ring joint gasket is also optional for Class 600.Ring joint gasket is used for Class 900 globe valve.Pressurized seal design is used for Class 1500~Class 2500 globe valve.
Actuation
Hand wheel ,impact hand wheel and gear box is usually used for globle valve actuation.Chain wheel and electric acduator can be also used for globle valve actuation if being reguested by the customers.


Packing seal
Molded flexible graphite is used for packing material.PTFE or combined packing material can be also used if being requested by the customer.The internal surface of the stuffing box,of which area is contacted with the packing,is of excellent finish(Ra 3.2um).The stem surface ,contacting with the packing,should be rolled and pressed after being precisely machined,so as to reach to the high finish and compactness(Ra 0.8um)and ensure the reliable tightness of the stem area.
Belleville spring loaded packing impacting system
If being requested by the customer,the Belleville spring loaded packing impacting can be adopted for enhancing the durability and reliability of the packing seal.
Back seating design
All our globe valves have the back seating design.In most cases ,the carbon steek globe valve is fitted with a renewable back seat.For stainless steek globe valve,the back seat is machined directly in the bonnet or is machined after welding.When the globe valve is at fully open position,the sealing of the back seat can be very reliable.However,as per the requirement of API,it is not advisable to add or change packing by the mean of back seating when the valve is pressure containing.
Seat
For carbon steek globe valve,the seat is usually forged steel.The sealing surface of the seat is spray welded with hard alloy specified by the customer.Renewable threaded seat is used for NPS

OS&Y, Rising stem, Plug Disc
Bolted Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M,A351 CN7M
