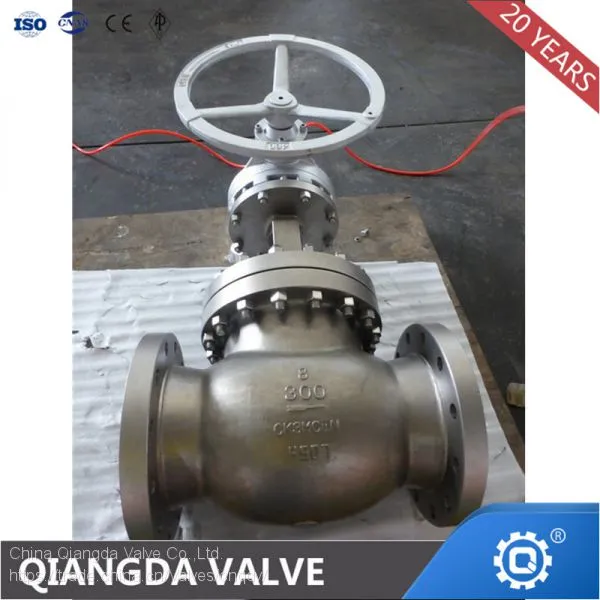

Help CenterBs1873 Cast Steel A216 Wcb Flanged Raised Face R.F Cl150 Lbs Globe Valve
Related Products
-
Bolted Bonnet Cast Steel Globe Valve With Handwheel OperatedUS$ 132 - 1056MOQ: 2 Sets -
High Pressure Sealed Bonnet Globe Valve With RF or Bw EndsUS$ 832 - 2056MOQ: 2 Sets
-
BS1873 Wcb/Wcc/Lcb/Lcc Bolted Bonnet Globe Valve for RF ConnectionUS$ 132 - 756MOQ: 2 Sets
-
API6D ASTM A216 WCB Cast Steel Fugitive Emission Globe ValveUS$ 115 - 856MOQ: 2 Sets
-
ANSI WCB A216 150LB 300LB 600LB Flanged End Globe ValveUS$ 231 - 856MOQ: 2 Sets
Stop valve with bellow seal acc.to ANSI is applicable to the cutting, switch and the adjustment of fluid. Medium that is used in various industries such as petroleum, chemical industry, pharmacy, Chemical fertilizer, electric power industry etc under nominal pressure of CLASS150-900LBS and working temperature of -29~350°C
Parabolic Plug for switch and the adjustment of fluid is available.
Features
This product has logical structure, reliable seal, excellent performance and nice design.
The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
The stem is quenched and tempered, and its surface is treated by nitrogen treatment, thus it is has good corrosion resistant and friction resistant.
It has double seal capability, thus is more reliable.
The stem may show the position of lift, thus it is clearer.
The part material, flange and butt weld end dimension may be selected according to current operating conditions and users' requirement, so that meet the requirements of various engineering.
Structural formation: BB-BG-OS&Y
Driving manner: Hand-operated, Electric-actuated
Specifications
Design: AP1600,AP16D
Face to face: ASME B16.10
Flange ends: ASME B16.5
Test&inspection:AP1598,AP16D
Size:1/2" - 18" or DN12 - DN450
Pressure: Class150 - Class1500 or PN16 - PN250
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
