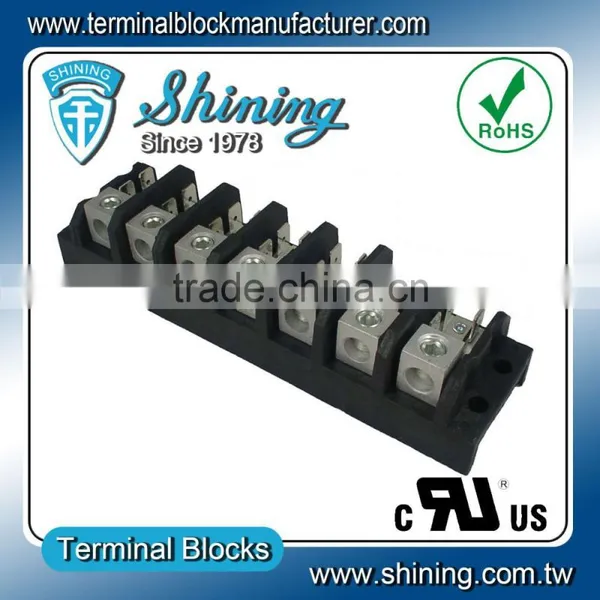

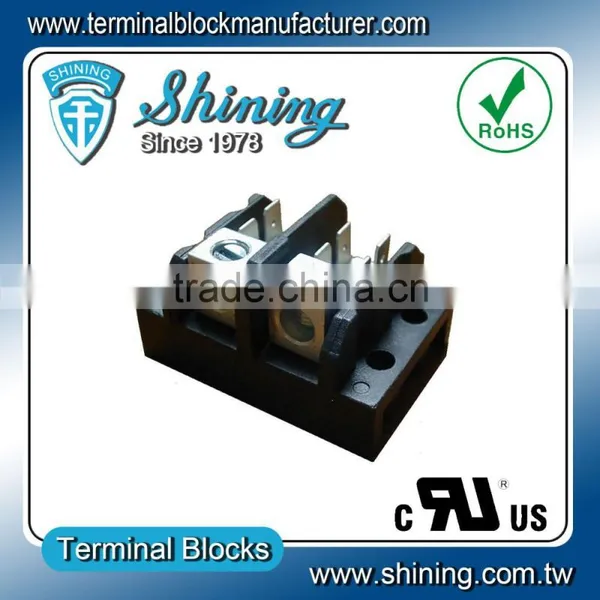

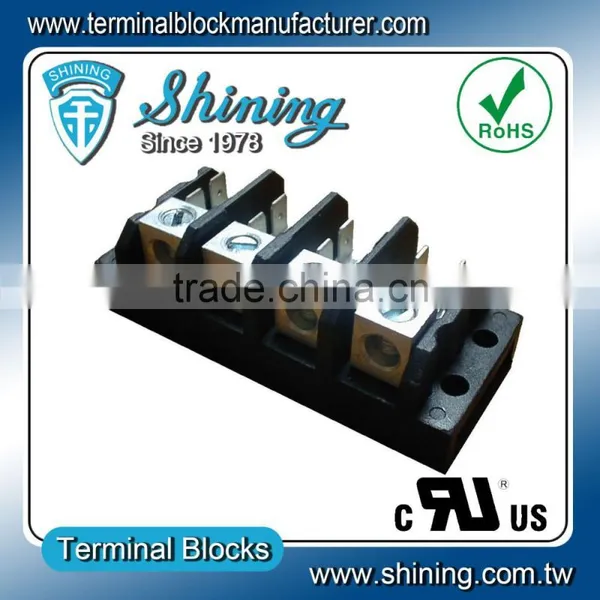

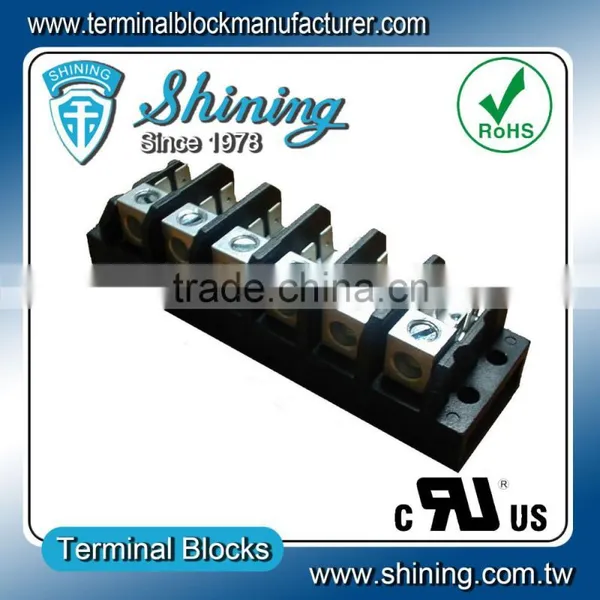

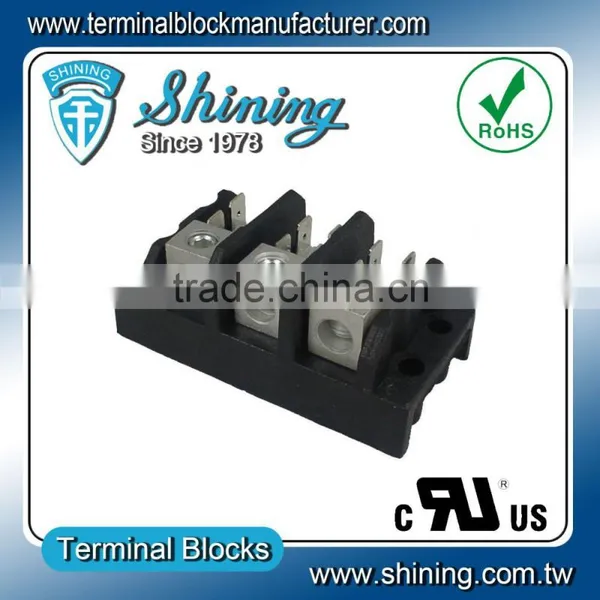

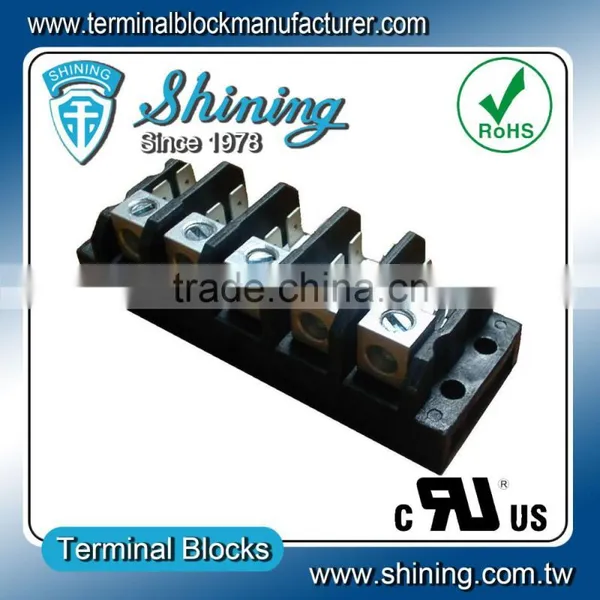

TGP-XXX-A Series 2~12 Pole Electrical Power Distribution Terminal Block

TGP-050-02A / TGP-050-03A / TGP-050-04A / TGP-050-05A / TGP-050-06A / TGP-050-07A / TGP-050-08A / TGP-050-09A / TGP-050-10A / TGP-050-11A / TGP-050-12A

TGP-085-02A / TGP-085-03A / TGP-085-04A / TGP-085-05A / TGP-085-06A / TGP-085-07A / TGP-085-08A

See Table

Item Number: TGP-050-02A / TGP-050-03A / TGP-050-04A / TGP-050-05A / TGP-050-06A / TGP-050-07A / TGP-050-08A / TGP-050-09A / TGP-050-10A / TGP-050-11A / TGP-050-12A

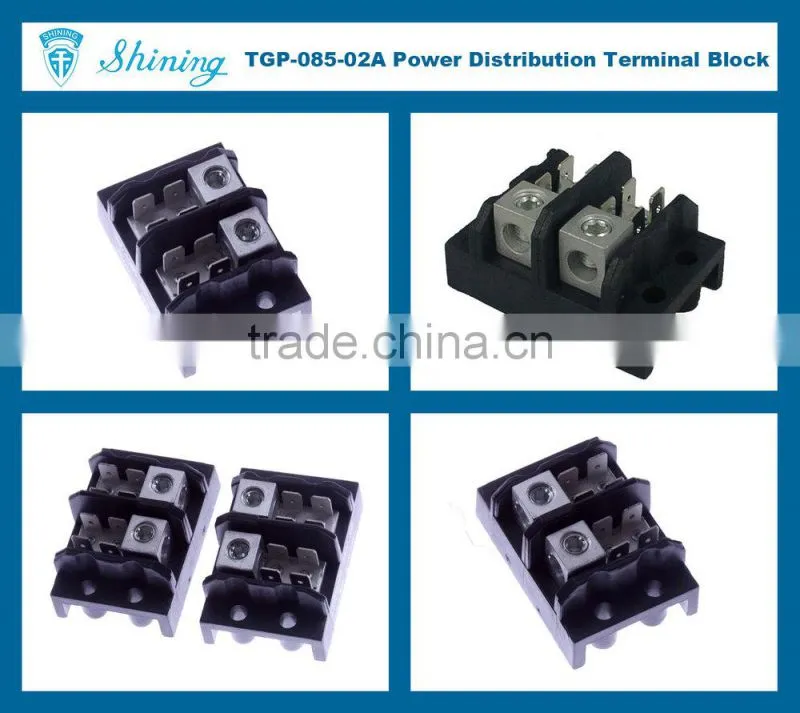

                       TGP-085-02A / TGP-085-03A / TGP-085-04A / TGP-085-05A / TGP-085-06A / TGP-085-07A / TGP-085-08A

Rated Voltage: 600V

Rated Current: 50A / 85A

Install Type: Panel Mounted. Din Rail is not required

Pole: 2~12 Pole / 2~8 Pole

Characteristic:

1. Screw: A= Hexagon Socket Set Screw ; A1= Slotted Set Screw

2. Screw Material: Blank= Steel; SS= Stainless Steel

3. With 4 Way Quick Connector per Pole. (Input: 1 Way ; Output: 4 Way)

Certificate: RoHS. UL / cUL Approval

Shining E&E Industrial Co., Ltd, announces the addition of the TGP-A Series to their already extensive line of Power Terminal Blocks. This Terminal Block is unique for the Lighting and HVAC industries as it offers a Multi pole application.

The TGP-050-XXA Series is also UL and cUL Certified, and up to 600 volts and 50 amps. Entrance wire range #6-16 AWG

The TGP-085-XXA Series is also UL and cUL Certified, and up to 600 volts and 85 amps. Entrance wire range #2-14 AWG
These series of Terminal Blocks offers a wide range of Terminals and Connectors suited for field wiring with internal circuits. The construction of the block includes built-in ribs on the bottom side of the block for added strength and durability

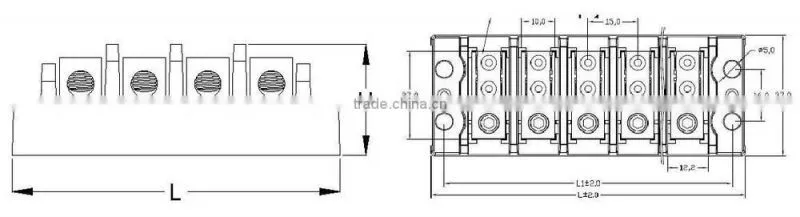

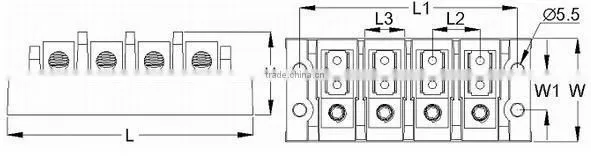

Ref. Width (W1) [inch]

Ref. Width (W1) [inch]

Ref. Width (W1) [inch]

Input: 2.0-33.0 mm² / Output: 0.5-5.0 mm²
