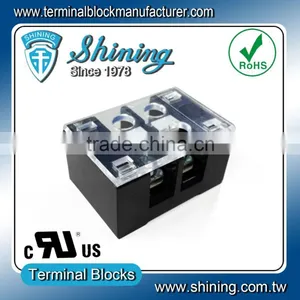

TB-3XXYYCP Series Panel Mount 15A-25A-35A 300V Fixed Terminal Block
US$ 0.1 - 5
MOQ: 1 Carton
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SHINING
Model Number:
TB-31502CP ~ TB-33515CP
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TGP-XXX-B Series 2~12 Pole Electrical Power Splicer Terminal BlockUS$ 0.1 - 5MOQ: 1 Carton -
TA-Series Any Pole Assembly 10~400A Din Rail Mounted Terminal BlockUS$ 0.1 - 5MOQ: 1 Carton
-
TC-Series 15A 20A 50A 65A Thermocouple Porcelain Ceramic Terminal BlockUS$ 0.1 - 5MOQ: 1 Carton
-
TD-Series Taiwan Din Mount Deck Double Level Layer Terminal BlockUS$ 0.1 - 5MOQ: 1 Carton
-
TE-Series Insulated Plastic Assembly 35mm Rail Mount Terminal BlockUS$ 0.1 - 5MOQ: 1 Carton
Place of Origin
Taiwan, China
Brand Name
SHINING
Model Number
TB-31502CP ~ TB-33515CP
Number of Contacts
Other, 2~15
Conductor Size
Other, AWG 22~8
Type
Screw
| TB-3XXYYCP Series Panel Mount 15A-25A-35A 300V Fixed Terminal Block |
| Gerneral Product Information | |
| Item number: | TB-31502CP~TB-33515CP |
| Rating: | 300V, 15A~35A, 2P~15P |
| Size: | See Table |
| Wire Size: | See Table |
| Screw Size: | See Table |

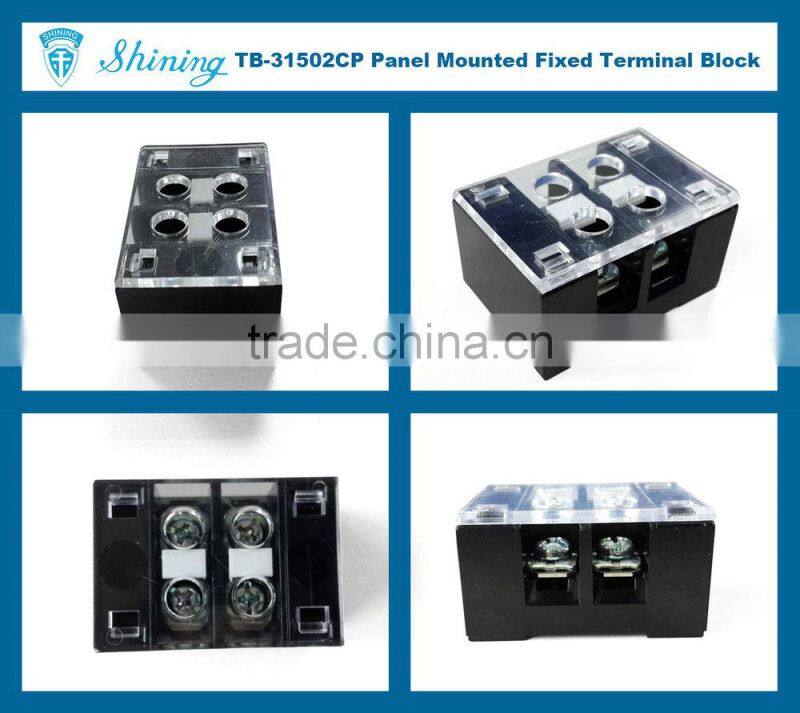

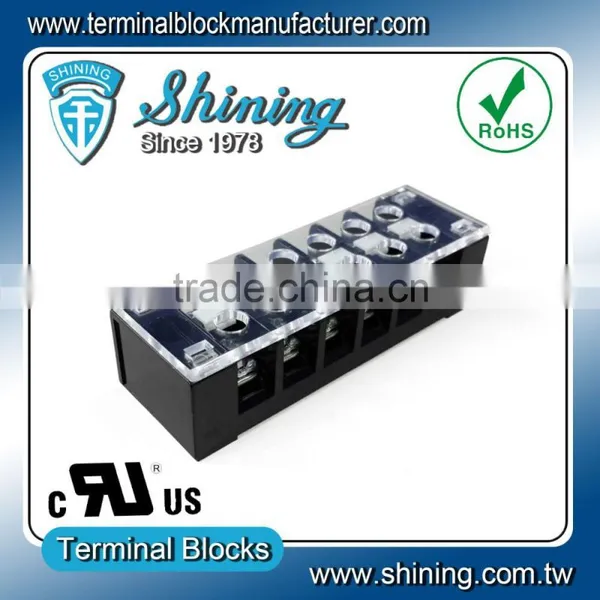

Product Photos |
Product Description
| Product Features |
|
Rated Voltage: 300V Rated Current: 15A / 25A / 35A Install Type: Panel Mounted. Din Rail is not required Pole: 2~15 Pole 1. Open a hole on Protective Cover. Easy to fasten the screw by screw driver. 2. Screw Material: C= Steel Screw; CP= Steel Screw With Pressure Plate; CU= Stainless Steel Screw; CPU= Stainless Steel Screw With Pressure Plate Certificate: UL /cUL Approved. TB-3XXYYCP Series Terminal Block are Panel Mounted Terminal Strip, the basic color is black. The product color can be changed according to the customer requirements. About this Terminal Block, the feature is Protective Cover. There are reserved install holes on both sides. Load current can be 15A / 25A / 35A. The products are with a Protective Cover, whose materials are PS, this makes the products are durable. |

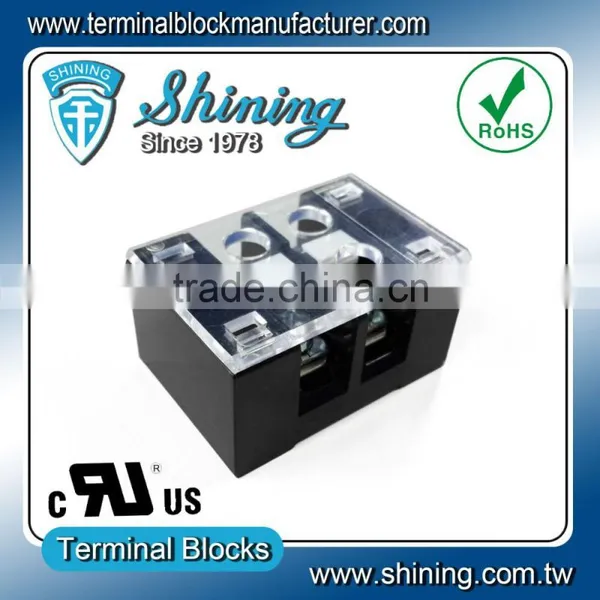

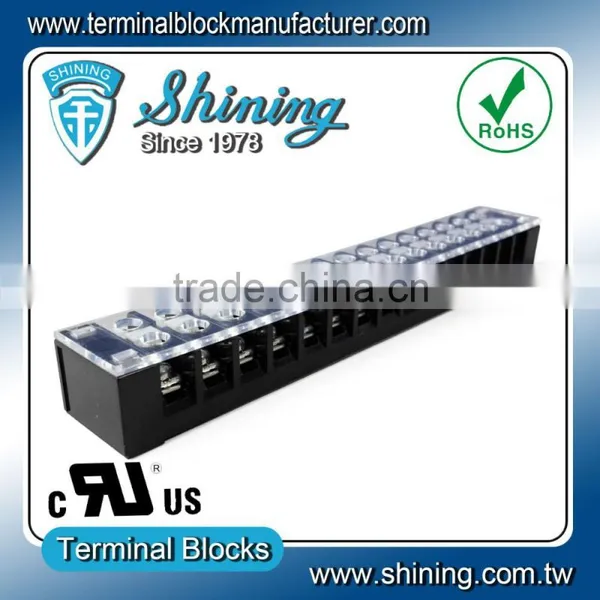

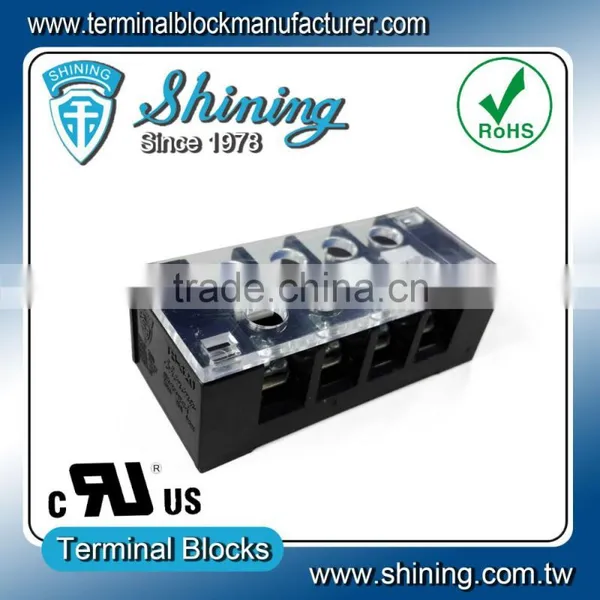

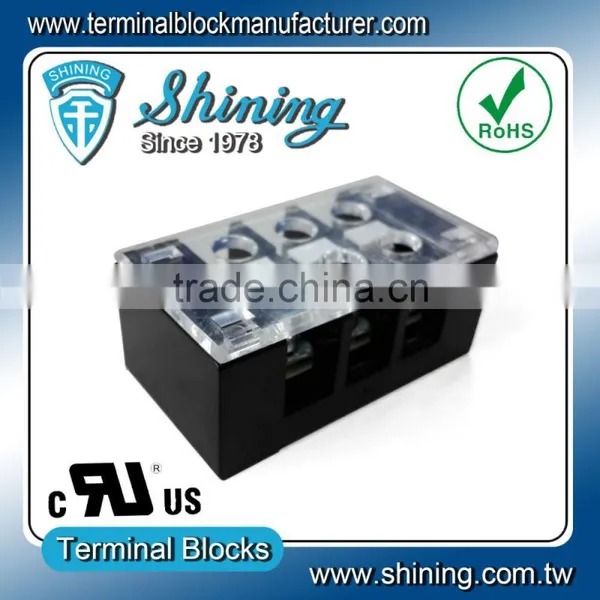

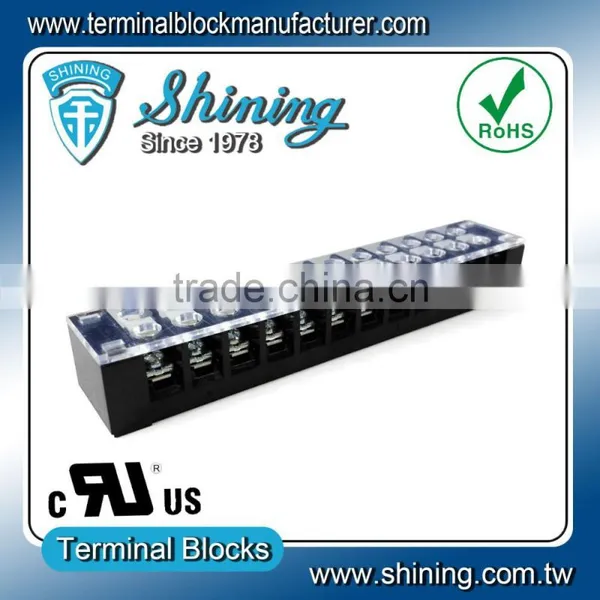

| Product Pictures |
|
||||||
| Item No. | TB-31502CP | TB-31503CP | TB-31504CP | TB-31505CP | TB-31506CP | TB-31507CP | TB-31508CP |
| Electrical Specifications | |||||||
| Rated Volt [V] | 300V | ||||||
| Rated Current [A] | 15A | ||||||
| Wire Size [mm2] | 2.0 mm2 |
||||||
| Wire Size [AWG] | AWG 14 | ||||||
| Materials | |||||||
| Insulator Materials | Thermoplastic | ||||||
| Color | Black (White, Blue, Red, Brown, ...) | ||||||
| Flam Retarded Grade | UL94V-0 | ||||||
| Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | ||||||
| Conductor | Copper, Tin Plated | ||||||
| Dimensions | Protective Cover come with terminal blocks for free. No Marker Strip need. | ||||||
| Total Length L [mm] | 36.6 | 46.1 | 55.7 | 65.2 | 74.7 | 84.2 | 93.8 |
| Ref. Length L1 [mm] | 26.8 | 36.3 | 45.8 | 55.3 | 64.9 | 74.4 | 83.9 |
| Gap A [mm] | 7.4 mm | ||||||
| Pitch B [mm] | 9.5 mm | ||||||
| Width W [mm] | 25.0 mm | ||||||
| Height H [mm] | 19.0 mm | ||||||
| Screw (C) (Steel, Zinc Plated) | M3 | ||||||
| Rated Torque [N-m] | 0.7 | ||||||
| Rated Torque [in-lb] | 6.0 | ||||||
| Pole | 2 | 3 | 4 | 5 | 6 | 7 | 8 |

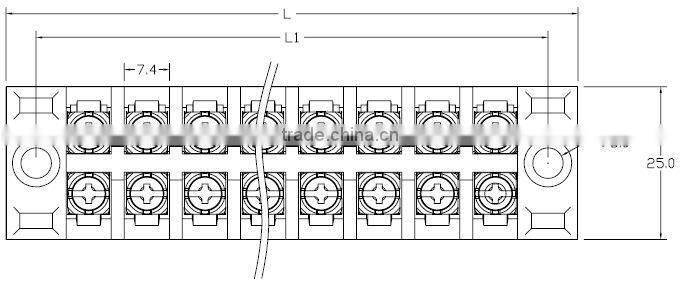

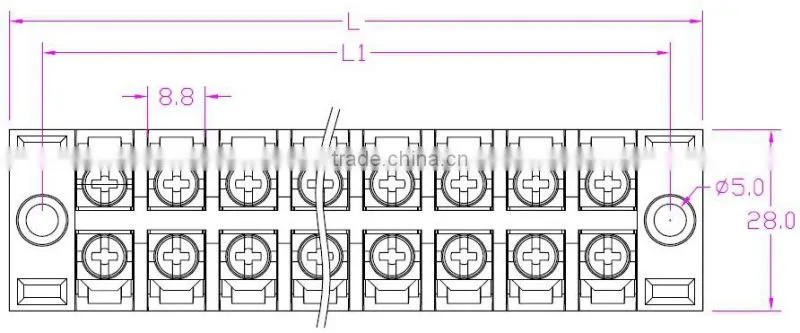

| Product Drawings | |
||||||
| Item No. | TB-31509CP | TB-31510CP | TB-31511CP | TB-31512CP | TB-31513CP | TB-31514CP | TB-31515CP |
| Electrical Specifications | |||||||
| Rated Volt [V] | 300V | ||||||
| Rated Current [A] | 15A | ||||||
| Wire Size [mm2] | 2.0mm2 | ||||||
| Wire Size [AWG] | AWG 14 | ||||||
| Materials | |||||||
| Insulator Materials | Thermoplastic | ||||||
| Color | Black (White, Blue, Red, Brown, ...) | ||||||
| Flame Retarded Grade | UL94V-0 | ||||||
| Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | ||||||
| Conductor | Copper, Tin Plated | ||||||
| Dimensions | Protective Cover come with terminal blocks for free. No Marker Strip need. | ||||||
| Total Length L [mm] | 103.3 | 112.8 | 122.3 | 131.9 | 141.4 | 150.9 | 160.4 |
| Ref. Length L1 [mm] | 93.4 | 103.0 | 112.5 | 122.0 | 131.5 | 141.1 | 150.6 |
| Gap A [mm] | 7.4 mm | ||||||
| Pitch B [mm] | 9.5 mm | ||||||
| Width W [mm] | 25.0 mm | ||||||
| Height [mm] | 19.0 mm | ||||||
| Screw (C) (Steel, Zinc Plated) | M3 | ||||||
| Rated Torque [N-m] | 0.7 | ||||||
| Rated Torque [in-lb] | 6.0 | ||||||
| Pole | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Product Pictures | |
||||||
| Item No. | TB-32502CP | TB-32503CP | TB-32504CP | TB-32505CP | TB-32506CP | TB-32507CP | TB-32508CP |
| Electrical Specifications | |||||||
| Rated Volt [V] | 300V | ||||||
| Rated Current [A] | 25A | ||||||
| Wire Size [mm2] | 6.0 mm2 |
||||||
| Wire Size [AWG] | AWG 10 | ||||||
| Materials | |||||||
| Insulator Materials | Thermoplastic | ||||||
| Color | Black (White, Blue, Red, Brown, ...) | ||||||
| Flam Retarded Grade | UL94V-0 | ||||||
| Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | ||||||
| Conductor | Copper, Tin Plated | ||||||
| Dimensions | Protective Cover come with terminal blocks for free. No Marker Strip need. | ||||||
| Total Length L [mm] | 40.6 | 51.7 | 62.8 | 73.9 | 85.0 | 96.1 | 107.2 |
| Ref. Length L1 [mm] | 30.4 | 41.5 | 52.6 | 63.7 | 74.8 | 85.9 | 97.1 |
| Gap A [mm] | 8.8 mm | ||||||
| Pitch B [mm] | 11.1 mm | ||||||
| Width W [mm] | 28.0 mm | ||||||
| Height H [mm] | 20.0 mm | ||||||
| Screw (C) (Steel, Zinc Plated) | M3.5 | ||||||
| Rated Torque [N-m] | 1.0 | ||||||
| Rated Torque [in-lb] | 8.0 | ||||||
| Pole | 2 | 3 | 4 | 5 | 6 | 7 | 8 |

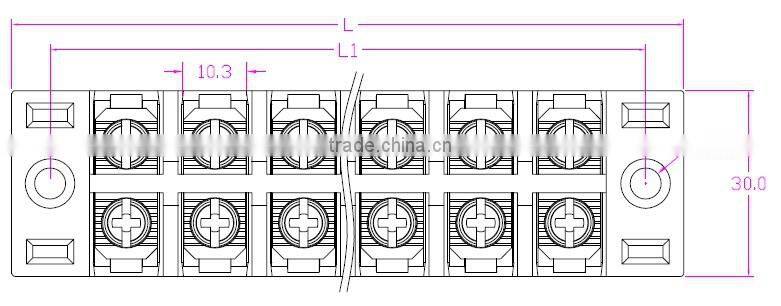

| Product Drawings | |
||||||
