TS-Series Bnc Cassette Type 15A 25A 35A 25mm Rail Terminal Block

Name: TS-Series Bnc Cassette Type 15A 25A 35A 25mm Rail Terminal Block
Brand: SHINING
SKU: 141871614
Availability: InStock

US$ 0.5 - 5 MOQ: 1 Carton

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

SHINING

Model Number:

TS-015/ TS-025/ TS-035

SHINING E&E INDUSTRIAL CO., LTD.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name SHINING

Model Number TS-015/ TS-025/ TS-035

Number of Contacts Other, Any

Conductor Size Other, AWG14~8

Type Screw

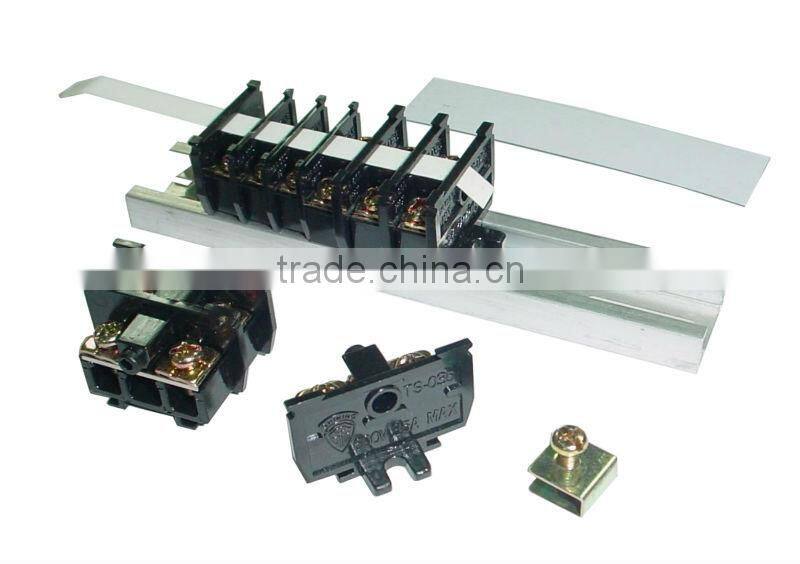

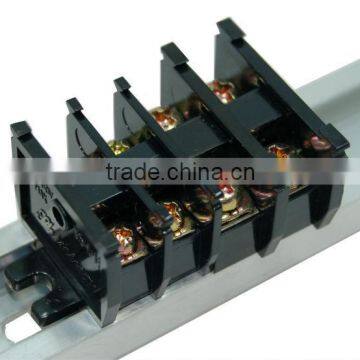

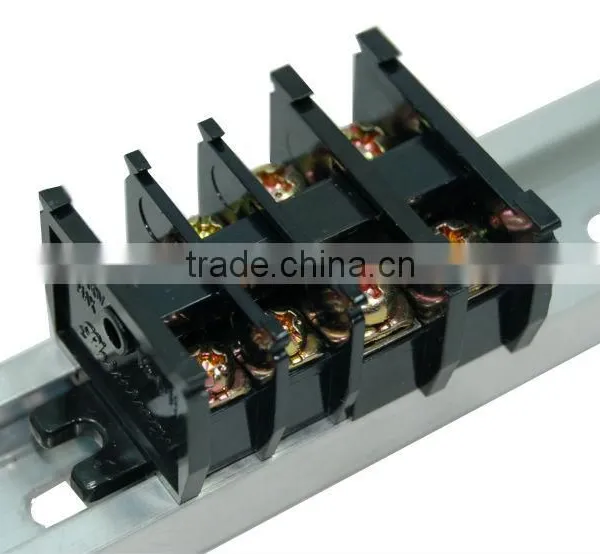

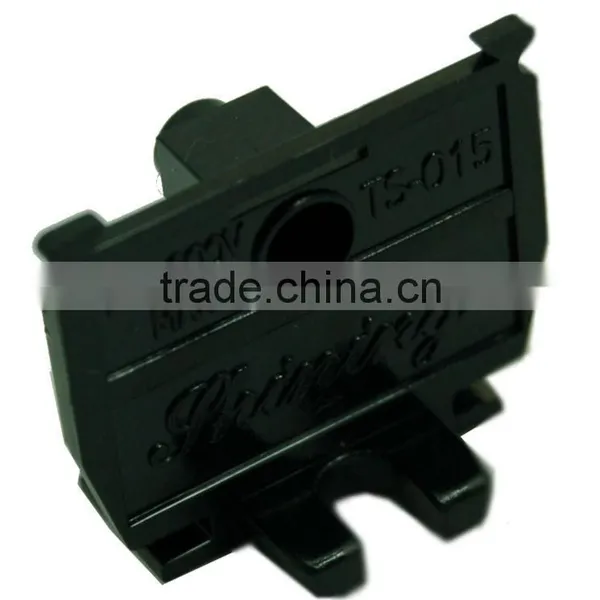

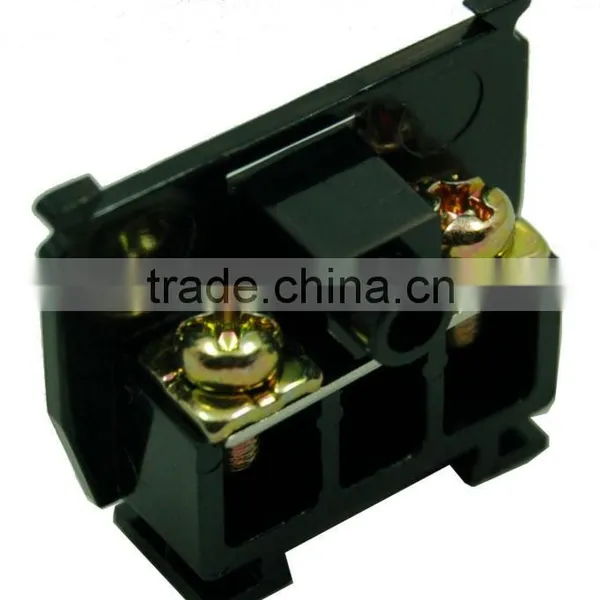

TS-Series Bnc Cassette Type 15A 25A 35A 25mm Rail Terminal Block

Product Description

•Item number: TS-015, TS-025, TS-035

•Rated Voltage: 600V

•Rated Current: 15A, 25A, 35A

•Pole: Any

•Molded from UL94-V2 material with excellent flame- and shock-resistance

•Scetional or one-piece construction. Easy and Flexible to form multipole assembly.

• Standard 25mm DIN Rail Mounting is available.

•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

•Paper Marker Strips & Transparent Cover come with products for free. Others are optional.

Our Services

•Webpage: TS Series 25mm Din Rail Mounted Terminal Block

Item No.	TS-015	TS-025	TS-035	TS series Pictures
Specifications / Dimensions
Total Length L [mm]	8.7*n+16.5	10.7*n+17	13.0*n+17
Ref. LengthL1 [mm]	8.7*n+10	10.7*n+9.5	13.0*n+10
Gap A [mm]	7	8	10
Pitch B [mm]	8.7	10.7	13.0
Ref. D [mm]	4.5	4.5	4.5
Width W [mm]	28	32	36
Ref Width W1 [mm]	12	12	12
Height H [mm]	24.2	24.2	24.2
Screw C	M3	M4	M4
Rated Torque [N-m]	0.5	1.2	1.2
Rated Torque [in-lb]	4.4	10.6	10.6
Poles/Positions (P)	Any (n: the Number of P)
Electrical Specifications
Rated Voltage [V]	600
Rated Current [A]	15	25	35
Wire Size [mm²]	2.5 mm²	6.0 mm²	10 mm²
Wire Size [AWG]	AWG 14	AWG 10	AWG 8
Materials
Insulator Materials	PC
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Temperature [⁰C]	-40⁰C~+110⁰C (Max: +220⁰C)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Accessories & Parts	Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
End Plate	TS-015EP	TS-025EP	TS-035EP
End Clamp	TS-0021, TS-002
DIN Mount Rail	TS-001 (25mm wide Rail)
Protective Cover	M-PCV-S015	M-PCV-S025	M-PCV-A010
Transparent Cover	M-CV-010
Paper Marker Strip	M-MKS-010 (-XXX: Length)
Mounting Rod [mm]	M-MRD-010S (-XXX: Length)
Remarks	TS-025-06P (6 poles assembly of TS-025)
