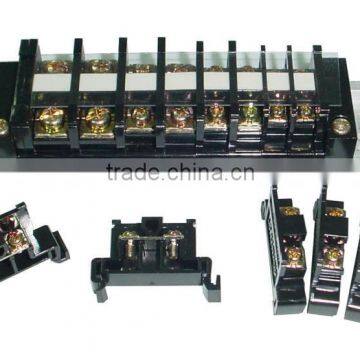

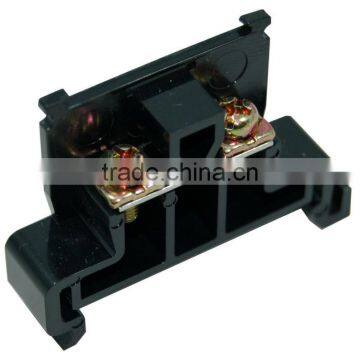

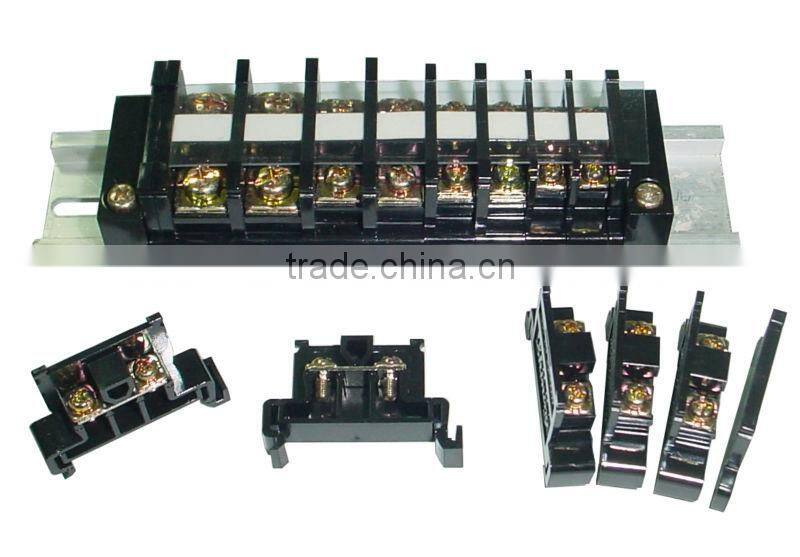

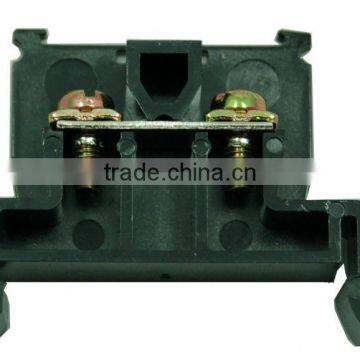

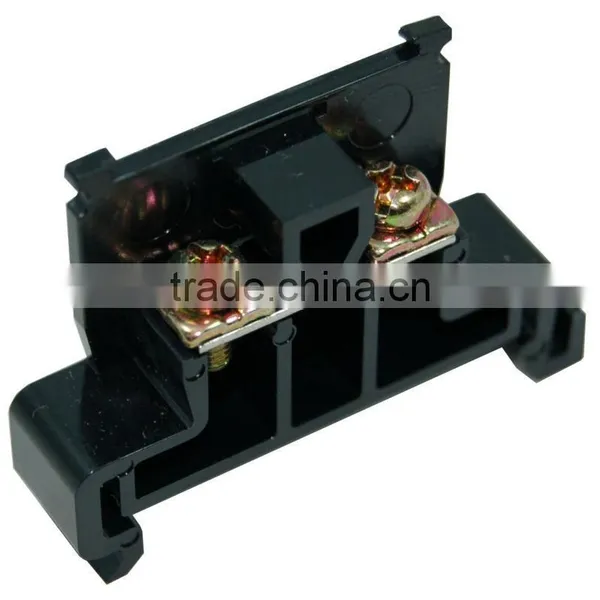

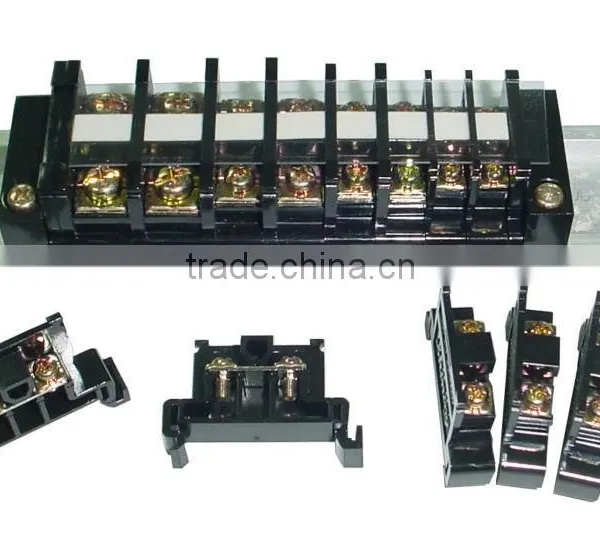

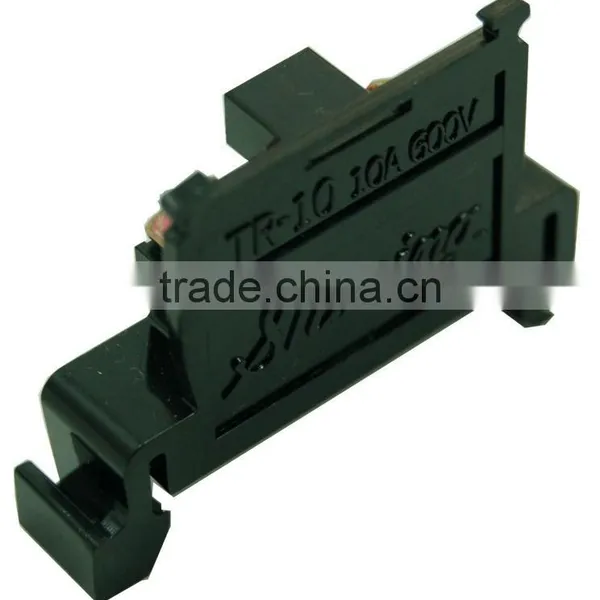

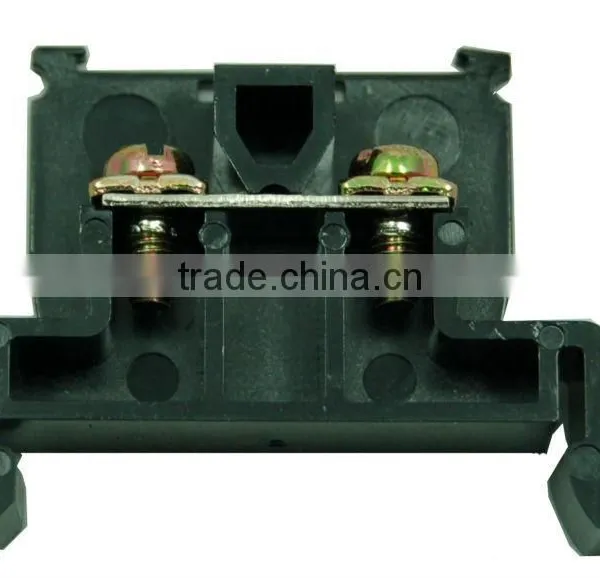

TR-Series Quick Release Assembly Din Rail Mounted Terminal Block
•Item number: TR-10, TR-20, TR-30, TR-40
•Rated Voltage: 600V
•Rated Current: 10A, 20A, 30A, 40A
•Pole: Any
•Molded from UL94-V2 material with excellent flame- and shock-resistance

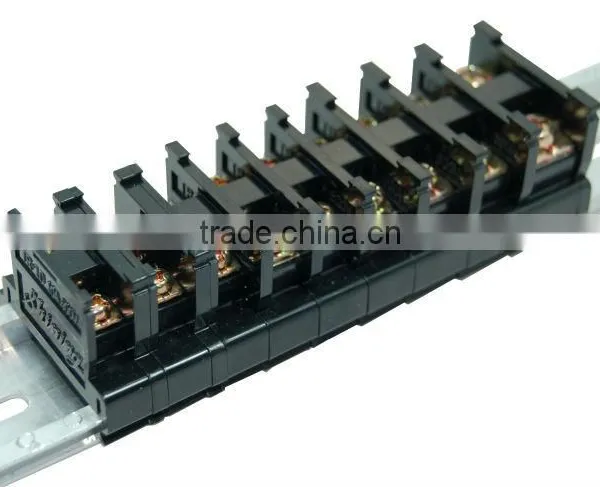

•Scetional or one-piece construction. Easy and Flexible to form multipole assembly.

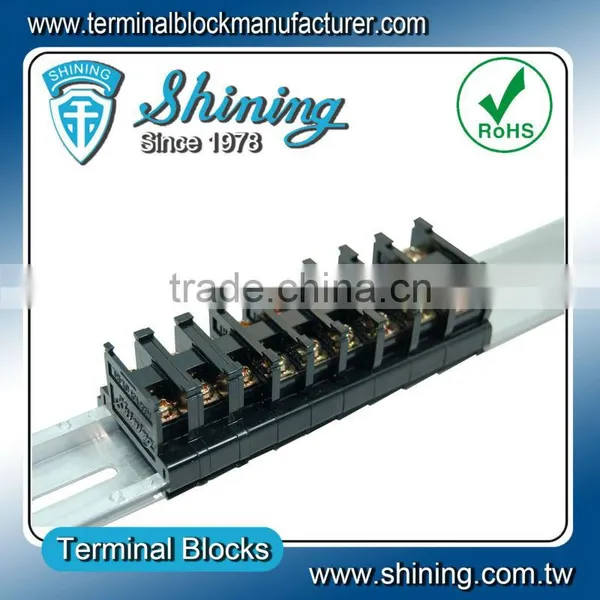

• Standard 35mm DIN Rail Mounting is available.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover.
•Webpage: TR Series Quick Assembly Din Rail Mounted Terminal Block
Item No. |
TR-10 | TR-20 | TR-30 | TR-40 | TR series Product Picture |
| Specifications |
|
||||
| Total Length L [mm] | 9*n+3 | 11*n+3 | 13*n+3 | 15*n+3 | |
| Ref. Length L1 [mm] | 9*n | 11*n | 13*n | 15*n | |
| Gap A [mm] | 7.5 | 8.5 | 10 | 12 | |
| Pitch B [mm] | 9 | 11 | 13 | 15 | |
| Width W [mm] | 42 | ||||
| Height H [mm] | 30 | ||||
| Screw C | M3 | M4 | M4 | M5 | |
| Rated Torque [N-m] | 0.5 | 1.2 | 1.2 | 2.0 | |
| Rated Torque [in-lb] | 4.4 | 10.6 | 10.6 | 17.7 | |
| Poles / Positions (P) | Any (n: the Number of P) | ||||
| Electrical Specifications | |||||
| Rated Volt [V] | 600 |
||||
| Rated Current [A] | 10 | 20 | 30 | 40 | |
| Wire Size [mm2] | 1.6 mm2 | 4.0 mm2 | 6.0 mm2 | 10 mm2 | |
| Wire Size [AWG] | AWG 16 | AWG 12 | AWG 10 | AWG 8 | |
| Materials | |||||
| Insulator Materials | PC | ||||
| Color | Black (White, Blue, Red, Brown, ...) | ||||
| Flame Retarded Grade | UL94V-2 (UL94V-0) | ||||
| Temperature [0C] | -400C~+1100C (Max: +2200C) |
||||
| Conductor | Brass, Nickel Plated (Copper, Tin Plated) | ||||
| Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover. |
||||
| End Plate | TR-10EP | TR-20EP | TR-30EP | TR-40EP | |
| End Clamp | TE-002, TA-002, (TA-002H), TF-ECL, (TF-ECH) | ||||
| DIN Mount Rail | TA-001A, TA-001S (35mm DIN Rail) | ||||
| Protective Cover | M-PCV-S015 | M-PCV-S025 | M-PCV-A010 | M-PCV-A010 | |
| Transparent Cover | M-CV-010 | ||||
| Paper Marker Strip | M-MKS-010 (-XXX: Length) | ||||
| Mounting Rod [mm] | M-MRD-010S (-XXX: Length) | ||||
| Remarks | Ex: TR-30-07P (7 poles assembly of TR-30) | ||||
