Specifications
Blast pot cccessories boron carbide nozzle:High wear resistance, high hardness, high elastic modulusBlast pot cccessories boron carbide nozzle
Characteristic

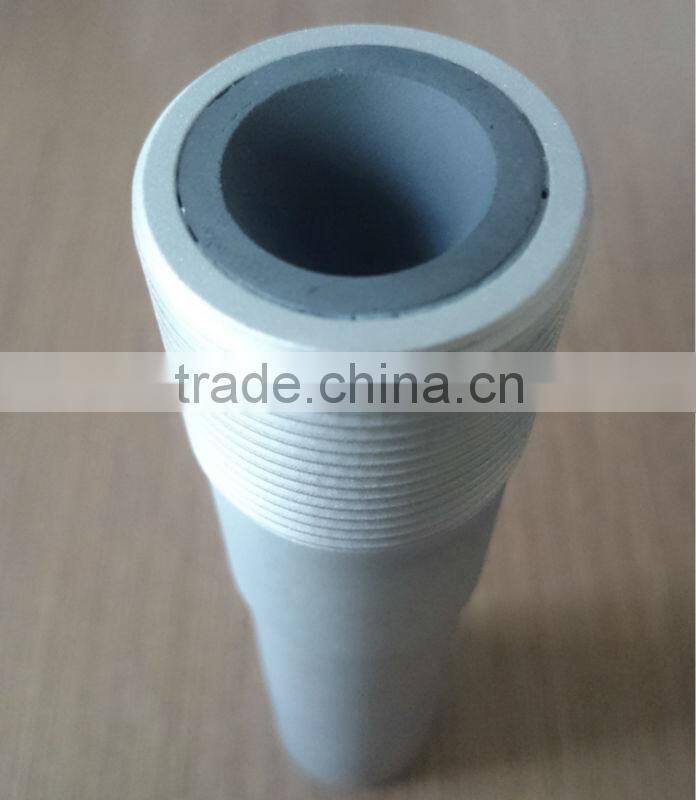

The inner core use imported high purity boron carbide raw materials, produce with high-tech equipment and fine process.Nozzle have long service life, high hardness, high strength, high chemical stability, light weight, high temperature resistance, corrosion resistance and other characteristics,which is 3-4 times service life than tungsten carbide nozzle.
Technical data
Hardness:HRA92-94
Density:4.50-4.60g/cm3
Bending strength:40kg/cm3
Compression strength:240kg/cm3

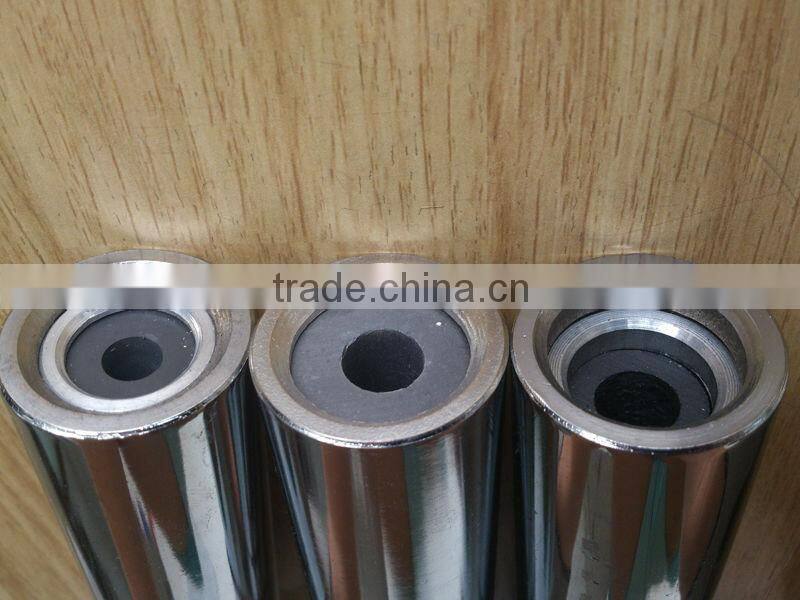

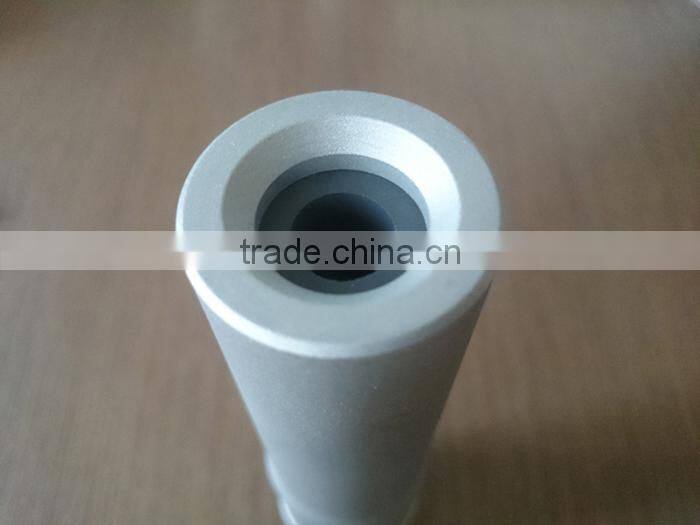

Appearance: carbon steel shell after sand blasting and plating, aluminum shell after sand blasting.
Size
| model | bore diamater | length(mm) | material of inner core | material of shell |
| S001 | 6mm | 162 | boron carbide | carbon steel |
| S002 | 8mm | 162 | boron carbide | carbon steel |
| S003 | 10mm | 162 | boron carbide | carbon steel |
| S004 | 12mm | 162 | boron carbide | carbon steel |

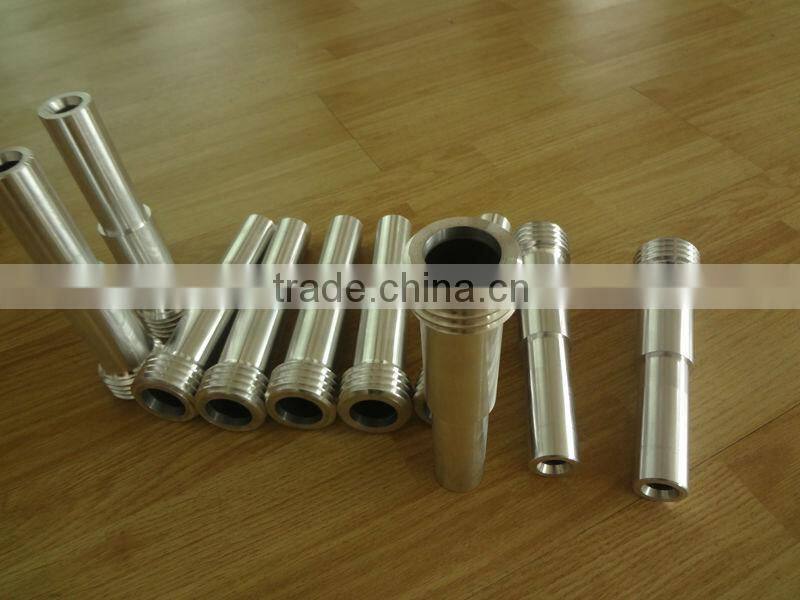

Remark:1.The size can be customized according to customer's require

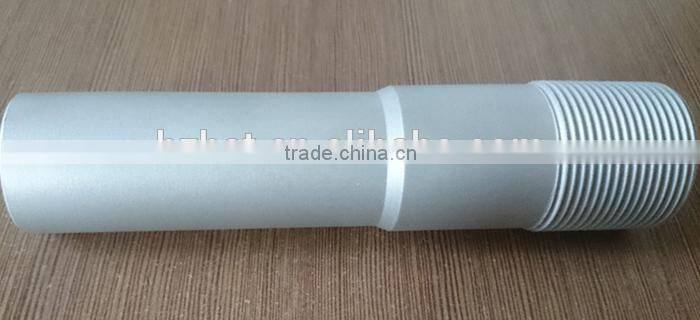

2.The shell can be made of aluminum or steel

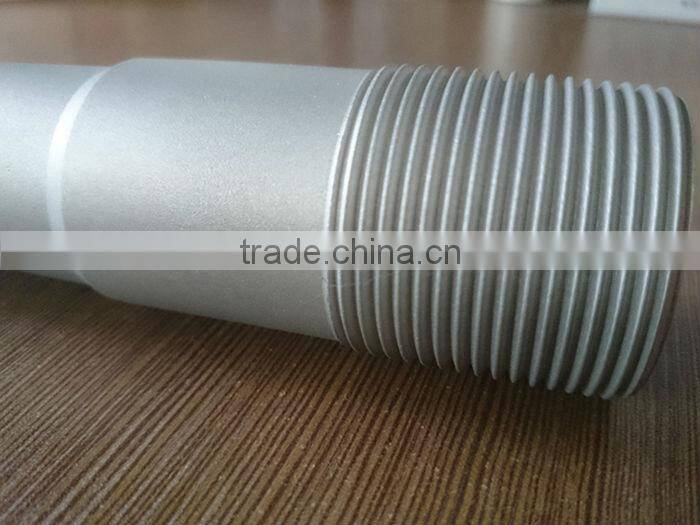

3.Fine thread or coarse thread for choose
Production process
1.Boron carbide and other raw materials grind in ball crusher(72 hours)
2.die-filling
3.hot press molding(2500°C)
4.natural cooling
5.Mould unloading
6.end preparation
7.Shell processing and surface treatment
8.Assemble
9.Inspection and storage
The different between single venturi and double venturi nozzle
Single venturi nozzle is the long range type, one air inlet.
Double venturi belongs to high speed type, with eight holes around the shell, due to the high speed air flow, the speed of air ejecting faster than compressed air, speed of blasting is higher.

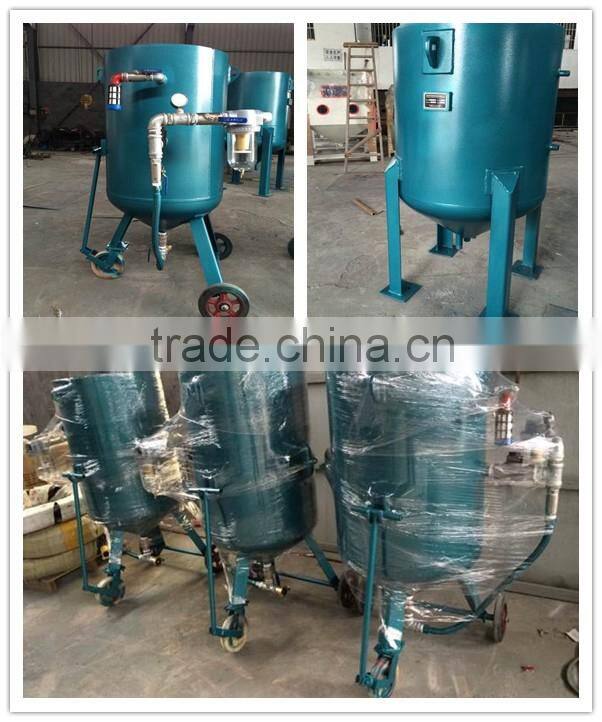

Suitable machine
