Home > Electrical & Electronics > Transmitter > Pressure Transmitter > Smart Pressure Transmitter With LED Dispaly

Smart Pressure Transmitter With LED Dispaly

Smart Pressure Transmitter With LED Dispaly photo-1

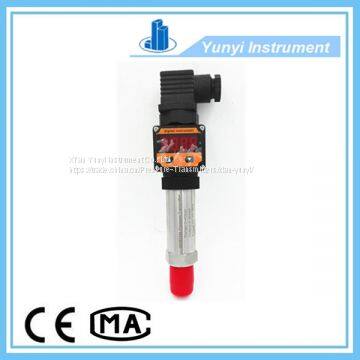

Smart Pressure Transmitter With LED Dispaly photo-2
Smart Pressure Transmitter With LED Dispaly photo-3
Smart Pressure Transmitter With LED Dispaly photo-4
Smart Pressure Transmitter With LED Dispaly photo-5
US$ 50 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
YD31L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,tianjin,qingdao,guangzhou
Delivery Detail:
5 days
Brand Name Yunyi
Place of Origin China
Model Number YD31L

Description:
Integral component of stainless steel, elastomer original imported high-precision strain gauge and advanced technology, with high sensitivity, stable performance, good impact resistance. 316 stainless steel welded closed, the pressure sensor LED display comes with three and a half, while the output analog signals to the back-end control mechanism to pressure signal sampling, compact, compact, good moisture resistance and excellent media compatibility.

Technical indicators:
Range: -0.1 ~ 0 ~ 1 ~ 150 (MPa)
Comprehensive Accuracy: 0.25% FS, 0.5% FS, 1.0% FS
Output signal: 4 ~ 20mA (two wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
Site display: LED three half 0000 - 1999
Supply voltage: 24DCV (9 ~ 36DCV)
Medium temperature: -20 ~ 85 ~ 150 ℃
Ambient temperature: room temperature (-20 ~ 85 ℃)
Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than 50KΩ
Insulation resistance: more than 2000MΩ (100VDC)
Sealing Rating: IP65
Long-term stability: 0.1% FS / Year
Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output changes less than 0.1% FS
Electrical connection: Hirschmann connector
Threaded connection: M20 × 1.5, etc., other threads can be designed according to customer requirements
Dimensions: M20 × Φ26.5 × 175

Measuring media: Weak corrosive liquid; weak corrosive gases.


Product Tags: Smart Pressure transmitter , Pressure transmitter , LED dispaly
