Specifications
YK-101 smart pressure transmitt
Professional manufacturer
Experienced technical Engineer

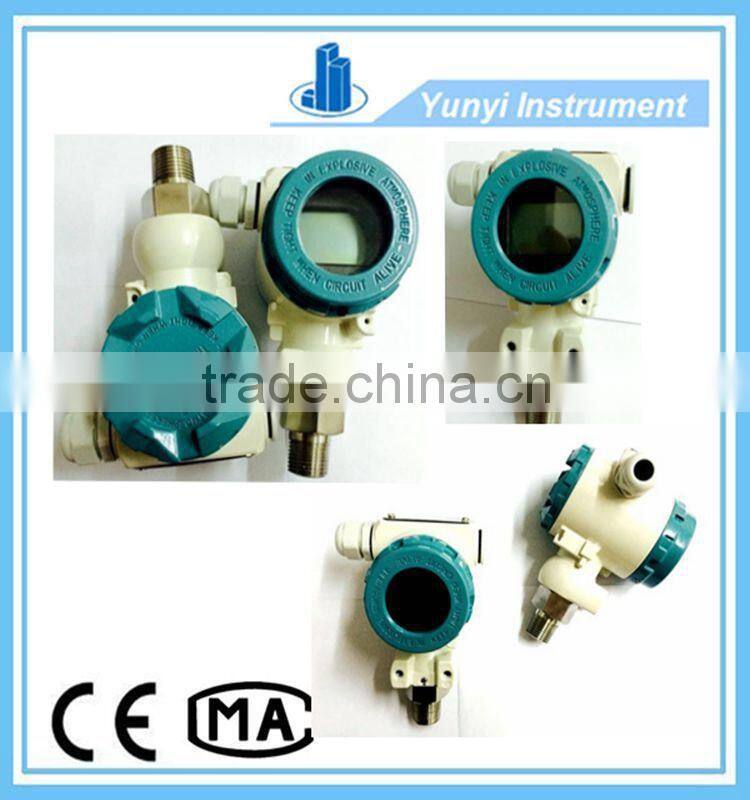

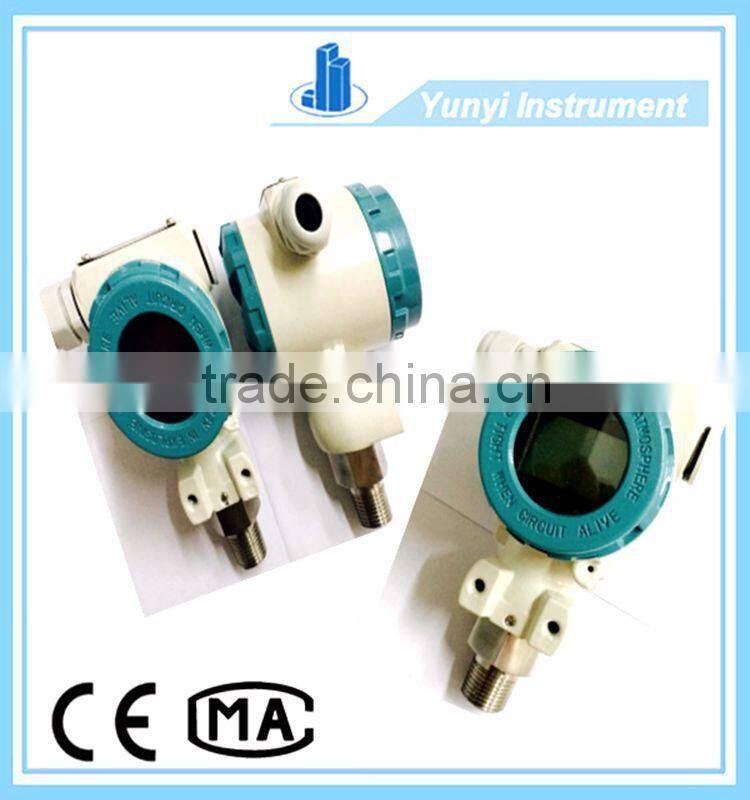

YK-101 smart pressure transmitt
Introduction of YK-101 smart pressure transmitt :
RS485 digital pressure gauge adopt external power supply, with field display and output digital communication interface functions, 4-20 ma current signal output.
Application of YK-101 smart pressure transmitt :
The smart pressure transmitter apply to support the system or equipment through the RS485 communication pressure acquisition
Pressure monitoring and remote transmission of oil wells and gas wells.
Apply for pressure parameter cquisition of large area network.
Specification smart pressure transmitter :
Type: smart pressure transmitter
Range: -37.4-37.4 KPa
Output: 4-20mADC
Power Supply: 12.5-45VDC
Display: 5 digit LCD display
Medium Temperature: -40 - 104 °C
Features of industry pressure transmitter :
* Long service life, high precision, good long-term stability.
* Advanced power management techniques.
* Unique anti RF interference technology, perfect match digital radio remote monitoring
* Support RS485 communication, never dropped the communication technology, bus supports 255 sets equipment
* Enhanced lightning protection technology, ensuring the security of the instrument.
* White backlight, display clear.
* Zero self stabilizing technology
* Temperature compensation technology
Technical Parameters of industry pressure transmitter :

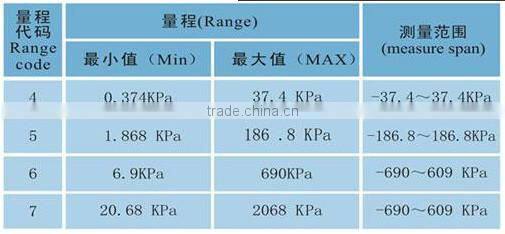

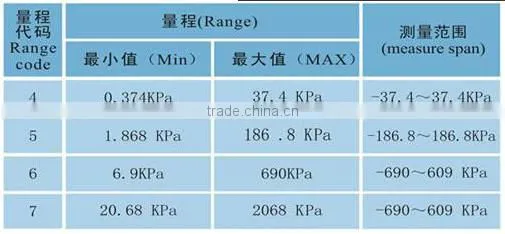

1. Pressure Range:: Gauge Pressure:: -100kPa ~ 0 ~ 1kPa~260MPa
Differential Pressure: 0 ~500Pa ~ 3.5MPa
Absolute Pressure: 0~ 10kPa ~60MPa
2. Communication methods: RS485(MODBUS RTU Protocol)
3. Accuracy: 0.1 class; 0.2 class; 0.5 class
4. Stability: ≥0.1%FS/year; ≥0.2%FS/year
5. Display: Dynamic four LCD digital display (equivalent to 4 and half figures), plus characters suggest, can display pressure units as kPa, MPa etc.
6. Overload pressure: 1.5-3 times of the pressure range, depending on the measurement range.
7. Communication power supply: 7~30VDC external power supply
8. Medium temperature: -40~85°C
9. Working Condition: Temperature: -30°C~60 °C; Humidity: <90%
10. Explosion-proof level: ExiaIIBT4, ExdIIBT4
11. Electrical interface: M20×1.5(Internal thread)
12. Process connection: M20×1.5(External thread) or can be customized
If you need products such as pressure gauge, pressure transmitter, differential pressure transmitter, densitometer, dead weight tester and pressure calibrator, Please contact me:
Name: Lily
Trademanager: cn1510573910
Skype: tina19851122
Or you can view more products by
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this pressure transmitter , please contact me freely.
