Air/oil /Water Pressure Sensor

Air/oil /Water Pressure Sensor photo-1

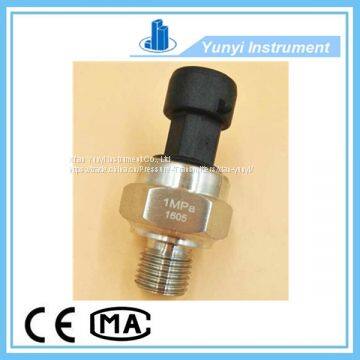

Air/oil /Water Pressure Sensor photo-2

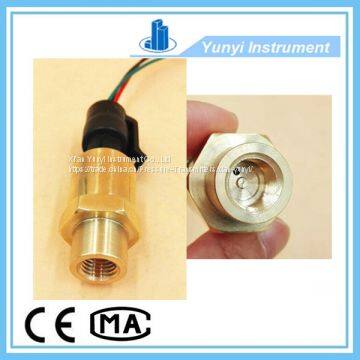

Air/oil /Water Pressure Sensor photo-3

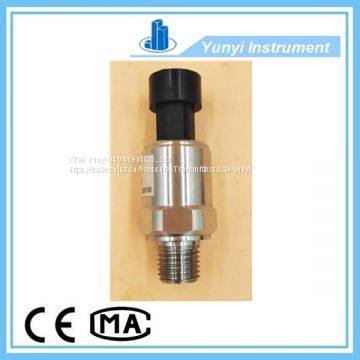

Air/oil /Water Pressure Sensor photo-4

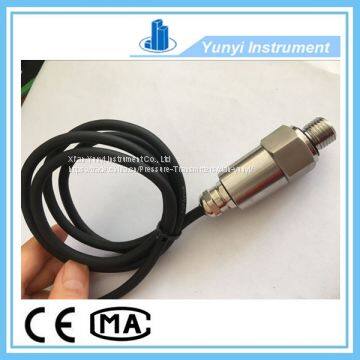

Air/oil /Water Pressure Sensor photo-5
US$ 8 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
YD322
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,tianjin,qingdao,guangzhou
Delivery Detail:
5 days
Brand Name Yunyi
Place of Origin China
Model Number YD322

This series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact
configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical
performance and long-term stability make it the idea choice for the air-condition and compressor
pressure measuring and controlling. This series can replace the similar type of other products, and it can
meet the requirement of various compressors and refrigeration equipments.





Technical parameters :



Range: 0….1bar to 0….60bar
Accuracy: 0.25%FS, 0.5%FS;1%FS
Linear: 0.02%FS
Reliability: 0.05%FS
Output: 0.5-4.5V;0-5V ;1-5V;4-20mA,
Input Voltage: 24(5-36V)DC
Operation Temperature: -10℃~125℃
Compensation Temperature: -10~70℃(Standard compensation)
Over Pressure: 150%FS
Housing material: 316L SS
Electric Connection: Packard connector
Process Connection: Z1/4, 1/4NPT, 1/8NPT (Optional)





Features :

 Superior long term stability
 Temperature compensated over wide range
 Low power consumption
 Excellent repeatability/Hysteresis
 Special design for customer
 Many OEM options







Applications :

 Laboratory test apparatus
 Agricultural chemical equipment
 Refrigeration and HVAC systems
 Hydraulic system
 Gas tank pressure monitoring
 Coolant pressure


Product Tags: Water pressure sensor , oil pressure sensor , air pressure sensor
