Automatic Compaction Tester1.Digital Automatic Display
2.Standard and Modified Proctor
3.Preset Counter and Time

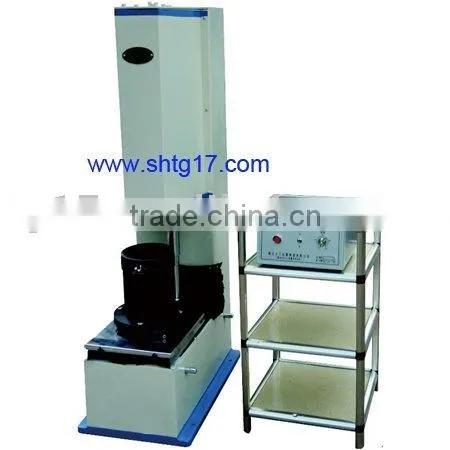

Automatic Compaction Tester
ASTM D558, D560, D698, D1557; AASHTO T99,T134,T135,T136,T180
Application:
It is used to determine the relations between the water content and the dry unit weight of
the soil using standard compaction method under the certain compaction function to determine
the best water content and max. dry unit weight of the made ground. It is used to determine the
compaction performance as per the basic of the foundation compaction control.
Specification:
Heavy-duty compaction test: Weight of the hammer: 4.5KGS
Height of the fall of the hammer: 450mm
Light-duty compaction test: Weight of the hammer: 2.5KGS
Height of the fall of the hammer: 300mm
Diameter of the cylinder mould: 100mm and 152mm
Diameter of the hammer head: 50mm
Compaction frequency:30 times/minute
Motor: 370W, 220V, 1400RPM
Packing information :
Outside size: 1320mm×400mm×650mm(L*W*H);
Weight: about 130Kg
