Specifications
Direct Shear Apparatus1.Single-chip computer control
2.According to Colombs law
3.Finish
4 specimens tests at a time
Direct Shear Apparatus
Function:

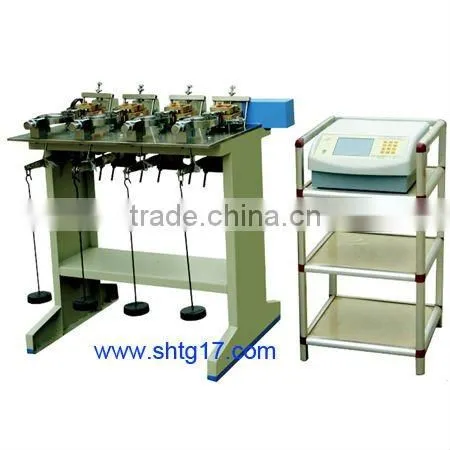

Qua-druplex Strain Controlled Direct Shear Apparatus is a kind of
strain controlled direct shear apparatus used to test resisting
shear strength of soil specimen, it usually adopts four specimens
under the different vertical pressure and to exert horizontal force to
the specimens so as to obtain shearing stress while the specimen
is destroyed. According to Coulomb s law to confirm the resisting
shear strength coefficient, angle of internal friction and coagulable
force of the soil.
Feature:
A kind of strain controlled direct shear apparatus.
Finish 4 specimens tests at a time at different conditions
Stainless steel working table, Stepping motor transition system
Single-chip computer control, easy operation;High precision, low
noise, Freely set and display speed
According to Colombs law
Main technical data:
Area of soil sample: 30cm2 Lever ratio: 1:12
Vertical Loading: 50, 100, 200, 300, 400 (Kpa)
Max. horizontal loading: 1.2KN
Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
