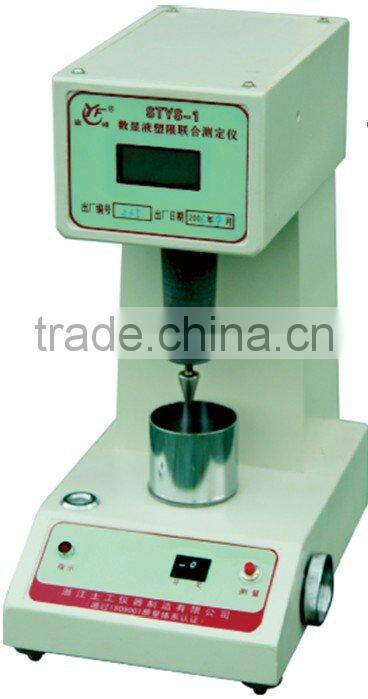

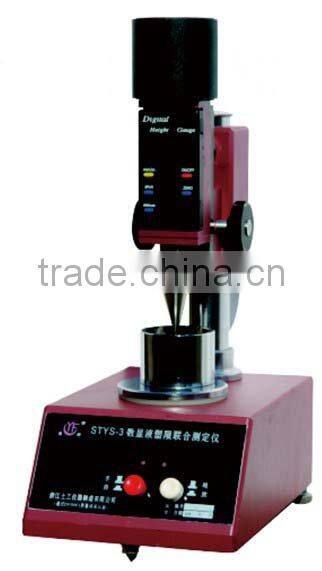

Liquid Plastic Limit United Device

Specifications

Digital Liquid Plastic Limit United Device


Performance:
The equipment is used for determination of soil liquid and plastic
limits .It's for determining soil types to calculate natural
consistency, plasticity index provide reliable data.It's use digital
display technology and can automatical regular
measurement and display. With stable performance, reliable data,
and high accu-racy, intuitive readings, clear and easy to
operate, highefficiency
Main Technical Data:
(1)Max. measuring range:22mm
(2)Resolution:0.1mm
(3)Nonlinear error :Superior 2

(4)Sensitivity of the contact indication:>10M
(5)cone's weight:76g±0.1g,100g±0.1g
(6)Cone:30°±2°
(7)Measuring Time:5 Second
(8)Working voltage:200V±10 50HZ
(9)Continuous working period:8 hours
(10)The weight of machine:5.3kg
(11)Outer dimension :240mm×158mm×320mm
