NDK gas fireplace valve ignition igniter

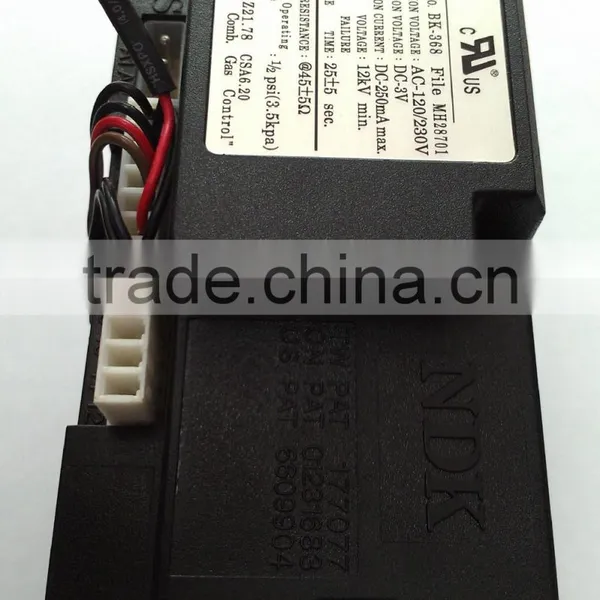

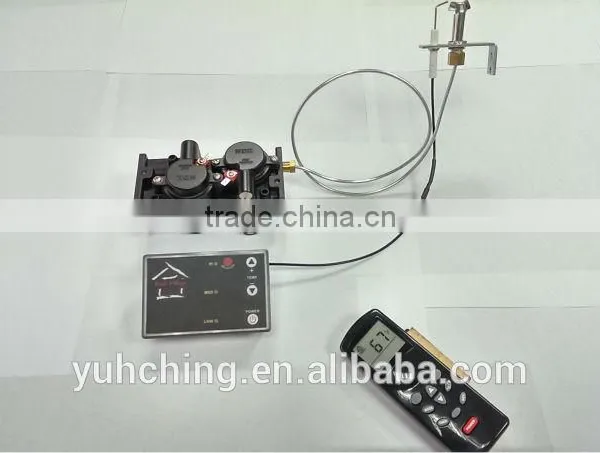

Fireplace Gas Valve Control System with Remote Controller (BK-368)

1. Totally remote controller. IR LCD Remote Controlled: End consumers will never use their hands to switch the button to turn on/off the heaters.

2. CE & UL & CSA Approved
3. For in door fireplace, outdoor patio heater and firepit..etc.
4. Both NG & LPG Adjustable
5. Includes of Gas valve & Ignition

6. ODS system is suitable

Specification :

1. Gas Type: Both Natural Gas & LPG (Propane)

2. Customerized Capacity: Can be adjusted by your market needs

3. Temperature : ~ 80^.C (175^.F)

4. Operation Voltage : 110 / 220 VAC ; 3 VDC

5. Output Voltage : 12~13 kV / min

6. Ignition Circles : 6 Hz at 3VDC

7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa)

8. Flame Faliure Respone Time : 25 +/- 5s  (safty control system)

9. Flame Out safety

10. Children Saftey

11. Two Gates of Valves (Four valves inside and electronic control ignition) to avoid the leakage of Gas.

Features:
