NDK YUH-HUA THERMOSTAT Burner Gas Control Valve Fireplace Ignition System Chimney Valve With ODS Patio Heater
Negotiable
MOQ: 300 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pilot
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
keelung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NDK 368 Gas Fireplace Heaters Valve Remote Control System Patio Heater Ignition Valve Boil Grill Burner Chimney ODSNegotiableMOQ: 300 Pieces -
Fireplace Gas Valve Gas Spark Ignition Control System Free Standing Infrared Heater NDK OUTDOOR PATIO HEATER Space Heater RoomNegotiableMOQ: 300 Pieces
-
Fireplace Gas Control Parts With ODS Fuction Gas Valve Ce, Csa, UL Approved!NegotiableMOQ: 300 Sets
-
Fireplace Gas Valve Control SystemNegotiableMOQ: 300 Pieces
-
Exhausted Water Heater Ignition Boiler Spark Ignition Igniter IgnitorNegotiableMOQ: 500 Pieces
Standard or Nonstandard
Standard
Structure
Pilot
Pressure
High Pressure
Power
Hydraulic
Material
Plastic
Temperature of Media
High Temperature
Media
Gas
Port Size
2
Place of Origin
Taiwan, China
Model Number
BK368
Brand Name
NDK YUH-HUA
Application
General

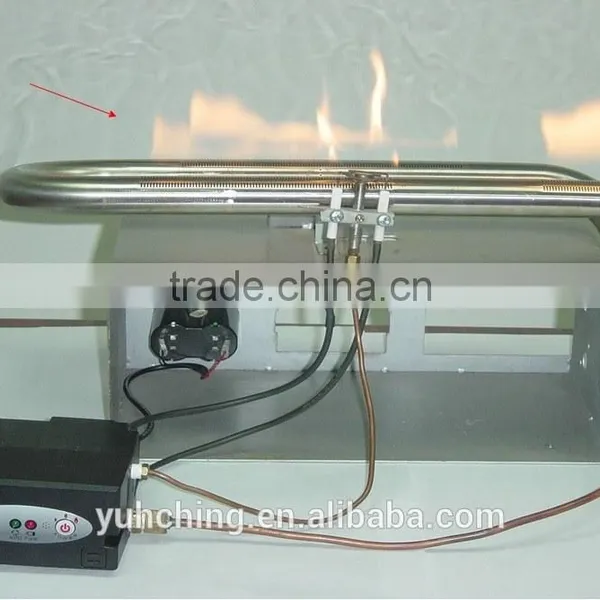

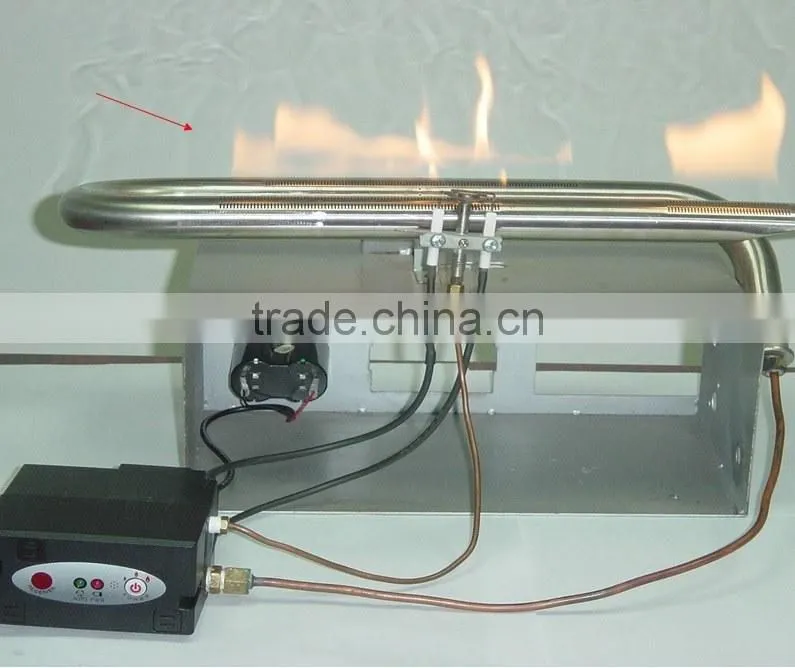

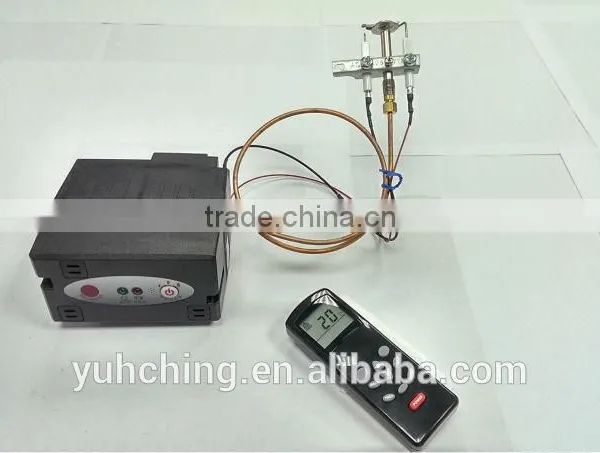

Fireplace Gas Valve Control System with Remote Controller (BK-368)
Hot Point :
1. IR Remote Controlled
2. CE & UL & CSA Approved
3. For fireplace and BBQ..etc.
4. Both NG & LPG
5. Energy Saving!
Specification :
1. Gas Type: Both Natural Gas & LPG (Propane)
2. Capacity: Can be adjusted by your market needs
NG : Max 45000 BTU / hr
LPG : Max 90000 BTU / hr
3. Temperature : ~ 80.C (175.F)
4. Operation Voltage : 110 / 220 VAC ; 3 VDC
5. Output Voltage : 12 kV / min
6. Ignition Circles : 6 Hz at 3VDC
7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa)
8. Flame Faliure Respone Time : 25 +/- 5s (safty control system)
Product Description
1. There are four stages of fires on this system. Pilot—>Small—>Medium—>Big fires
2. All functions are controlled by remote controller which means end consumers never use their hands to turn on/off under freezing weather again.
3. The most important thing is saftey. There are two gates of valves (all four valves) to contol the flow of gas in order to avoid the leakage of gases.
4. There is a Children saftey device on remote controller. Operator has to press Key press for 2 senconds to unlock and press the power key again then to turn on the heater.
5. Flame out saftey device. Please kindly find the operation rule in specification page 5.
6. Customerization service: we can adjust the BTU based on the gas pressure to match your markets demand to make sure the stability of fires.
7. There are 2 kinds of remote controller for choice. One is simple one for elderly people to use; another is one with LCD monitor for younger and fashion people to choose.
8. Only main system and 1 remote controller are necessary. Other accessries are optional.
9. ODS function is workable!
10. DC Battery for 3v and AC 100~240V all available in the meantime!
11. Emergency Device: While consumers meet Power Failure, they still can use DC power to go through freezing winter
12. CE/CSA/CUL Approved!
