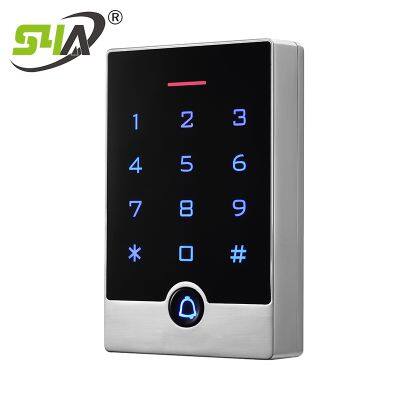

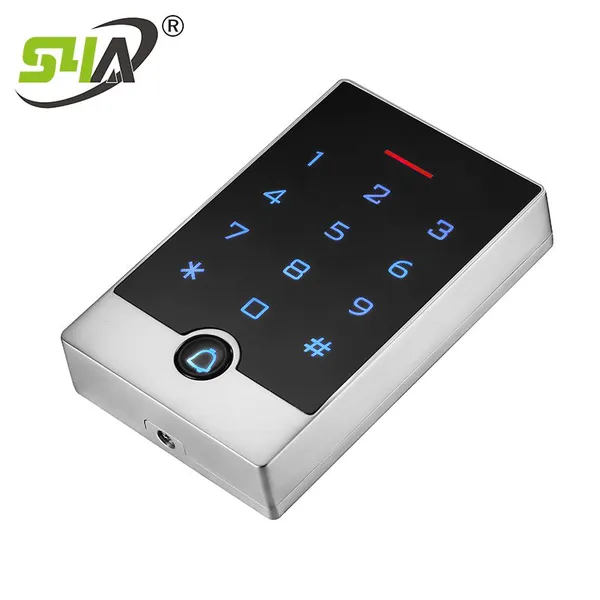

Waterproof Standalone Access Control Keypad 13.56mhz Support EM Card Open Door
Model No.: T15 EM
The unit is a single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy, and vandal-proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection, Wiegand output, and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.
> Waterproof IP68
> Strong Zinc Alloy Electroplated anti-vandal case
> 2000 uses, supports Card, PIN, Card + PIN
> Adjustable Door Output time, Alarm time, Door Open time
> Lock output current short circuit protection
> Built-in a light-dependent resistor (LDR) for anti-tamper
> Built-in buzzer
> Red, Yellow and Green LEDs display the working status
Operating Voltage | DC 12V ±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Size | 120*76*23mm |
Wiring Connections | Electric Lock, Exit Button, External Alarm, External reader |
