WZB-03 Wireless ZigBee Integration Module End Device
ZigBee HA profile compliant, RS profile ready
Range 100m (line of sight)

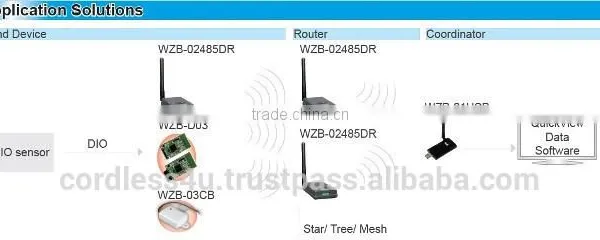

The ZigBee modules’ compact design allows for simple Plug and Play integration into a variety of systems, and is particularly applicable for devices using DIO protocol. Simply add the ZigBee module to an existing device provides ZigBee Wireless connectivity. Integrating with WZB-01USBC USB coordinator or WZB-02485DR router provides a simple solution for building IEEE 802.15.4 compatible ZigBee Wireless networks lowering R&D costs and greatly reducing development schedules. Paired with WZB-05ET ZigBee transceiver to Ethernet converter provides internet connectivity for a variety of networking applications such as home automation, health care systems, smart buildings, industrial auto-control measurement and monitoring, and low power detection systems. The ZigBee modules’ versatility makes them suitable for a wide range of uses minimizing development costs and time as well as broadening Wireless and internet networking capabilities.
Model No :
WZB-03DS with socket connector-DIO protocol
WZB-03DP with pin connector- DIO protocol
WZB-03MS with socket connector- ModBus protocol
WZB-03MP with pin connector- ModBus protocol
| Network protocol | Compliant IEEE802.15.4 ZigBee 2007/PRO |
| Chip Set | TI CC2530 F256,256KB Flash SoC |
| Frequency | 2.4~2.4835GHz |
| Channel | 16 |
| Data Protocol | Digital IO or General/Modbus protocol |
| Transmiss ion rate | 250Kbps Max |
| RF output power | 0 dBm |
| Receiver sensitivity | -92 dBm |
| Communication range | 50 Meters(in open area) |
| Network supportts | Star, Tree, Mesh |
| Auto reconnection | Auto recovery when interrupted |
| Working voltage | DC 3V~DC5V |
| Power consumption | 90mW |
| Power saving | 2µA at 3V DIO |
| Link settings | Wireless setting PAN , RF Channel, Baudrate, ID |
| Seting Switch | Single S1 switch function as join, remove & reset |
| Working tem perature | -20~80°C, 90%RH Max. |
| Dimension | L28.5mm X 16mm X H4.5mm |
1 Year Warranty. Original Made in Taiwan
R&R GROUP INTERNATIONAL
Taipei Taiwan, Hong Kong, Dubai UAE
