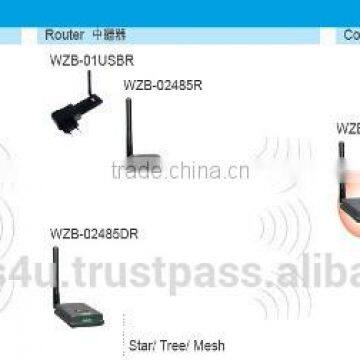

WZB-02485C ZigBee Wireless RS485 Coordinator
The ZigBee WZB-0285 is a wireless router with coordinator capabilities making it perfectly suited to working in ZigBee’s Wireless Solution networks (Star, Tree or Mesh network). This device is has been fitted with both the RS485 interface and the RTU Modbus interface increasing its applications and versatility. The ZigBee Router is also fitted with ZigBee’s Zero Data Loss technology and will automatically reconnect to the system should connection be temporarily lost. This device is designed for maximum performance with minimum power-consumption by using a SoC chip. Although specifically designed for Modbus functionality, this device is also fully compatible with the ZigBee Home Automation (HA) profile.
Specification:
| Wireless Protocol | PRO IEEE802.15.4/ZigBee 2007 |
| Transmitting Protocol | UART: Modbus RTU/ZigBee HA Profile |
| Network Topology | Star-Tree-Mesh |
| RF Power | 18dBm |
| Operating Frequency | 2.4GHz ISM Band |
| Transmission Range | 500m/1640ft open/unobstructed area |
| Transmission Rate | Max: 250kbps |
| Baud rate choice | Adjustable (Default : 9600 8N1) |
| Power Supply | DC6-24V |
| Power Consumption | 0.3W |
| Parameter |
Baud rate PAN, ID, RF Channel
Configurable
|
| Receiver Sensitivity | -92dBm |
| Auto Reconnection | Auto reconnection when interrupted |
| Working Temp | -20C~70C./-4F~158F (Max 90% RH) |
| OS support | Windows: 2000, XP, Vista, Win7, Win8 |
| Dimension | 62mmx42mmx15mm |
| Weight | 31g/1.1oz |
| Certifications | CE/FCC |
1 Year Warranty. Original Made in Taiwan
