Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Wholesale Digital Thermostat for Floor Heating

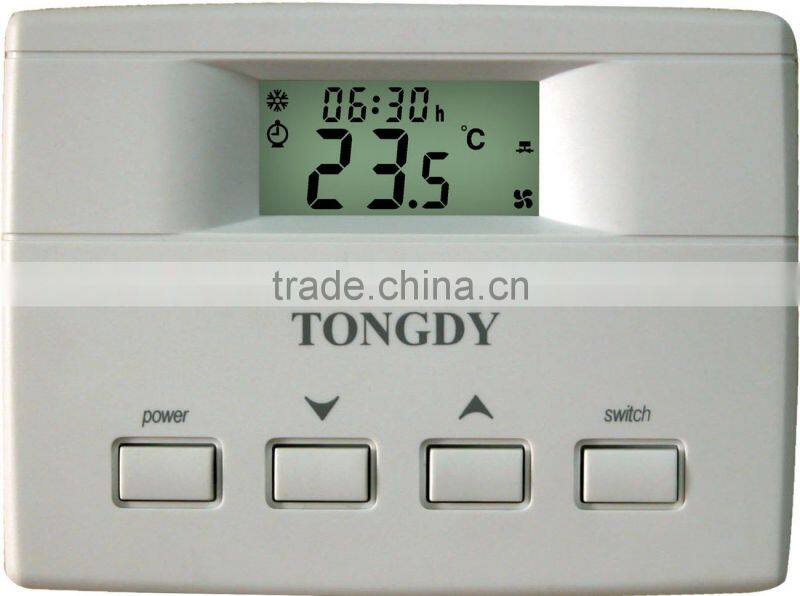

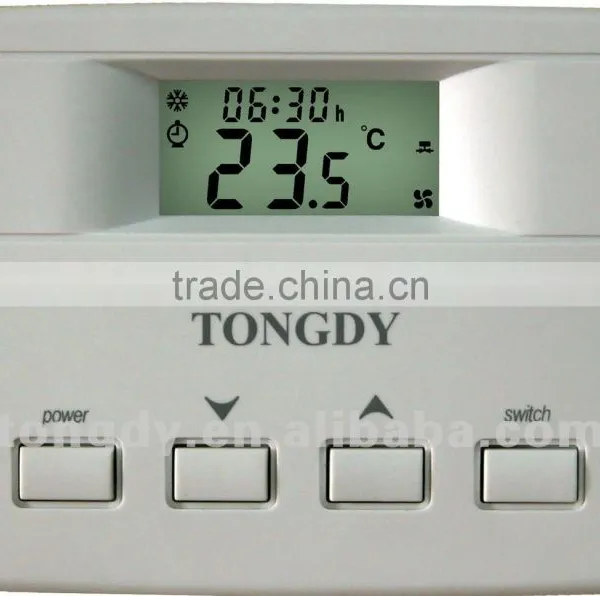

Wholesale Digital Thermostat for Floor Heating

Name: Wholesale Digital Thermostat for Floor Heating
Brand: Tongdy
SKU: 141810332
Availability: InStock

Wholesale Digital Thermostat for Floor Heating thumbnail-1

Wholesale Digital Thermostat for Floor Heating photo-1

US$ 1 - 2 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

F2000LB-EA

Contact Supplier Request Quote Chat Now

Tongdy Sensing Technology Corporation (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Tongdy

Model Number F2000LB-EA

Usage Indoor

Theory Temperature Controller

Specifications

thermostat for floor heating
5/2 day programmable
up to 2 on/off outputs (total 16A)
with LCD

Wholesale Digital Thermostat for floor heating

Thermostat for floor heating Features:

u Digital room thermostat for control floor heating

systems which makes room ambiance comfortable

and saving energy.

u Particular design of double temperature modification

which eliminates the influence from heating from

inside, and makes temperature measurement

and control more accurate.

u LCD can display working status such as room temperature, set point, fan speed, etc. Makes reading and operating easy and accurate.

u All models feature user-friendly setting buttons

u Safety two parts structure design makes electric load to separate from the thermostat. Individual output and input terminals with rated 20amp make

electric connecting more safe and reliably.

u SPST or DPDT switch selectable

u Internal or external temperature sensor selectable

to control room or floor temperature.

Also two sensors for room temp. control and floor heating temp. limit control

u 5/2 days weekly programmable optional with four times periods and four temperatures

u Holiday mode makes users preset the holiday days

And the saving energy temperature

u Celsius or Fahrenheit degree selectable

u Low temperature protection

u Infrared Remote Control (optional)

u Blue backlight (optional)

u Power supply selectable: 110VAC/230VAC or

DC3V battery power

dark room.

Specifications

Power supply	220VAC±10% ; 110VAC±10% Battery power supply: DC3V, two alkaline batteries 1.5 V each type AAA
Switching Current	SPST Rating resistance load: 16A 230VAC/110VAC DPDT Rating resistance load: 8A 230VAC/110VAC
Sensor	NTC temperature sensor
Temperature Control Range	5~35°C (41~95°F) or 5~90°C
Accuracy	±0.5 °C (±1°F) @25°C
Display	LCD
Net Weight	280g
Dimensions	120mm(L)×90mm(W)×22mm(H)+28.5mm(bulge)
Mounting Standard	Mounting on the wall, or 2“×4“/ 65mm×65mm box
Housing	PC/ABS plastic material

Models

Type	Model	Characteristic
Digital thermostat for floor heating systems with SPST	F2000LB-E1a -(A)/(B)	One on/off switch contact, rating resistance load: 16amp. It controls the live wire of load directly Power supply: (A)- 220VAC~240 VAC (B)- 100VAC~120VAC
Digital thermostat for floor heating systems with DPDT	F2000LB-E2a	Two on/off switch contacts, rating resistance load: 8amp. It can cut off the two wires (L,N) of load.
OPTIONS
Options for above items	Blue Backlight -EL	Blue backlight of LCD.
	Remote Control -R	Infrared remote control
	Sensor External -W	Temperature sensor is external, its length is from 2.5 meters to 4 meters.
Type	Model	Characteristic
Programmable thermostat for floor heating systems with SPST, RS485 communication interface	F2000LC-E1a-CK4	One on/off switch contact, rating resistance load: 16amp. It controls the live wire of load directly. 5/2 days programmable RS485 communication.
Programmable thermostat for floor heating systems with DPDT, RS485 communication interface	F2000LC-E2a-CK4	Two on/off switch contacts, rating resistance load: 8amp. It can cut off the two wires (L,N) of load. 5/2 days programmable RS485 communication interface
Battery Power Supply
Programmable thermostat for floor heating	F2000LB-E1a-CK4- DC3V-16A	One on/off switch contact, rating resistance load is16amp. 5 days/2 days programmable. 2x1.5VDC batteries power supply

Shipping Information

F2000LB-Ea with 220VAC/110VAC power supply		F2000LB-Ea-DC3V without batteries
Indiv. Ctn. Dim	135mm×95mm×55mm	Indiv. Ctn. Dim	135mm×95mm×32mm
Master Ctn. Qty	40	Master Ctn. Qty	80
Master Ctn. Dim	44cm(L)X32cm(W)X32cm(H)	Master Ctn. Dim	44cm(L)X32cm(W)X32cm(H)
Master Ctn. Wt.	14KG	Master Ctn. Wt.	20Kg
