Help CenterDeluxe Programmable Thermostat for Floor Heating
Related Products
Specifications
deluxe thermostat for floor heating7-day programmable 1 on/off output (16A)
large LCD
optional LCD backlight, remote control

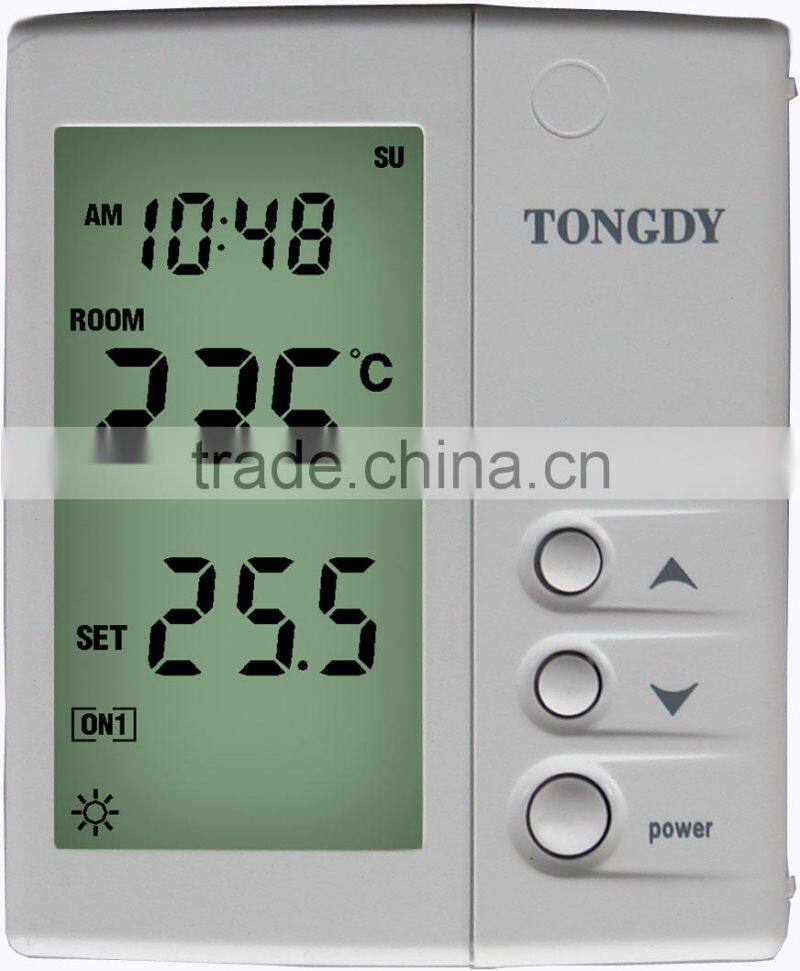

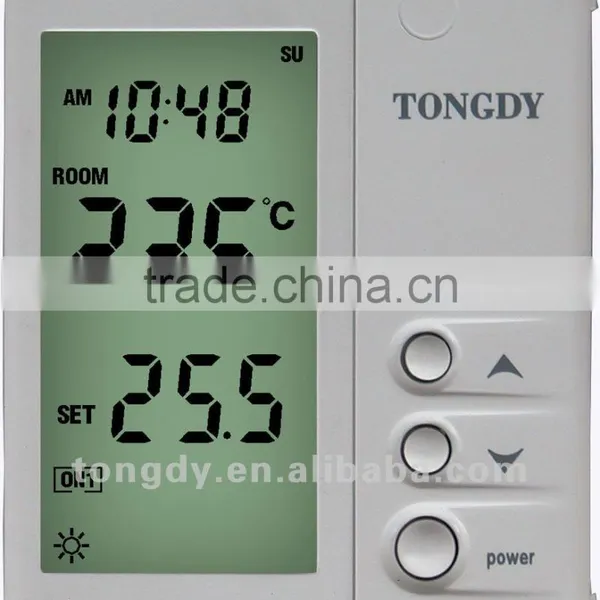

Deluxe programmable thermostat for floor heating
programmable thermostat Features
u Deluxe design for control electric diffusers & floor
heating systems.
uEasy to use and provides you with a more comfortable living environment and saving energy.
u Special design of double temperature modification
avoids measurement to be influenced from heating inside,
Provides you accurate temperature control.
u Two parts design makes electric load separate from the thermostat. Individual output and input terminals with
rated 16amp make the electric connecting more safe and
reliably.
u Pre-programmed for your convenience.
Two program mode: Program a week 7 days up to
four time periods and temperatures each day
or program a week 7 days up to two periods of turning-on/turning-off each day. It must meet your lifestyle and
makes your room ambiance comfortable.
u Programs are permanently held in non-volatile memory in the event of a power failure.
u Attractive turn-cover design, most frequently used keys
are located on the LCD for quick and easy access to
information. Program keys are located on the interior
to eliminate accidental setting changes
u Large LCD display with many messages for quick and easy readability and operation such as measurement and setting temperature, clock and program etc
u Both Internal and external sensor are available to control room temperature and set a highest limit of the floor temperature
u Constant hold temperature setting allows continuous override program
u Temporary temperature override
u Holiday mode makes it keeping on a saving temperature during the presetting holidays
u Unique lockable function makes all keys locked to eliminate accidental operation
u Low temperature protection
u Temperature either °F or °C display
u Internal or external sensor available
uInfrared remote control optional
uBacklight of LCD optional
u RS485 Communication interface optional
Specifications
Power supply | 230 VAC/110VAC±10% 50/60HZ |
Power consume | ≤ 2W |
Switching Current | Rating resistance load: 16A 230VAC/110VAC |
Sensor | NTC 5K @25°C |
Temperature degree | Celsius or Fahrenheit selectable |
Temperature control range | 5~35°C or 5~90°C |
Accuracy | ±0.5°C |
Programmability | Program 7 days/ four time periods with four temperature set points for each day or program 7 days/ two time periods with turning-on/turning-off the thermostat for each day |
Keys | On the surface: power/ increase/ decrease Inside: programming/temporary temp./hold temp. |
Net weight | 370g |
Dimensions | 110mm(L)×90mm(W)×25mm(H) +28.5mm(back bulge) |
Mounting standard | Mounting on the wall, 2“×4“ or 65mm×65mm box |
Housing | PC/ABS plastic material with IP30 protection class |
Approval | CE |
Models
| MODEL | DESCRIPTION |
Programmable Thermostat for Floor Heating Systems
Power supply: -(A):230VAC -(B): 110VAC | F06NE-(A)/(B) | Room thermostat for electric diffuser and floor heating. 7-day program with four time periods and temperatures each day. Holiday mode preset. |
F06NE-DW-(A)/(B) | Room thermostat for electric diffuser and floor heating. 7-day program with four time periods and temperatures each day. Holiday mode preset. Internal and external sensors can be used to control room temperature and the highest limit of floor temperature. | |
F06NEC-(A)/(B) | F06NE with Modbus RS485 communication interface | |
F06NE-PO-(A)/(B) | Room thermostat for electric diffuser and floor heating 7-day program with two time periods and turn-on/turn-off. | |
F06NEC -PO-(A)/(B) | F06NE-PO with Modbus RS485 communication interface | |
|
| OPTIONS |
External temperature sensor -W | Internal sensor and external sensor selectable for above items except F06-DW | |
Backlight LCD -EL | Blue backlight of LCD | |
Remote Control -R | Infrared remote control | |
Shipping Information
Indiv. Ctn. Dim | 135mm×95mm×55mm |
Master Ctn. Qty | 40 |
Master Ctn. Dim | 44cm(L)X32cm(W)X32cm(H) |
Master Ctn. Wt. | 18KG |
