Specifications
1.Proportional-action temperature controller for HVAC system2.3 speed fan control, 0-10V for valve control.
Power supply |
220VAC±10% , 110VAC±10% , 24 VAC±20% selectable in order |
Rate contact current for the fan and aux. heater |
1 amp 5 amp for F2000PS-A-5A |
Analog output |
0~10VDC |
Sensor |
NTC 5K |
Temperature Control Range |
5-35°C |
Accuracy |
±0.5°C @25°C |
Display |
LCD |
Weight |
300g |
Dimensions |
130mm(L)×90mm(W)×32mm(H) |
Mounting Standard |
Mounting on the wall, 2“×4“ or 65mm×65mm box |
Features:
1) Microprocessor-based PI control action provides accurate, and stable room
temperature controller
2) Multi-function control for different systems
3) One 0 - 10VAC output to valve/damper; 3-speed fan or single speed fan control.
One stage or two stages electric heater control

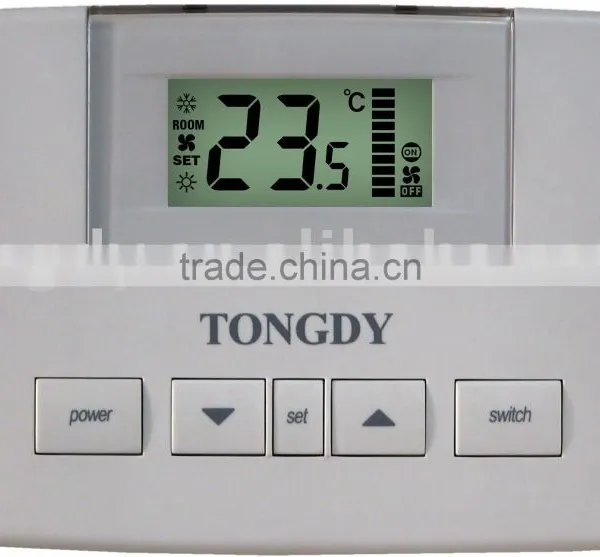

4) LCD display such as room temperature, set point, end devise status. Make reading and operating easy and accurate
5) Applications: room temperature control for fan coil unit with proportional-action water valve and electric heater or other HVAC system with proportional damper control
6) Ample models supports far-ranging
7) Low temperature protection: heating automatically turns on when room temperature goes 5 degree or set point. Protects pipes from freezing
8) Blue backlight display optional
9) Infrared remote control (optional)
