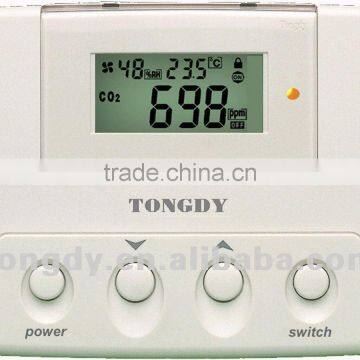

Wholesale Digital CO2 Controller for Greenhouse,hydroponicsics Gardens

   digital CO2 controller Application

F2000IAQ-CO₂ -3003Dmultiple controller is used to controlCO₂ level, temperature and humidity in order to offer right environmentfor plants growth or for foods storage.

It provides three dry contact outputs to control a carbondioxide generator and a ventilator or other temperature/humidity equipments. Itcan provide RS485 communication with independent address to PC or other controlsystems.

It will be used below application:

1. Greenhouses, which include vegetable planting houses and flowersplanting houses.
2. Modern hydroponics gardens
3. Other relevant field of agriculture
4. Keep food and vegetable on fresh
5.  Specifications

6. Gas detected	Carbon Dioxide (CO2)
   Sensing element	Non-Dispersive Infrared Detector (NDIR) with more than 10 years lifetime
   Temperature sensor	NTC
   Humidity sensor	HS series capacitive sensor
   Temperature dependence	0.2% FS/°C
   Temperature correction	Self compensation
   Power supply	100VAC~240VAC or 24VAC, 50/60HZ±10%, selectable in order
   Consumption	3.5 W max. ; 2.5 W avg.
   Accuracy@25°C(77°F)	±40ppm + 3% of reading (0~5,000ppm) ±75ppm or 10% reading whichever is greater (0~20,000ppm)
   Stability	<2% of FS over life of sensor (15 yr typical)
   Calibration interval	ABC Logic Self Calibration Algorithm
   Non linearity	<1% of FS
   Pressure dependence	0.13% of reading per mm Hg
   Altitude calibration	Programmable from 0-9,900m in 100m increments
   Response Time	<2 minutes for 90% step change
   Signal update	Every 2 seconds
   Warm up time	24 hours (first time) 10 minutes (operation)
   CO2 measuring range	0~5,000ppm 0~20,000ppm (optional)
   CO2 setting & Display resolution	1ppm
   Temperature measuring range	-20~60°C(-4~140°F)
   Temperature setting range	5~45°C(41~113°F)
   Humidity measuring range	0~99%RH
   Humidity setting range	5~95%RH
   Output resolution	10Bit
   Relay output	Three ways dry contact outputs with programmable selection to control CO2,temperature,humidity Rated switching current: 2A(220VAC/30VDC), resistance load
   Communication interface	RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection, 3 independent base address, max network node 64.
   Flow rates	80 ~ 120 cc/min
   Operation conditions	0~50°C(32~122°F); 0~95%RH, non condensing
   Storage conditions	0~50°C(32~122°F); 0~90%RH
   Weight	360g
   Dimensions	130mm×90mm×40mm
   Installment standard	65mm×65mm or 2”×4”wire box
   Wiring standard	Wire section area<1.5mm2
   Approval Standard	CE-Approval







   ¨  Models



   Model	Description
   F2000IAQ-CO2-3003D -(A)/(B)(C)	Special for green house and other agricultural fields. CO2& temperature& humidity detection to control CO2 generator and ventilation, photosensitive sensor detection to control CO2 generator day/night working mode. Power supply: (A): 200/240VAC   (B): 100/120VAC              (C): 24VAC
   F2000IAQ-CO2-5003D -(A)/(B)(C)	Special for green house and other agricultural fields. CO2&temperature&humidity detection to control CO2 generator and temperature & humidity devices, photosensitive sensor detection to control CO2 generator day/night working mode. RS485 communication interface. Power supply: (A): 200/240VAC (B): 100/120VAC (C): 24VAC
