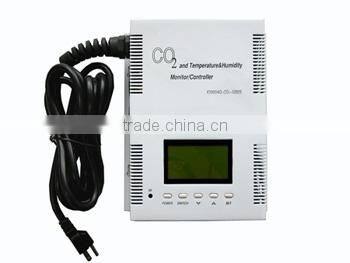

Top Programmable Co2,,temperature, Humidity Controller for Greenhouse

Top programmable co2,,temperature, humidity controller for greenhouse

  CO2 Controller Application

F2000IAQ-CO₂–5202S/5203S multiple controller is used to control CO₂level, temperature and humidity in order to offer good environment for plantsgrowth. It can control a CO₂generator and a ventilator directly with max. 16amp together, and itprovides RS485 network interface to be connected with a PC or other systems. Itwill be used in below application:

1. Greenhouses,which include vegetable planting houses and flowers   planting houses, etc.
2. Modernhydroponics gardens
3. Otherrelevant fields of agriculture
4. Keepfood and vegetable on fresh

5. ¨       Specifications



   Gas detected	Carbon Dioxide (CO2)
   Sensing element	Non-Dispersive Infrared Detector (NDIR)
   Temperature influence	0.2% FS/°C
   Temp. influence correction	Self compensation
   Precision	@22°C(72°F)±40ppm + 3% of reading
   Stability	<2% of FS over life of sensor (15 yr typical)
   Calibration interval	ABC Logic Self Calibration Algorithm
   NDIR life	15 years
   Flow rates	Diffusion version 80 ~ 120 cc/min
   Non linearity	<1% of FS
   Pressure dependence	0.13% of reading per mm Hg
   Altitude calibration	Programmable from 0-9,900m in 100m increments
   Response Time	<2 minutes for 90% step change
   Signal update	Every 2 seconds
   Warm up time	2hours (first time) 2 minutes (operation)
   CO2 measuring range	0~2,000ppm (default) 0~20,000ppm 0~50,000ppm
   CO2 setting & Display resolution	1ppm
   Temperature sensor	NTC
   Humidity sensor	HS series capacitive sensor
   Temperature measuring range	0~50°C(32~122°F)
   Temperature setting range	5~45°C(41~113°F)
   Humidity measuring range	0~99%RH non condensing
   Humidity setting range	5~95%RH non condensing
   Relay output	Two or three relays with power supply outputs to control CO2 and ventilation or control CO2 , temperature, humidity. 16 Amp maximum combined load
   Communication interface	RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection
   Power supply	220VAC~240 VAC or 100~120VAC, 50/60HZ±10%, selection with orders
   Consumption	5 W max. ; 3.5 W average
   Operation conditions	0~50°C; 0~95%RH, non condensing
   Housing	Metal material
   Net weight/ Gross weight	2.2Kg /2.5Kg
   Max. Dimensions	240mm×160mm×65mm
   BNC of power	American standard / European standard selectable
   LCD	Green/ Orange backlight: 88 mm×54mm
   Quality system	ISO 9001



   ¨       Models

   Model	Description
   F2000IAQ-CO2-5202S -(A)/(B)	Special for green houses and other agricultural fields. CO2 & temperature& humidity detection to control a CO2 generator and a ventilator, photosensitive sensor detection to control CO2 generator day/night working mode. RS485 communication interface. Power supply:   (A): 200/240VAC   (B): 100/120VAC 50Hz
   F2000IAQ-CO2-5203S -(A)/(B)	Special for green houses and other agricultural fields. CO2&temperature&humidity detection to control a CO2 generator and temperature & humidity devices, photosensitive sensor detection to control CO2 generator day/night working mode. RS485 communication interface. Power supply:   (A): 200/240VAC   (B): 100/120VAC 50Hz
