Digital temperatrue humidity sensor, greenhouse temperature
controller with 4 relays, enable programming on PC.
Technical data
Item mode | A-TH6 |
Temp. measurement range | -40~+100 degree |
Temp. measurement accuracy | 0.5 degree |
Humid. measurement range | 0-100RH |
Humid. measurement accuracy | 1 RH |
Output mode | RS485/Relay |
Type of alarm | Threshold can be set up |
Communication distance | 1200m |
Power supply | DC12V/1A |
Storage temperature | -20~+60 degree |
Display mode | LCD |
Way to install | Installation wall mount |
Dimension | 145mm*90mm*37mm |
Function Introduction

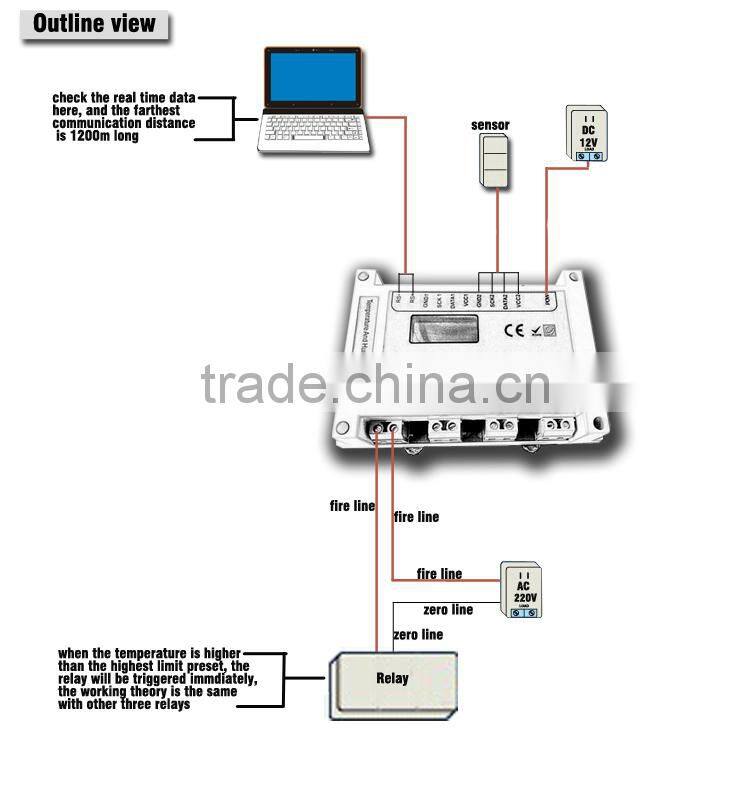

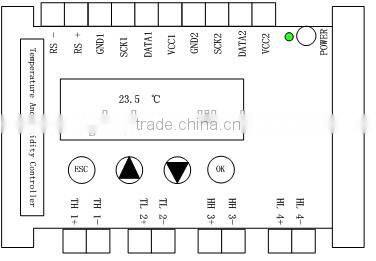

1.Item outline

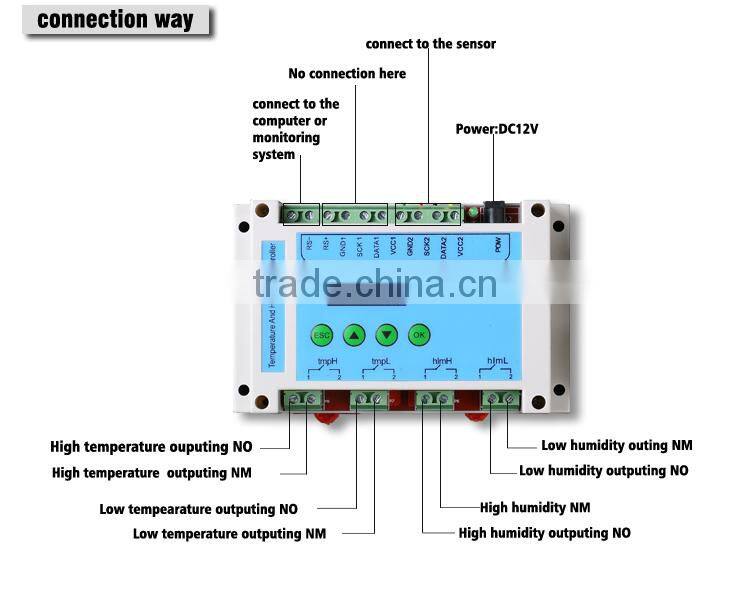

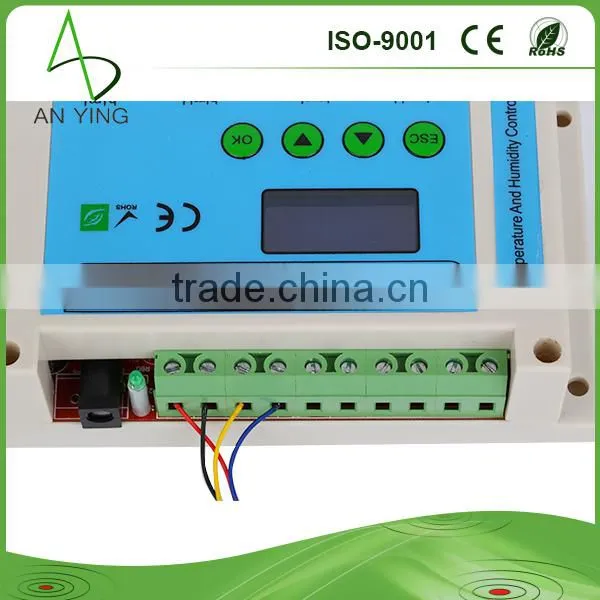

2.Interface Definition
Interface | Connected to |
RS- | RS485 - |
RS+ | RS485 + |
GND1 | Non connection here/Pending |
NC1 | Non connection here/Pending |
DATA1 | Non connection here/Pending |
VCC1 | Non connection here/Pending |
GND2 | GND |
SCK2 | SCK |
DATA2 | DATA |
VCC2 | VCC |
POWER | AC 12V |
TH1+ | High temperature outputting NO |
TH1- | High temperature outputting NM |
TL2+ | Low temperature outputting NO |
TL2- | Low temperature outputting NM |
HH3+ | High humidity outputting NO |
HH3- | High humidity outputting NM |
HL4+ | Low humidity outputting NO |
HL4- | Low humidity outputting NM |

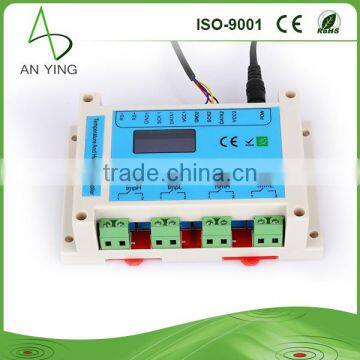

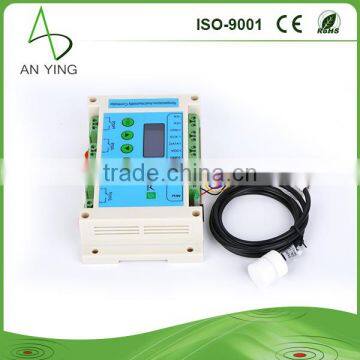

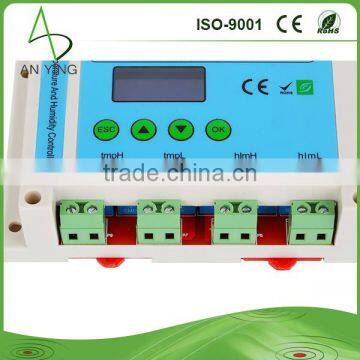

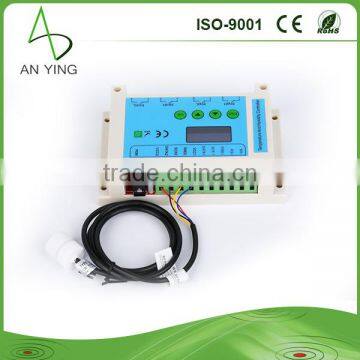

Photo showing
Software for real -time monitoring

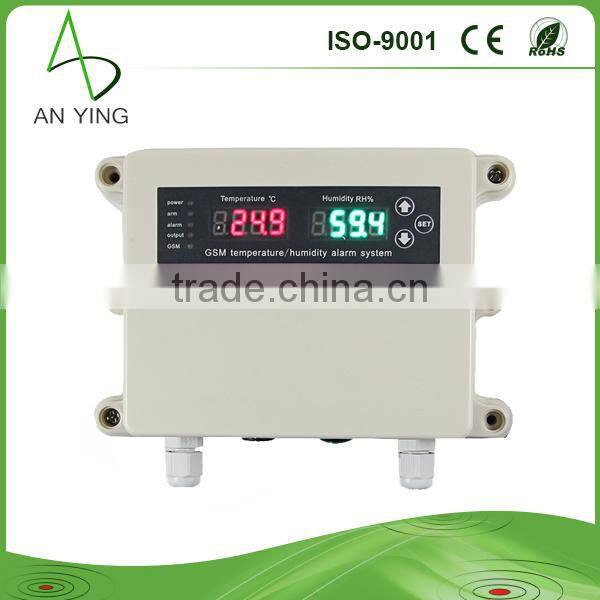

our temperature and humidity controllers series has other several models.
You can click the picture to know more details.
Quality is our culture!
