Trade Assurance Supplier Humidity & Temperature Meter, GSM Humidity and Temperature Watches With Fast Delivery

Shenzhen An Ying Technology Co., Ltd.

US$ 220 - 2,230 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

A-TH8

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AY

Model Number A-TH8

Usage Other, GSM Temperature & Humidity Alarm system

Theory Temperature Controller

Accuracy 100%

Temperature Range -20 to +80 degree, -20℃~80℃ OR -40℉~212℉

Product Description

Competitive Advantage:

Based on the high sensitivity of our Temperature and Humidity Series, it contains reliable integrated GSM alarm module.
Compared with traditional Temperature and Humidity Controller, you don’t have to equip redundant GMS module, all you need is just a standard SIM card, install it inside the A-TGSM and it give you the great experience of protection.

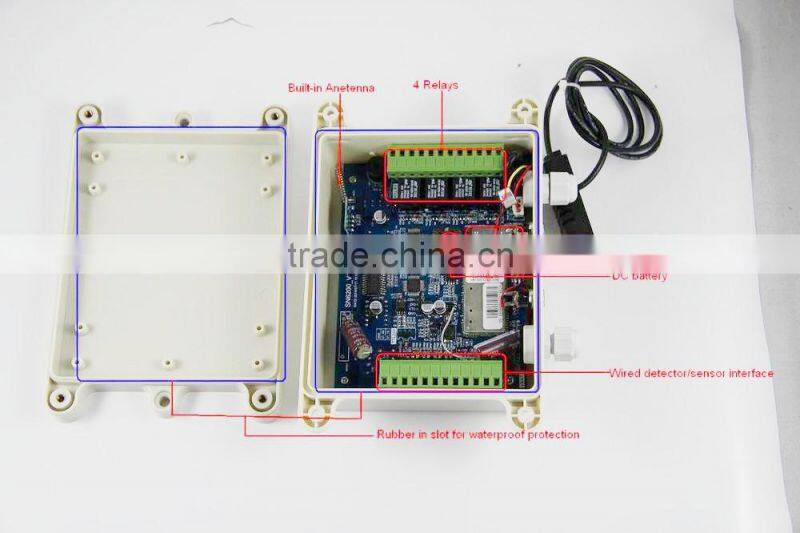

We also separately equip A-TGSM with relay input and relay output, it means you could connect other sensor to A-TGSM to form a complete alarm system in your place.
With inside battery, even the electricity is cut off, everything is still controlled in your hand

Parameter of GSM Temperature & Humidity Alarm system

Module	Specification	Value
Main Part	Wireless Frequency	315/433 Mhz (Default set before buying)
	GSM Bands	850/900/1800/1900 MHZ
	Working Voltage	DC 5V 2 A
	Back-Up Battery	1000MAH/4.2V lithium Battery
	Stand-by Time of Battery	Over 24 hours
	Wireless Compatibility	1. 2262/2260 encoding IC, resistance: 4.7M 2. 1527 encoding IC, resistance:430K 3. Various types of CUP code, conforming to above 1,2 regulation 4. Frequency conforms to alarm system default set frequency
Remote Control	Voltage	12 V DC
	Static Current	0 uA
	Working Current	<20mA
	Transmitting Frequency	315MHz/433MHz (Default set)
	Wireless Distance	≥50m(Open Space)
	Arm	All detectors/Sensors armed
	Panic Key	Alarm immediately in emergency
	Disarm	Exit armed/ alarming status
AC Adapter	Input Voltage	220V AC
	Input Frequency	50 Hz
	Output Voltage	5 V DC
	Load Current	2 A
	Working Temperature	-10℃--75℃
Siren	Input Voltage	5V DC
	Working Current	180 mA
	Sound	110 dbs
