2017 Newest Temperature Humidity Sensor, RS - 485 Output, With LCD Showing Data, Enable Software Control & Management
"Quality is Our Culture!"
Click the picture or the title to know more details.
| | |

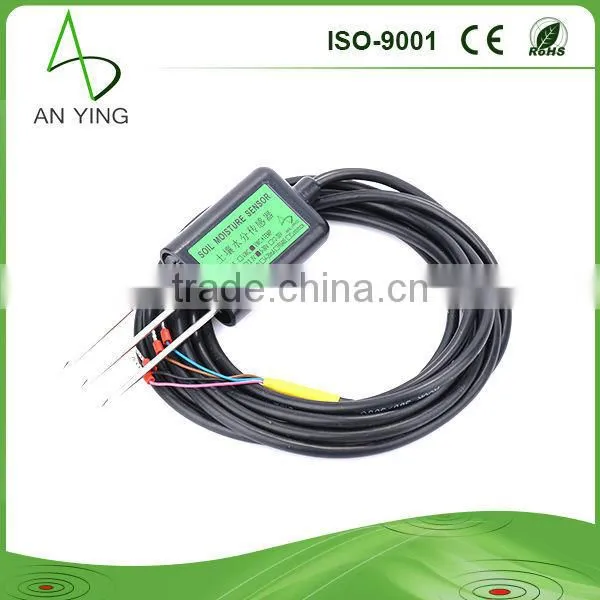

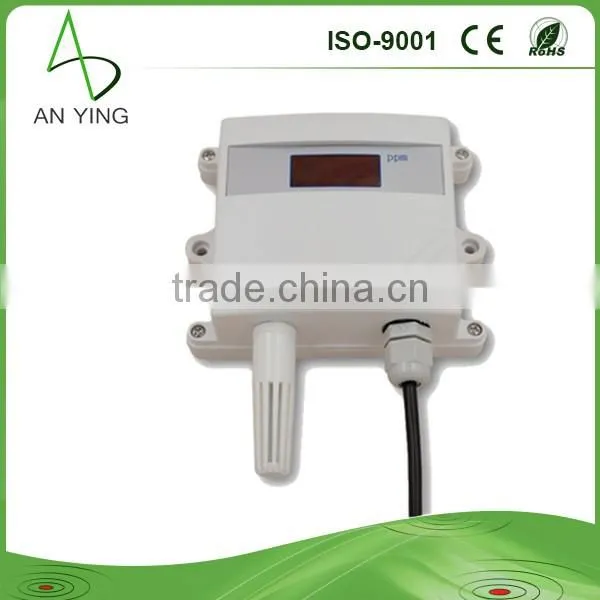

| Anying Temperature & Humidity Sensor TH6 Unique design, easy to install Relay & RS485 Output with external sensor Enable Software Management | Anying Solid Moisture & Temperature Sensor High-sensitivity Enable Software Management Optional 4-20 mA, 0-2V, RS485 output Be compatible to all kinds of solid Endure long time electrolysis | Anying CO2 Sensor SM3370M
High sensitive infrared sensor probe Self-diagnosis function Convenient installation and maintenance Optional: 4~20mA , 0~5V , 0~10V or RS485 output |
| | |

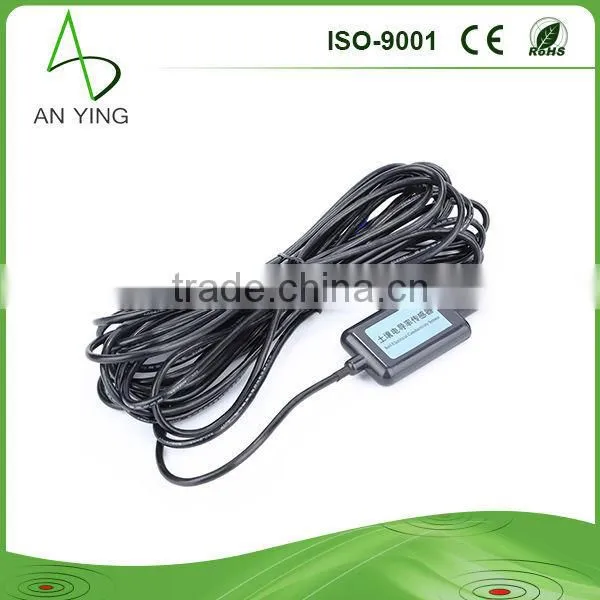

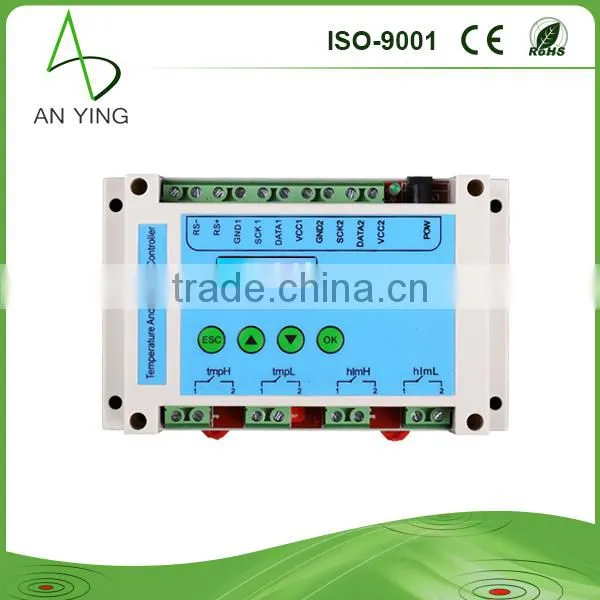

| Anying Humidity & Temperature Controller TH1 Clear LCD screen to show real-time data RS485 Output with built-in sensor Enable Software Management | Anying Conductivity Sensor A-EC01 High sensitivity and stability 3 Options of Output signals: Voltage output:0~5V or 0~2V Current output:4-20mA Digital output:RS485

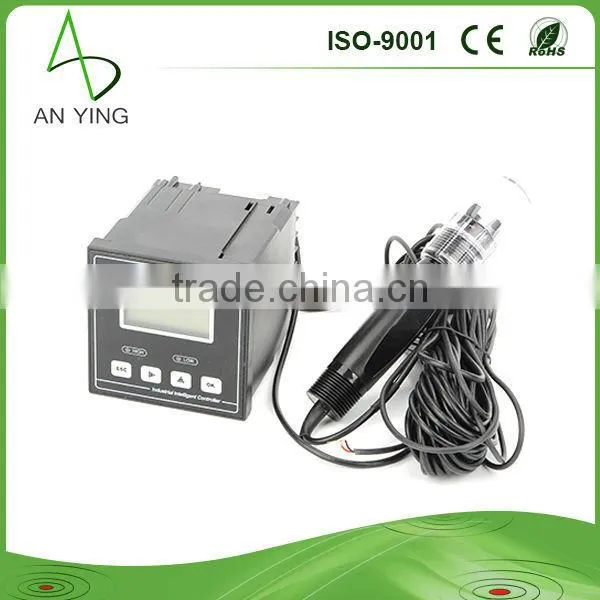

| Anying PH Sensor A-PH01 Standard & friendly English interface Equipted with relays Together with temperature sensor 3 optional output: 0-5V/4-20mA/RS485 3 optional power supply: 220V AC/24V AC/24V DC
|

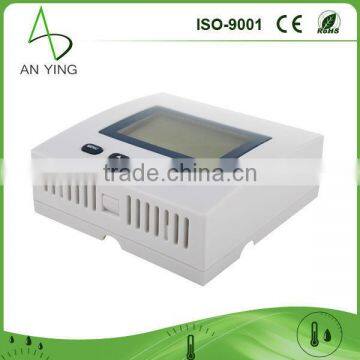

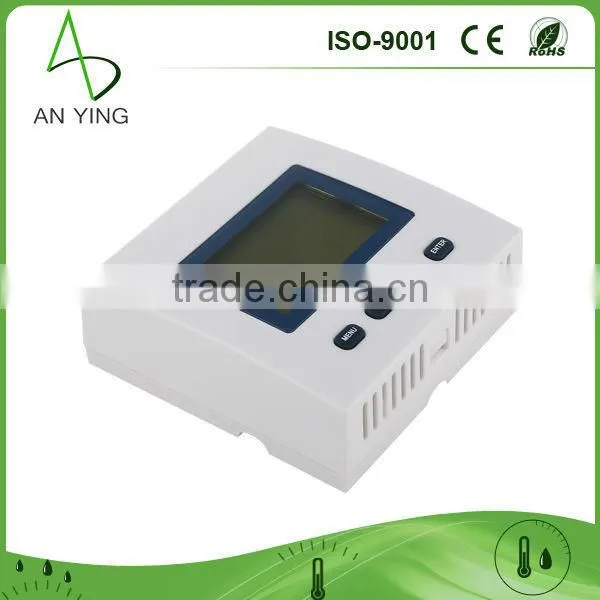

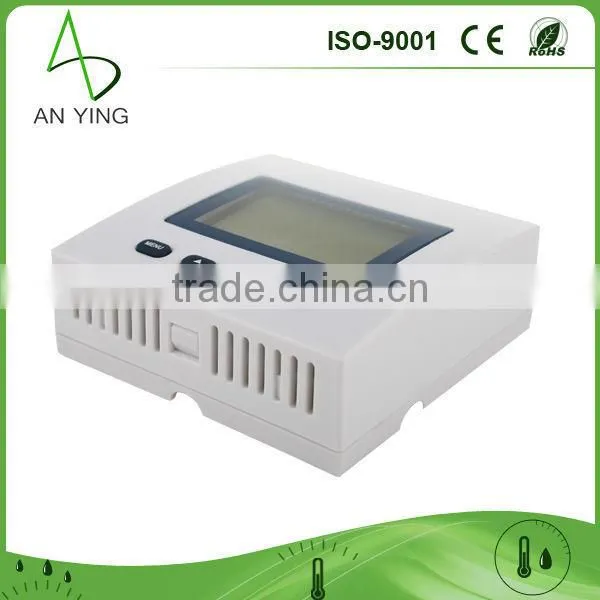

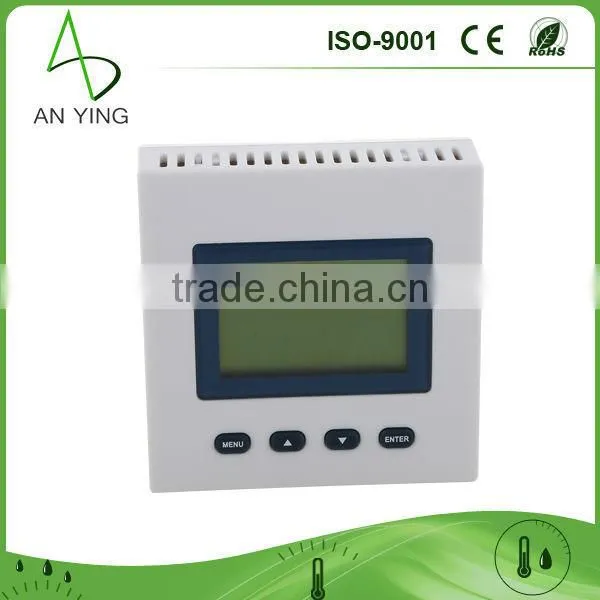

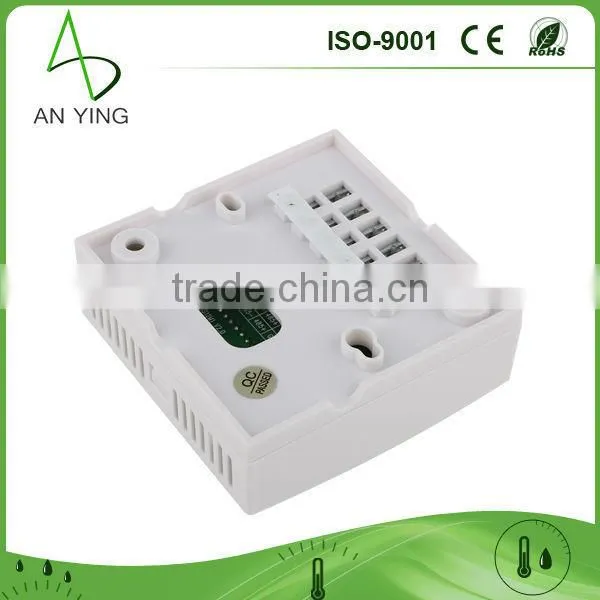

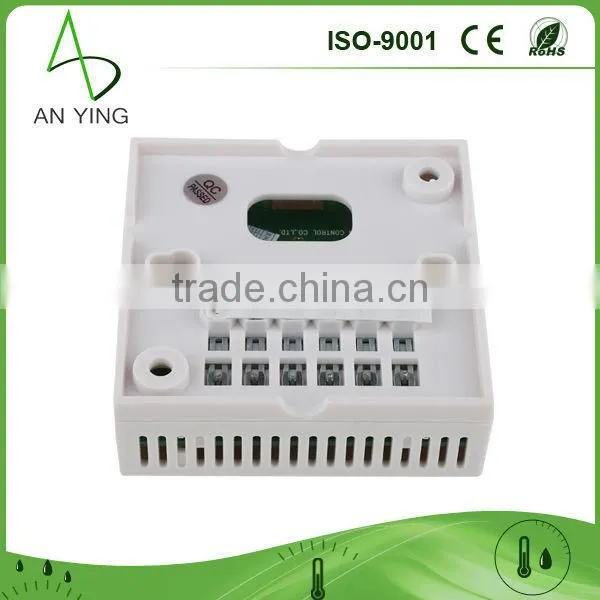

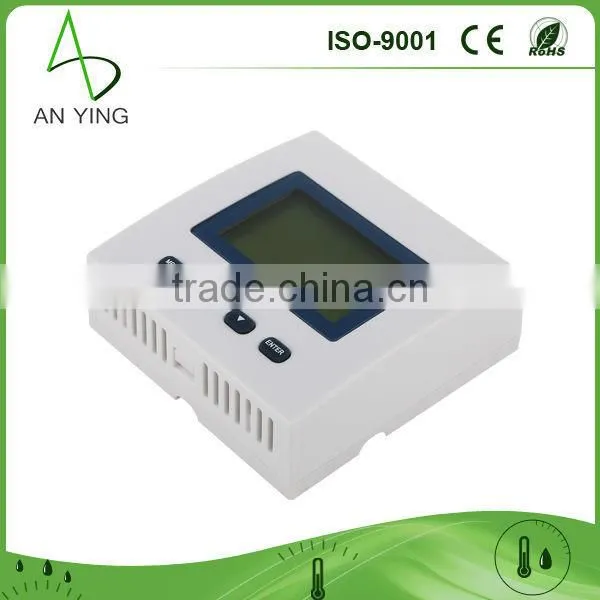

A - TH1 Precise temperature and humidity sensor is using the latest patented technology of the susceptible device susceptor of semiconductor device design scheme, to measure the temperature and humidity of the indoor environment, and of the integrated intelligent monitoring module. Products not only has direct display, high precision, low cost, good appearance, easy installation, etc., but also especially has the self-recovery and self-calibration function of the patented. Therefore, the product is in high measuring accuracy, good long-term stability. Our company offers many kinds of models, such as RS485 output interface, Stem node output interface, 4-20 mA analog output. To provide users with full range of temperature and humidity monitoring solution. It has been widely used in communication room, IDC data equipment room, air conditioning room, laboratory, library, office and other places of the indoor temperature and humidity measurement.
The characteristics of product
- Using the latest patented technology sensitive element,has the characteristics of self-recovery and self-correction function, high accuracy, and good consistency.
- Big high brightness LCD display screen,intuitive observation, easy operation.
- Temperature unit selection:degree centigrade(℃),Fahrenheit degree(℉) can be setting,can be used on a global scale;
- The temperature, humidity error correction Settings,is convenient to check on a regular basis ;
- It can facilitate remote monitoring system integration,with RS485 interface,adopt stander MODBUS protocol.
- Special air duct design,Circuit temperature rise does not affect performance detection of the sensor.
- External ports have resistance to electromagnetic interference design,and high reliability.
- There is the defence function of the power input.There is no damage to equipment if the power input of plus or minus .
- Modular structure, installation, maintenance is convenient.
Technical Parameter
product model | A-TH1 | |
Output mode | RS485 Port | |
working voltage | 12VDC(6V~15VDC) | |
The range of measurement | Temperature range | -20℃~80℃ OR -4℉~176℉ |
Humidity range | 0~100%rh | |
Measurement accuracy | Temperature error | <±0.5℃,At 25 ℃ when testing. |
Humidity error | <±5%RH,At 25 ℃ when testing. | |
Communication interface | Physical interface | RS485 |
Transmission distance | 1200m,STP | |
Address range | 1-254.Through the Settings | |
communication protocol | MODBUS-RTU protocol | |
Baud rate | 2400, 4800, 9600 can be chosed,Factory Default 9600bps. | |
Data format | N, 8, 1 | |
EMC index | EFT(pulse train) | difference module±2KV |
ESD(static electricity) | Contact discharge±6KV ,air discharge±8KV | |

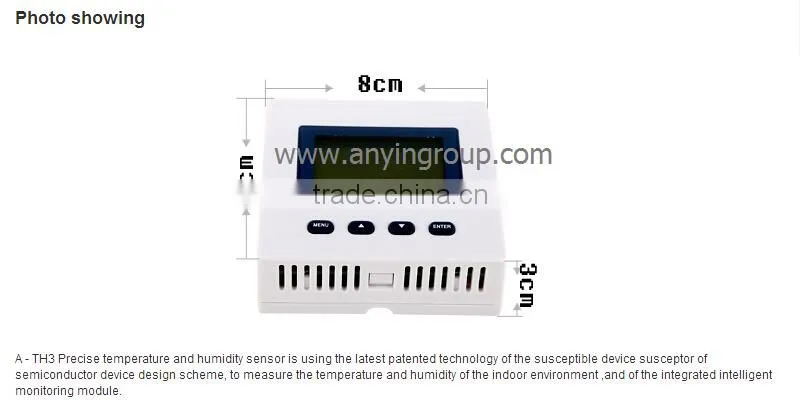

Dimension | 80*80*30mm | |
Weight | 250g | |

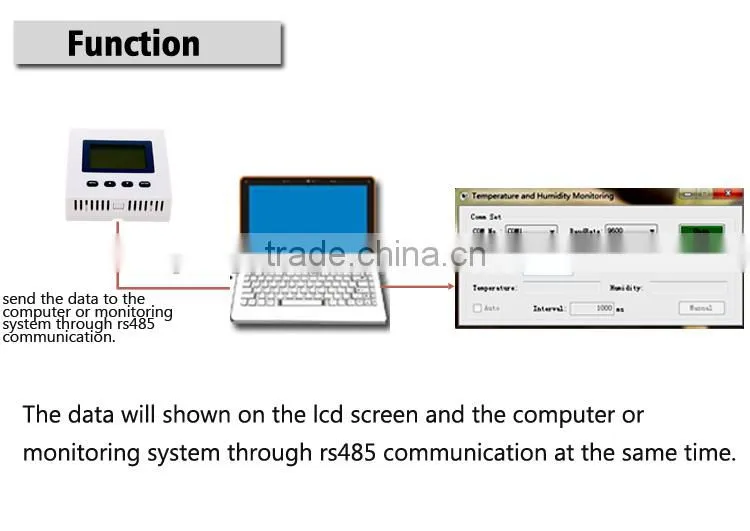

How to Inspect Data?
OR
The OEM service is offered if needed.
