Introduction

No external power but adopts a particular RS-232 charge pump to drive the system, and gains electricity without initializing the RS-232 series interface. An internal zero delay auto transceiver and particular I/O circuit automatically control the data stream direction instead of an handshake signal (for example RTS, DTR etc).There by in guarantees the function under RS-485 without changing the program compiled under RS-232 half-duplex mode and assures the adaptation to current operation software and interface hardware. The transmission rate is 300-115.2kbps.

Is capable of applying between host computers, host computer and is extensions or external equipment and forms dot to dot, dot to dots remote and multi-communication network, It implements multi-machine response communication and commonly used in systems of industrial automation control all-one-card. Door safe, car parking, ATM, bus charge, eatery sell out, staff attendance management, and toll highway etc.

Rs232 To Rs485 Interface Converter Hub

Feature

1. Interface feature: RS-232C, RS-485 standard interface compatible with EIA TIA

2. Electric interface: RS-232 end DB9 hole connector RS-485 end DB9 needle connector with connection pole.

3. Working mode: asynchronism half-duplex

4. Transmission media: twisted -pair or STP

5. Transmission rate: 300-115.2KBPS

6. External discharge dimension: 63mm - 25 to 70 degree C, relative humidity 5%to95%* 33mm * 17mm

7. Working circumstance:

8. Transmission distance: 1,200m(RS-485 end) 5m(RS-232 end)

9. Operating system: DOS/WIN95/WIN98/WIN2000/NI/XP/Linux and so on

10. Applies to all communication software, plug and pay

11. Max 32  pieces devices can connect

12. Power: Unique serial port charge pump driving technology, no need external power, real 3 wire communication (TXD, RXD, GND), no need initialize serial port

13. Auto send/receive data, without external flow control signal (RTS)

RS-232C bay-line distribution

Female (PIN)   RS-232C interface singnal

1                                  Earth protection

2                           Receive data SIN(TXD)

3                            Send data SOUT(TXD)

4                           Data terminal ready DTR

5                                Ground signal GND

6                               Data setting ready DSR

7                                  Request send RTS

8                                  Clear send CTS

9                                  Ring indication RI

RS-485 data output & connector and bay-line distribution

Male(PIN)    Data Output    RS-485 Half-Duplex

1                       T/R+               RS-485(A+)

2                       T/R-                RS-485(B-)

3                       RXD+                 N/C

4                       RXD-                  N/C

5                       GND               Ground Wire

6                       VCC          +5V Standby Power input

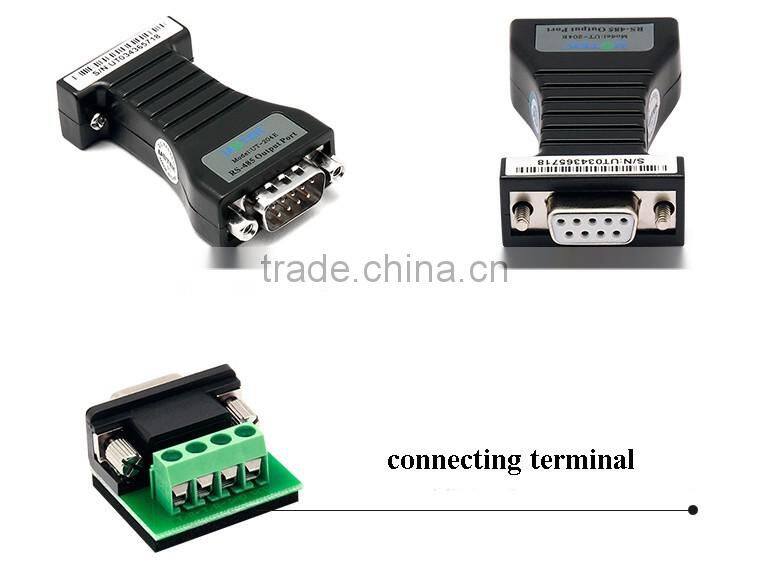

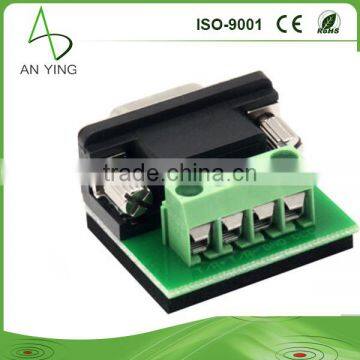

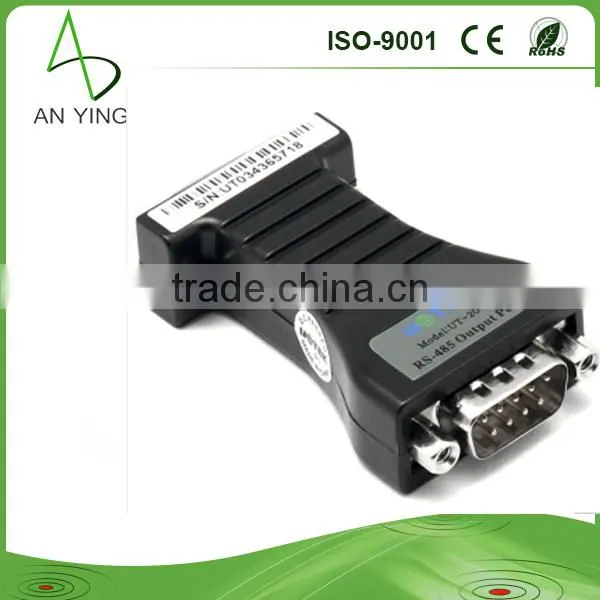

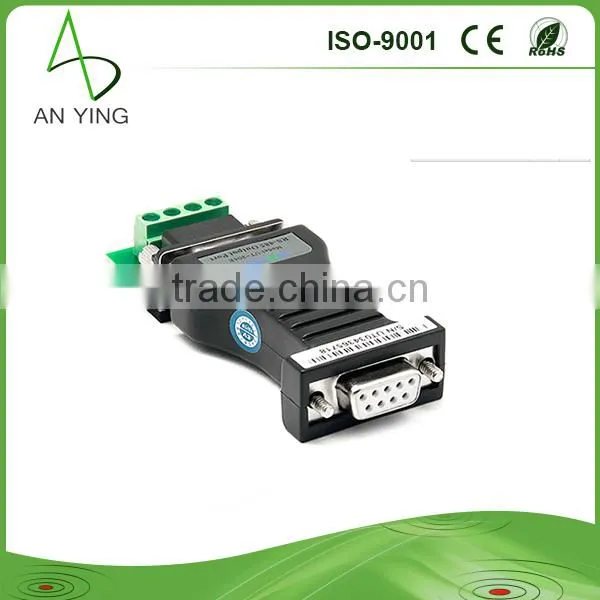

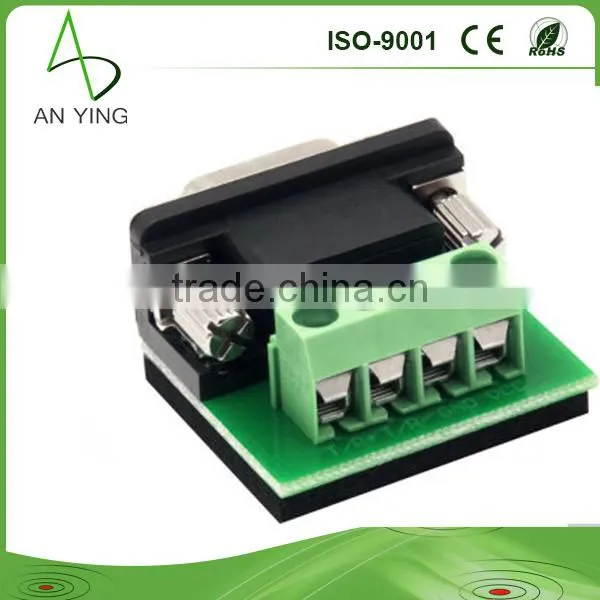

Product Picture
