2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine

2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-1

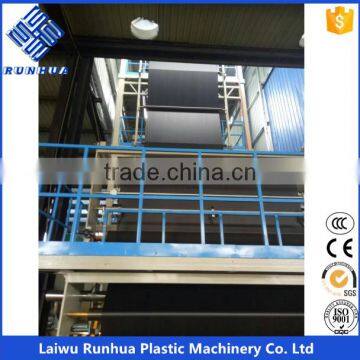

2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-2
2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-3

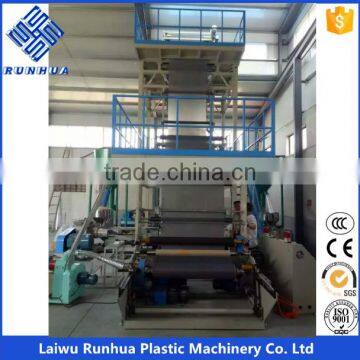

2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-4

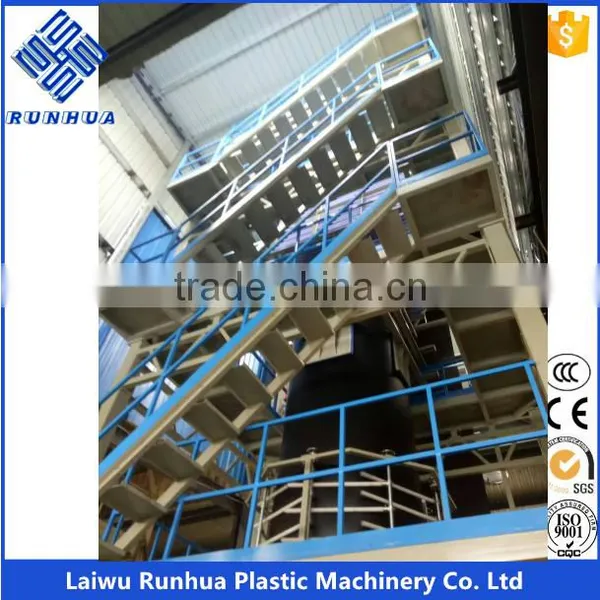

2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-5
2 Layers co Extrusion LDPE Mailing Bag Film Blowing Machine photo-6
US$ 10,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Shandong, China
Brand Name RUNHUA
Model Number 3FM1100
Voltage 380V/50HZ(can adjust)
Power(W) 90KW
Dimension(L*W*H) 9mX5.5mX6.5m
Weight 12000kg
Certification CE, ISO9001, FTA, CO, SGS, CIQ
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

2 layers co extrusion LDPE mailing bag film blowing machine

  2 layers co extrusion LDPE mailing bag film blowing machine

Product Overviews

Rotary die head film blowing machine main is one good type film blowing machine. As polyethylene film have widely usage, the film quality is better than other machine, there is a large demand for this machine.

Runhua as an professional film blow machine manufacturer, we focus on film blowing machine's research and development. We introduce the advanced technology of domenstic and abroad, after the upgrading, we now own mature technology of related. And we can manufacturer various type of this machine, our engineer has more than 30 years working experience, so if you want to know more about this machine please feel free to tell us. Thank you and best regards.

2 layers co extrusion LDPE mailing bag film blowing machine



Main parameters



Type

3FM1100-Ⅰ

3FM1300-Ⅰ

3FM1600-Ⅰ

3FM2200-Ⅰ

Max.lay-flat width

1000

1200

1500

2000

Raw material

LLDPE,LDPE,HDPE,mPE,EVA

Layer number

3

Screw diameter

φ45/φ45/φ45

φ45/φ45/φ45

φ45/φ55/φ45

φ55/φ65/φ65

Max.  capacity

120Kg/h

(LDPE)

120 Kg/h

(LDPE)

160 Kg/h

(LDPE)

200 Kg/h

(LDPE)

Die (mm)

φ200

φ300

φ350

φ500

Air ring structure

Dyke and dam mode,even air structure

Length of haul-off roll

1100

1300

1600

2200

Wind-up speed

3~30m/min

Total power

90

92

110

135

Overall dimension

9X5.5X6.5

9X5.7X6.5

9X6.5X7

9X7.5X8

Weight  (T)

12

12.5

14

16



Note: These parameters only represent a little part of our machine, so if you want to know more, please feel free to contact us.





Detailed Images



Rotary die head          Brand: Runhua

1. Material: 45# Steel

2. Heater: Cast aluminum heater,

3. Type: 3 layer coextrusion spiral type die

2 layers co extrusion LDPE mailing bag film blowing machine

Extruder    Brand:Runhua

Advantage:

1.  Feeding zone is separated with heater

2. With automatic temperature control, adopts cast aluminum heater

3. With running system.

2 layers co extrusion LDPE mailing bag film blowing machine

Rotary traction device       Brand: Runhua

Advantage:

1. The drive roller is steel roller with hard chrome plating, the rubber roller is NBR roller, the hardness is 60 Shaw

2. With meter counter, so the machine give a remind, when the film roller reach certain length

3. The rotary traction can guarantee the film thickness even and improve the strength of the film.

2 layers co extrusion LDPE mailing bag film blowing machine

Rewinder            Brand: Runhua

1. Winder with torque motor.

2. Whe shaft winder control by air cylinder.

2 layers co extrusion LDPE mailing bag film blowing machine
Application
2 layers co extrusion LDPE mailing bag film blowing machine
Our Services

2 layers co extrusion LDPE mailing bag film blowing machine

1 year warranty for whole machine, with enough spare parts,  we supply top quality and service.Engineers available to serve for customers overseas.

Consulting Services

Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.

Installation Services

Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.

Client training Services

We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.

After Sale Service

We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.

Packaging & Shipping

2 layers co extrusion LDPE mailing bag film blowing machine

Company introduction
Laiwu Runhua plastic Machinery Co., Ltd  --Professional film blowing manufacturer, and achieve a great success on agriculture film blowing machine, and geomembrane making machine.

Main products: Agriculture film machine(1-24 meters), Geomembrane film machine(max. width: 9.5m), Blown stretch film machine, High barrier film machine, Stretch film machine, Plastic wire drawing machine.

Our motto: Quality comes first, Customer is the upermost

Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province

2 layers co extrusion LDPE mailing bag film blowing machine
