2 layers PE mailing bag film blowing machine

Rotary die head film blowing machine main is one good type film blowing machine. As polyethylene film have widely usage, the film quality is better than other machine, there is a large demand for this machine.
Runhua as an professional film blow machine manufacturer, we focus on film blowing machine's research and development. We introduce the advanced technology of domenstic and abroad, after the upgrading, we now own mature technology of related. And we can manufacturer various type of this machine, our engineer has more than 30 years working experience, so if you want to know more about this machine please feel free to tell us. Thank you and best regards.
Type | 3FM1100-Ⅰ | 3FM1300-Ⅰ | 3FM1600-Ⅰ | 3FM2200-Ⅰ |
Max.lay-flat width | 1000 | 1200 | 1500 | 2000 |
Raw material | LLDPE,LDPE,HDPE,mPE,EVA | |||
Layer number | 3 | |||
Screw diameter | φ45/φ45/φ45 | φ45/φ45/φ45 | φ45/φ55/φ45 | φ55/φ65/φ65 |
Max. capacity | 120Kg/h (LDPE) | 120 Kg/h (LDPE) | 160 Kg/h (LDPE) | 200 Kg/h (LDPE) |
Die (mm) | φ200 | φ300 | φ350 | φ500 |
Air ring structure | Dyke and dam mode,even air structure | |||
Length of haul-off roll | 1100 | 1300 | 1600 | 2200 |
Wind-up speed | 3~30m/min | |||
Total power | 90 | 92 | 110 | 135 |
Overall dimension | 9X5.5X6.5 | 9X5.7X6.5 | 9X6.5X7 | 9X7.5X8 |
Weight (T) | 12 | 12.5 | 14 | 16 |
Note: These parameters only represent a little part of our machine, so if you want to know more, please feel free to contact us.
| ||
![]() | ||

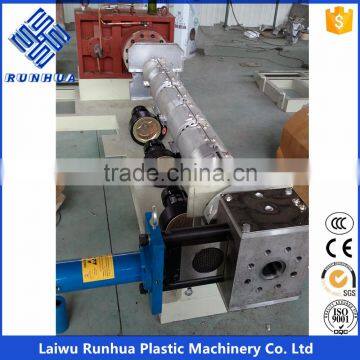

Extruder Brand:Runhua Advantage: 1. Feeding zone is separated with heater 2. With automatic temperature control, adopts cast aluminum heater 3. With running system. | ||
![]() | ||
Rotary traction device Brand: Runhua Advantage: 1. The drive roller is steel roller with hard chrome plating, the rubber roller is NBR roller, the hardness is 60 Shaw 2. With meter counter, so the machine give a remind, when the film roller reach certain length 3. The rotary traction can guarantee the film thickness even and improve the strength of the film. | ||
![]() | ||
Rewinder Brand: Runhua 1. Winder with torque motor. 2. Whe shaft winder control by air cylinder. | ||
![]() | ||

1 year warranty for whole machine, with enough spare parts, we supply top quality and service.Engineers available to serve for customers overseas.
Consulting Services
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
Installation Services
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
Client training Services
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
After Sale Service
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.

Main products: Agriculture film machine(1-24 meters), Geomembrane film machine(max. width: 9.5m), Blown stretch film machine, High barrier film machine, Stretch film machine, Plastic wire drawing machine.
Our motto: Quality comes first, Customer is the upermost
