aba abc plastic pe blown film extrusion machine
- 200 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | RUNHUA | Model Number | 3FM1600 | |
| Voltage | 380V/3PH/50HZ | Power(W) | 110kw | |
| Dimension(L*W*H) | 9000X6500X7000 mm | Weight | 14000kg | |
| Certification | ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
aba abc plastic pe blown film extrusion machine
RUNHUA Small-sized Packaging Film Blowing Line
Film layers co extrusion: 1-7 layer
Film kinds: common film, shrink film, stretch film, high-barrier film
Film lay-flat width: 300-2500mm
Film thickness: 0.04-0.1mm
Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials
Consisted parts of one set machine
1. Single-screw Extruder
2. Screen changer
3. Die head
4. Air ring(cooling fan and connecting soft tube)
5. Herringbone, plugboard and sizing cage
6. Traction device
7. Rewinder device
8. Matched spare parts one set
Options:
1. Rotary die head
2. Corona treater
3. Up-blowing rotation
4. Autoloader
5. Edge recycling machine
6. Automatic double rewinder
7. PLC control system
Extrusion process
Plastic melt is extruded through an annular slit die, to form thin walled tube
Air is intruduced in the centre of the die to blow up the tube like a balloon(IBC)
Air ring blows onto the hot film to cool it(outside and inside the tube)
The tube passes through nip rolls where is flattened
Collapsed tube is taken back down the extrusion tower via more idler rollers
On winder the tube or film is wound into rolls | |
Specification parameters for aba abc plastic pe blown film extrusion machine
Three layer
Type | 3FM1100-I | 3FM1300-I | 3FM1600-I | 3FM2200-I | |
Max.lay-flat width | 1000 | 1200 | 1500 | 2000 | |
Raw material | LLDPE, LDPE, mPE, EVA LLDPE, LDPE and blend compound, mPE, EVA | ||||
Layer number of laminating | 3 | ||||
Screw diameter | φ45/φ45/φ45 | φ45/φ45/φ45 | φ45/φ55/φ45 | φ55/φ65/φ65 | |
Max. plasticizing capacity (LDPE) | 120Kg/h
| 120 Kg/h
| 160 Kg/h
| 200 Kg/h
| |
Die diameter(mm) | φ200 | φ300 | φ350 | φ500 | |
Air ring structure | Dyke and dam mode,even air structure | ||||
Winding roller length(mm) | 1100 | 1300 | 1600 | 2200 | |
Haul-off.Wind-up speed | 3~30m/min | ||||
Total power(KW) | 90 | 92 | 110 | 135 | |
Overall dimension(mm) | 9000X5500X6500 | 9000X5700X6500 | 9000X6500X7000 | 9000X7500X8000 | |
Weight (kg) | 12000 | 12500 | 14000 | 16000 | |
One layer
Two layer
Type | 2FM1100-I | 2FM1300-I | 2FM1600-I | 2FM2200-I |
Max.lay-flat width(mm) | 1000 | 1200 | 1500 | 2000 |
Raw material | LLDPE, LDPE and blend compound, mPE, EVA | |||
Screw diameter(mm) | φ45/φ45 | φ45/φ45 | φ50/φ50 | φ55/φ55 |
Max. plasticizing capacity | 90Kg/h
| 90 Kg/h
| 110 Kg/h
| 150 Kg/h
|
Die diameter(mm) | φ200 | φ300 | φ350 | φ500 |
Air ring structure | Dyke and dam mode, even air structure | |||
Length of traction roller(mm) | 1100 | 1300 | 1600 | 2200 |
Traction winding speed | 3~30m/min | |||
Total power (kw) | 60 | 62 | 70 | 90 |
Overall dimension(mm) | 7000X5500X5000 | 7000X5700X5000 | 7500X6000X7000 | 7500X6600X7600 |
Weight (kg) | 10000 | 11000 | 12000 | 12500 |
Machine extruder:
Own design, screw with structure of mixer, barrier, distributing etc.
Matched with standard big power motor.
Matched with big Model gearbox
Die head:
Large-scale composite die, center-feed, multi-layer co extrusion, rotary or fixed
Matched with load-bearing car
Chrome plated and polishing treatment
Haul-off unit
One drving steel roller, one rubber driven roller
Pneumatic air cylinder control
Built-in stepwise structure haul-off tower, conveneince for operators to go up and down
Rewinder
Back-to-back type, single or double surface, fraction rewinding
Automatic roller change optional

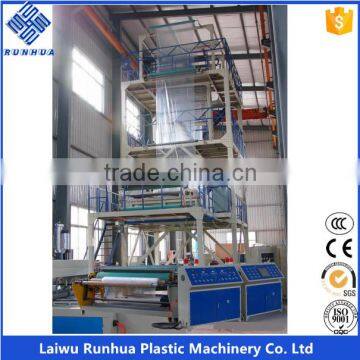

Whole machine view
The Terms and Conditions 1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP 2. Transportation way: ocean or land 3. Payment terms: 30% T/T, 30% T/T + 70% L/C, or 100% L/C(for specilized country) 4. Package: disassembled nude packing in container, accessories with stretch film packing 5. Warranty: 12 months after develiry
|
|
RFQ 1. Manufacturer or Trading Company? Manufacturer 2. Customized production or flow line production? Customized production, configuration as your specific demands 3. Provided technical support or not? We provide full set technical supports, for machine design, raw material ratio application, film economic prodution etc, engineers available for oversea installation guidance 4. Can we check running machine before order? Yes, we have domestic customers here, you can check the machine in working condition in their workshop 5. Have you exported before? We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan, South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc
|
