Specifications
high quality,reasonable pricehigh efficiency
saving energy
long life
Screw for plastic blowing molding film machineExtr
Screw for plastic blowing molding film machine Extruder

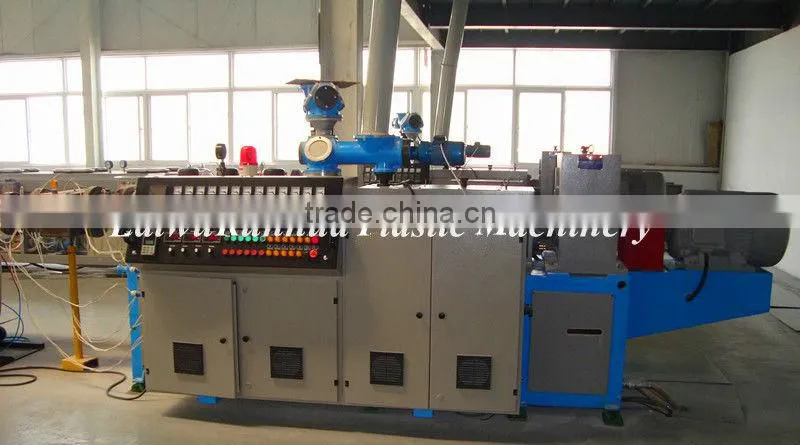

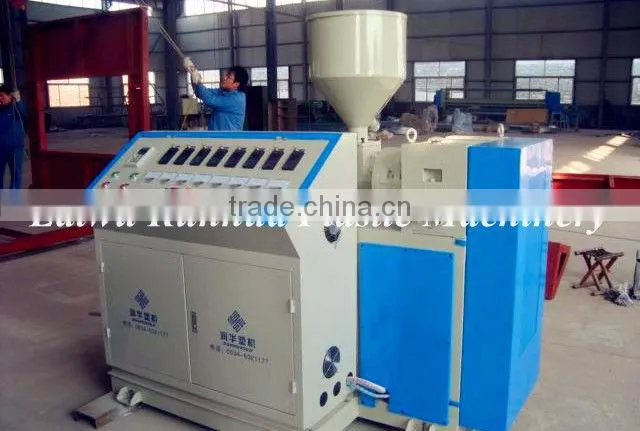

Since the designing and development of many years, the plastics twin screw extruders of the brand “RUN HUA” have formed the extruder series of. many kinds and diversified specifications. The diameter scopes of the conical twin screw are from 51mm to 92mm, and the parallel twin screw are 65mm to 145mm. They can be used to process the products, such as PVC pipe, plate, cable, granule and so on. The extruder series own a lot of advantages: high efficiency, saving energy ,and long life etc.
model | Screw Diameter(mm) | Working Length mm |
Ratio(L/D) | Screw Type | Screw Speed(r/min) | Max Output(kg/h) | Driving Power(kw) | Heating Power(kw) | Center Height(mm) | Dimension (LxWxH)mm |
SJSZ-51 | 51/105 | 1065 |
| Conical | 3-34 | 110 | 18.5 | 12 | 1000 | 3620x1050x2157 |
SJSZ-55 | 55/110 | 1200 |
| Conical | 3-34 | 130 | 22 | 18 | 1000 | 3500x1000x3000 |
SJSZ-65 | 65/132 | 1440 |
| Conical | 1-34.7 | 235 | 37 | 26.4 | 1000 | 3550x1500x1550 |
SJSZ-80 | 80/156 | 1800 |
| Conical | 1-34.7 | 360 | 55 | 36 | 1000 | 4750x1550x2460 |
SJSZ-92 | 92/188 | 2500 |
| Conical | 1-34.7 | 750 | 90 | 68 | 1400 | 6000X1600x2500 |
SJS-65 | 65/24 |
| 24 | Parallel | 5-50 | 120 | 22 | 20.9 | 1000 | 4390x1260x2600 |
SJSP-80 | 80 |
| 21 | Parallel | 4.1-41 | 250 | 45 | 37.6 | 1000 | 4600x900x2200 |
SJSP-90 | 90 |
| 22 | Parallel | 4.1-41 | 300 | 55 | 37.6 | 1000 | 3800x1250x2300 |
SJSP-120 | 120 |
| 20 | Parallel | 40 | 550 | 90 | 60 | 1100 | 5601x2260x3000 |
