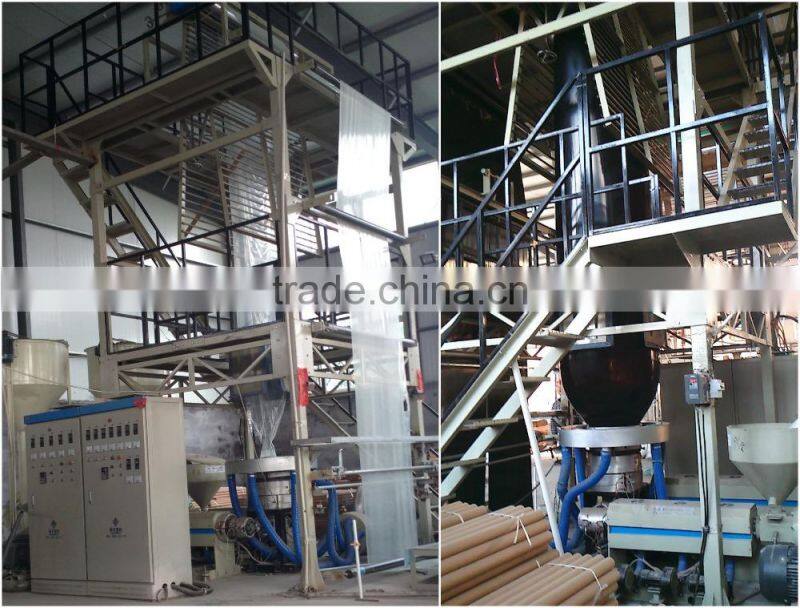

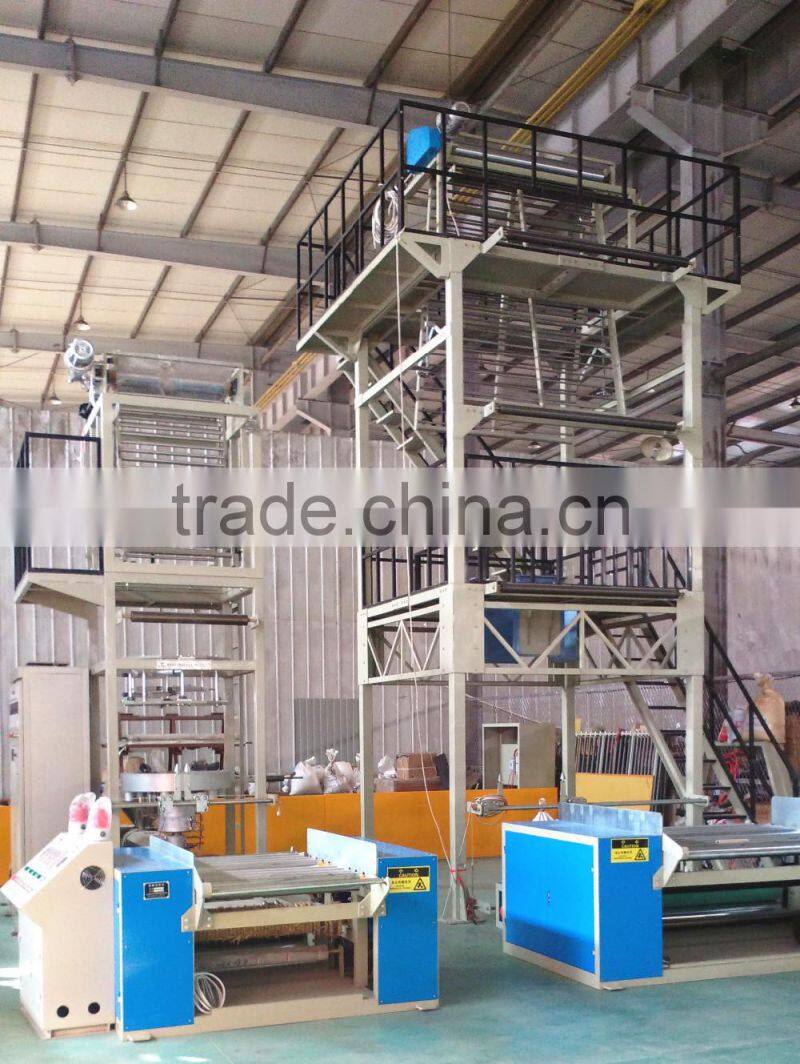

PE plastic mulch agricultural film blown machine line
LD (L) Series Mulch/ Agricultral Blown Film lines are take 100% LLDPE or LLDPE&LDPE compound as raw material to produce mulch/ agricultural film. This lines are the crystalllization of our factory and Japan' s cooperation. It adopts the most advanced technologies in the world. The machine are high yeild, low energy consumption, goood stability and reliability. We maintain any details and optimize any parts, the machine is the most ideal equipment to produce the mulch/ agricultural films.
| |
Type | LD1100 | LD1300 | PC-65 | LD2200 | LD2500 | LD2650 | LD2800 |
Max. film layflat width mm | 1000 | 1200 | 1500 | 2000 | 2300 | 2500 | 2600 |
film thickness mm | 0.005~0.008 | 0.006~0.009 | |||||
Output kg/h | 50 | 52 | 110 | 130 | 180 | 220 | 240 |
Raw material | Virgin LLDPE LDPE LLDPE&LDPE blend compound | ||||||
Screw diameter mm | 45 | 50 | 65 | 75 | 75 | 90 | 90 |
Screw L/D ratio | 30 | 28 | 28 | 28 | 30 | 30 | 30 |
Max. screw rotation speed r/min | 130 | 130 | 140 | 105 | 110 | 120 | 120 |
Main motor mode | Frequency—conversion speed--regulating | ||||||
Main motor power kw | 15 | 18.5 | 37 | 45 | 55 | 75 | 90 |
Die structure | Spiral die ,processing in machining center | ||||||
Max. haul-off and wind-up speed m/min | 120 | 120 | 120 | 120 | 100 | 80 | 80 |
Total power kw | 28 | 32.5 | 72 | 80 | 88 | 105 | 180 |
Overall dimension m | 6.2X2.3X5 | 6.4X2..5X5 | 6.6X3X6.8 | 7.5X2.5X7.7 | 7.8X3.2X10.5 | 8X3.5X 10.5 | 13X4X 19 |
Weight t | 5.2 | 5.5 | 6.5 | 8.5 | 16 | 19.5 | 21 |
| This is a breif introdunction of part of our machines, all the parameters can be changed as customers' request. If you want to know more, please don't hesitate to contact us. Best regards. |

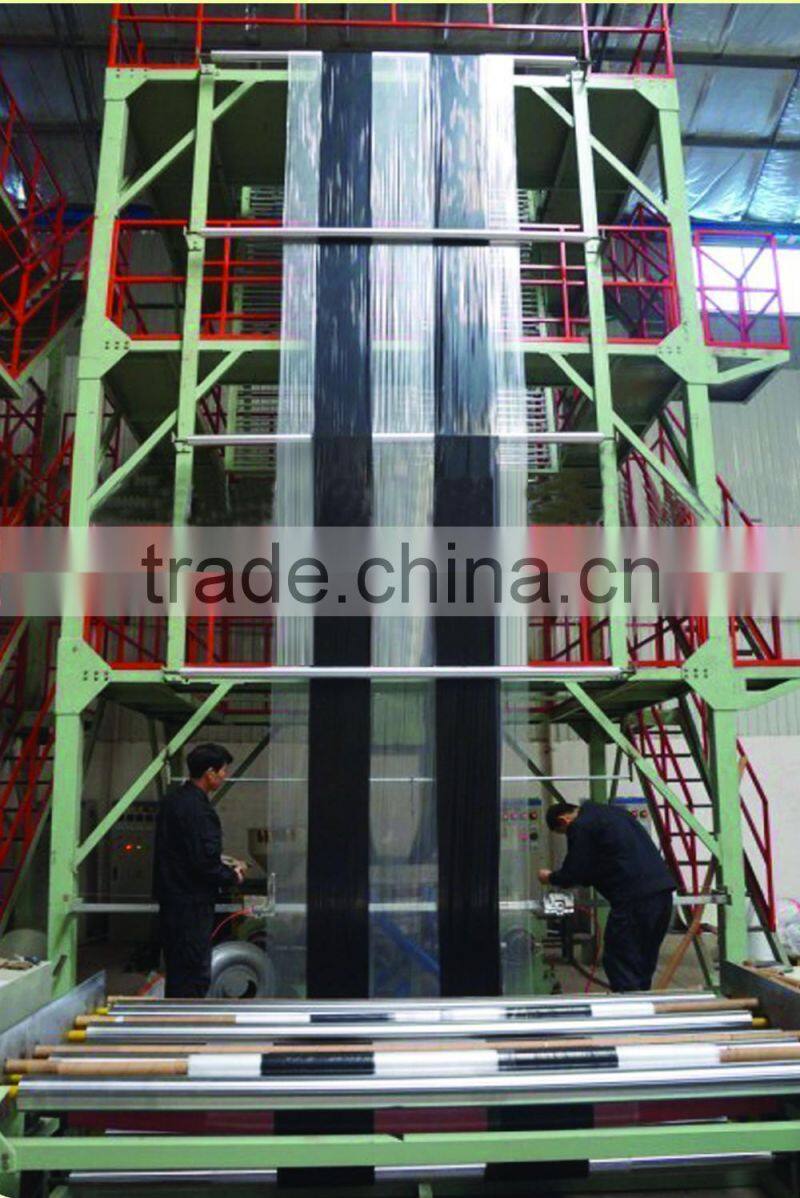

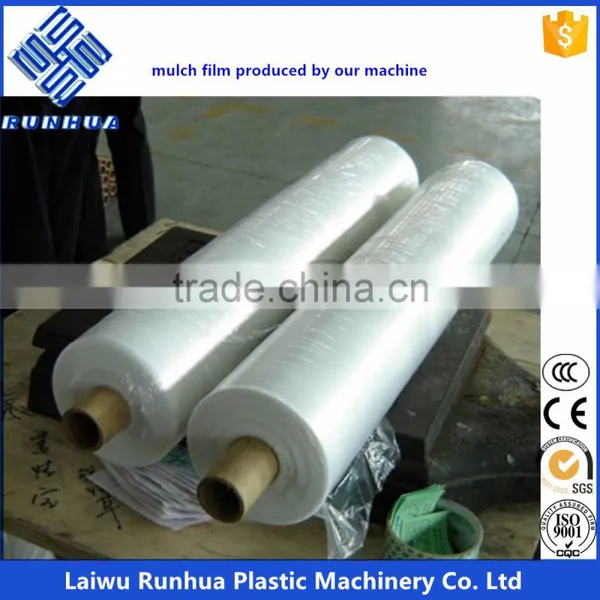

| Mulch machine can produces various types of films, such as silve black films, transparent films, white and black film. Costomer just need to change some of the raw mateial and additives, then can get the film they want. |
This is a two year old machine, and the winding roller is without any rust, very good quality. The nitriding depth can meet your needs. The guide roller with special processing, without any color change.

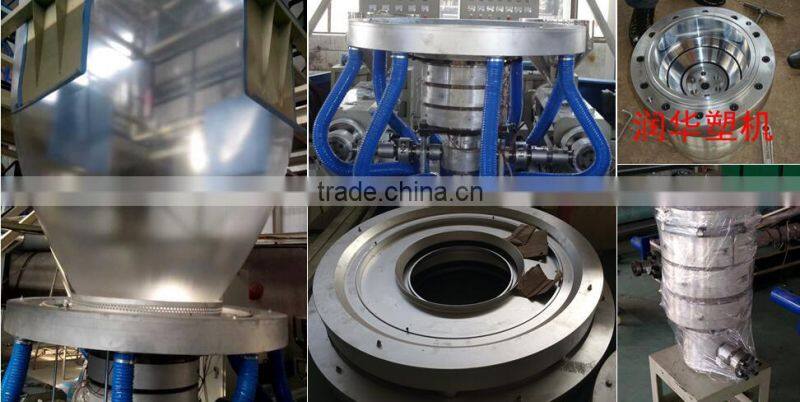

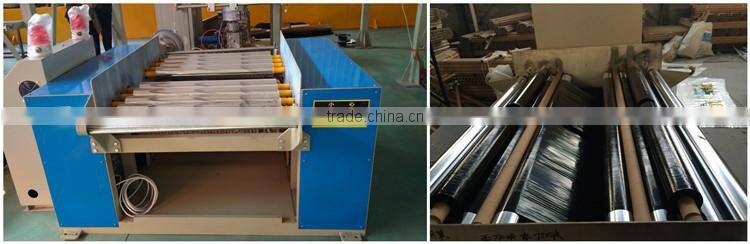

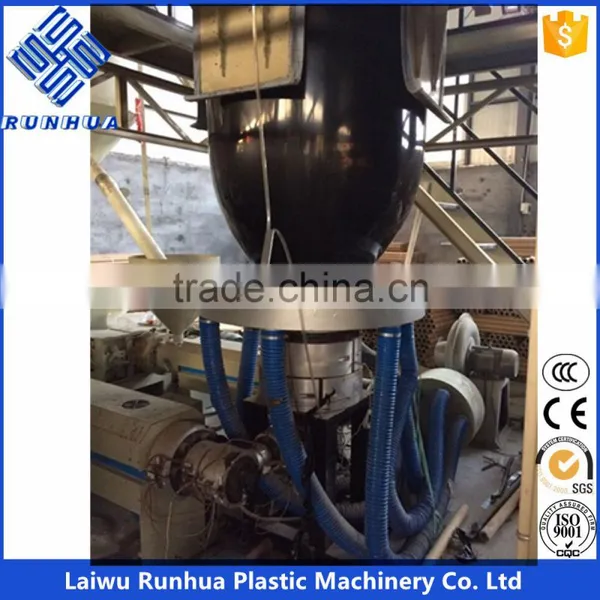

Die head and air ringEight rollers winder, winding speed is very fast can reach 120m/min, the second winder is two years old without any rust.
Why choose us?
The first reason is good quality, second good quality, third still good quality
We are professional in manufacturing agriculture film blowing machine, most of PO greenhouse film blowing machine in China are produced by us.
In the top 10 PO film seller, there are 8 sellers use our machine to produce the film.
We more than once won the bid of PetroChina, Sinopec, the provincial agriculture bureau.
1 year warranty for whole machine.
How could we reach this high level?
Focus.
We focus on film blowing machine, especially in agriculture film blowing machine, that's why our machine is the best greenhouse film blowing machine.
It is no exaggeration to say our agricultural film blowing machine is most advanced in China and also in the lead of the world.
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.
Main products: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.
Our machine can prodcuce various plastic wires, plastic films. The max. width can reach 30 meters. Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.
Plastic wires: round wires, flat wires, tearing films
Plastic films: POF films, high barrier films, liner bag films , mulch film, greenhouse film, geomembrane and other films
Our motto: Quality comes first, Customer is the upermost
Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province
