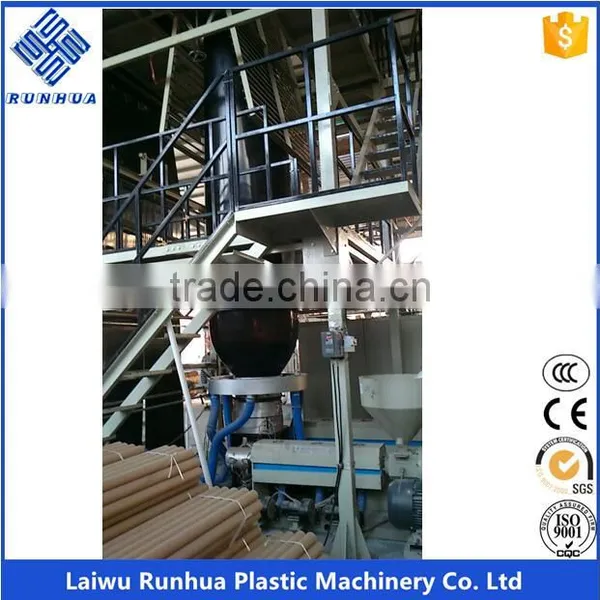

SJ-45 two layer black mulch film blowing machine
Main parameters for SJ-45 two layer black mulch film blowing machine
Model | LD1100 | LD1300 | PC-65 | LD2200 | LD2500 | LD2600 | LD2800 | |||
Max. mulch film layflat width(mm ) | 1000 | 1200 | 1500 | 2000 | 2300 | 2500 | 2600 | |||
Max. agricultural film layflat width(mm ) | 800 | 1000 | 1300 | 1800 | 2100 | 2300 | 2400 | |||
Mulch film thickness(mm ) | 0.005~0.008 | 0.006~0.009 | ||||||||
Agricultural film thickness(mm ) | 0.04~0.08 | |||||||||
Output(kg/h ) | 50 | 55 | 110 | 130 | 180 | 220 | 240 | |||
Raw material | Virgin LLDPE,LDPE,LLDPE&LDPE blend compound | |||||||||
Screw diameter(mm ) | 45 | 50 | 55/65 | 65 | 75 | 75 | 90 | |||
Screw L/D ratio | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |||
Max. screw rotation speed(r/min) | 130 | 130 | 130/130 | 130 | 110 | 110 | 100 | |||
Main motor mode | Frequency—conversion speed--regulating | |||||||||
Main motor power(KW) | 15 | 18.5 | 30/37 | 37 | 55 | 55 | 75 | |||
Die structure | Spiral die, processing in machining center | |||||||||
Max. haul-off and wind-up speed of mulch film(m/min ) | 120 | 120 | 120 | 120 | 100 | 80 | 80 | |||
Max. haul-off and wind-up speed of agricultural film(m/min ) | 30 | |||||||||
Total power(KW) | 28 | 32.5 | 72 | 80 | 88 | 105 | 180 | |||
Overall dimension(m) | 6.2X2.3X5 | 6.4X2.5X5 | 6.6X3X6.8 | 7.5X2.5X 7.7 | 7.8X3.2X 10.5 | 8X3.5X10.5 | 13X4X19 | |||
Weight(KG) | 5200 | 5500 | 6500 | 8500 | 16000 | 19500 | 21000 | |||
Remarks: above configuration for your reference, final exact data based on your specific demands.
1. The line is used for produce agricultural mulch film with LDPE, LLDPE, HDPE and its compound as raw material.
2. Central feeding spiral die head, machining center processing, chrome plating, own design.
3. Extruders adopt sectionalized screw, with oblique barrier and the mixing screw head, stable function, reliable, own design structure, highly improve plasticizing ability.
4. Even 8 rollers winding, winding roller chrome plating, without corrosion within several years.

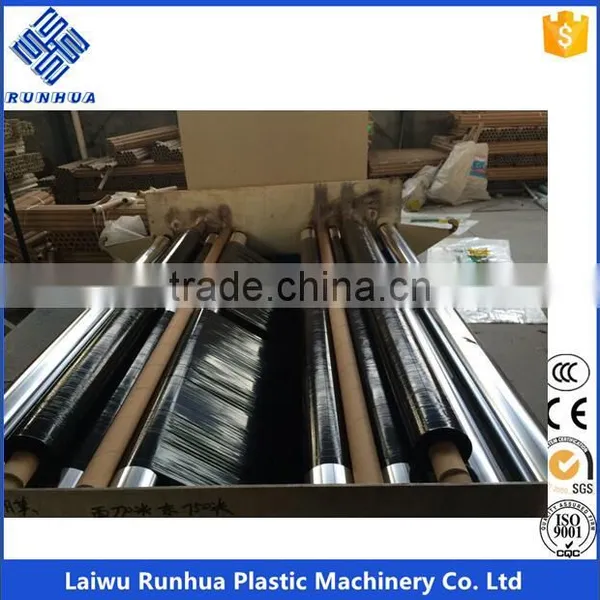

5. Available to produce mulch film with color transparent, black, stripped, both faces different color.

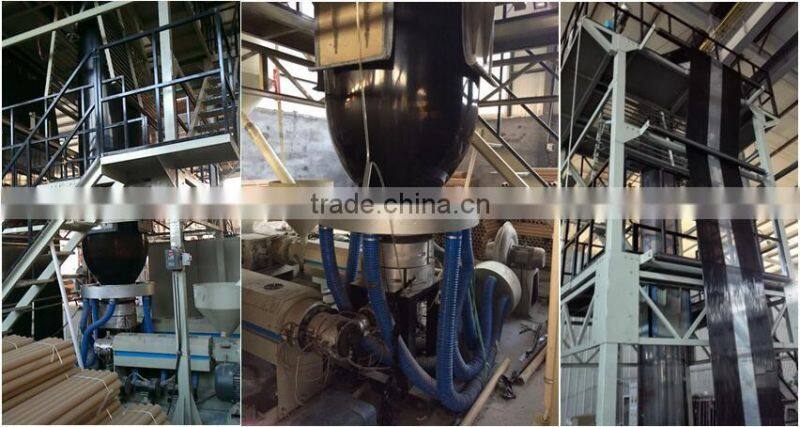

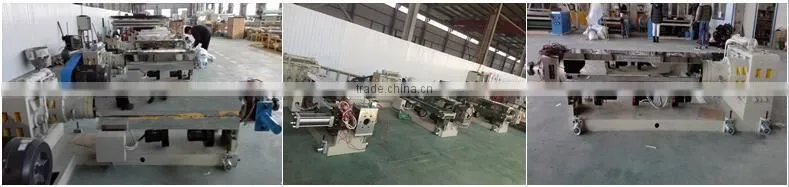

1. EXTRUDERS AND SCREEN CHANGER
|

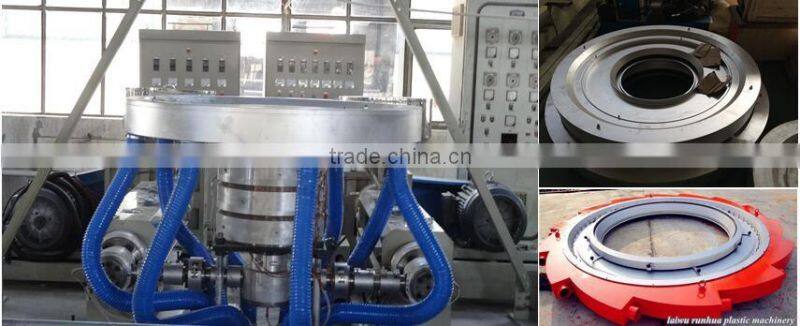

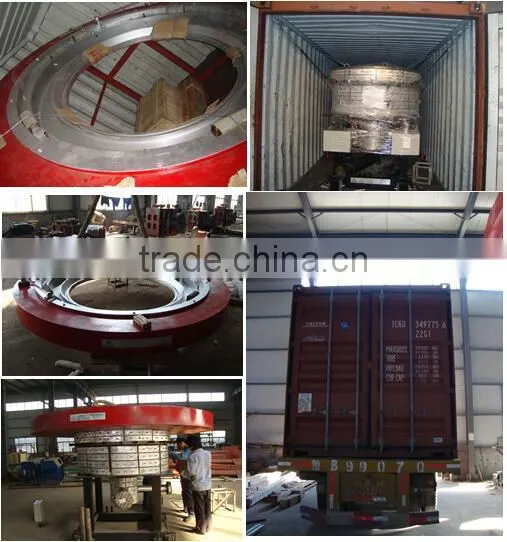

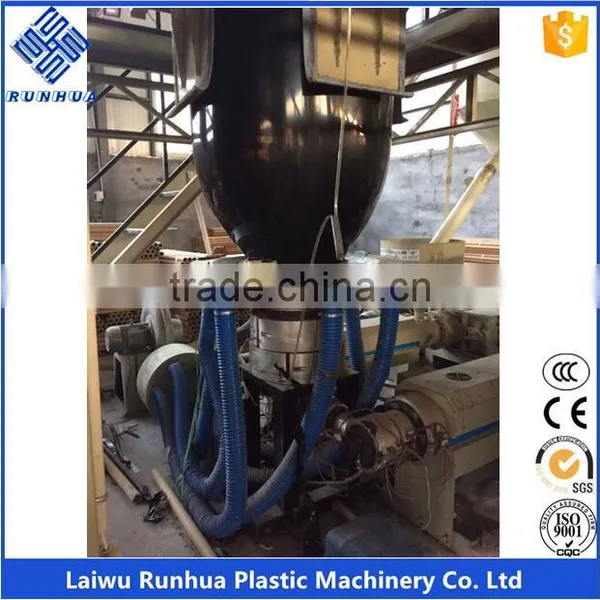

2. DIE HEAD AND AIR RING
|
3. TRACTION PART
|

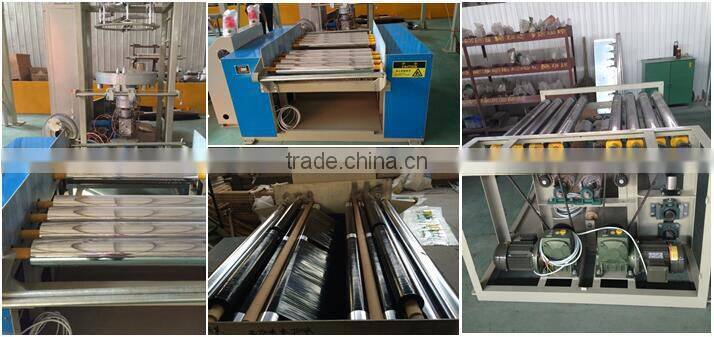

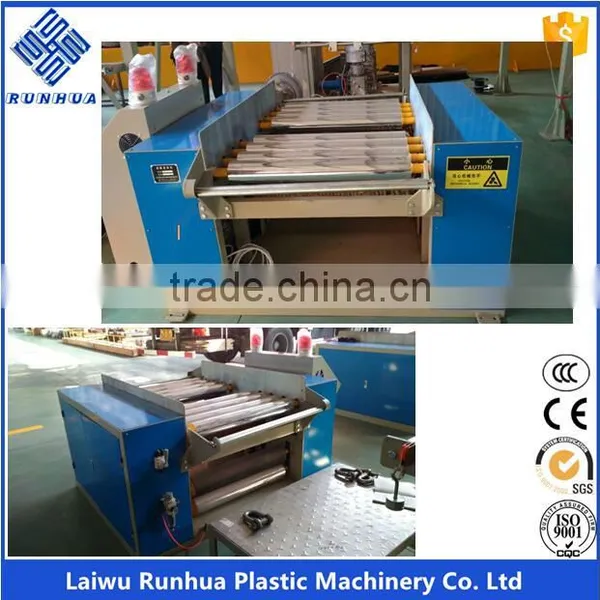

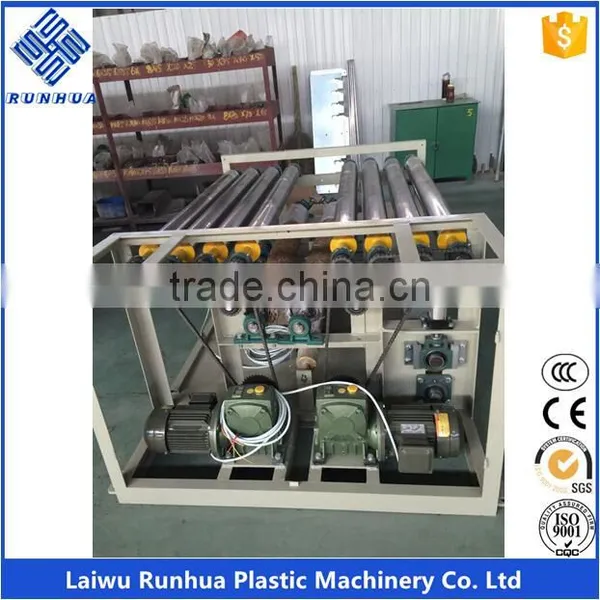

4. REWINDER
|

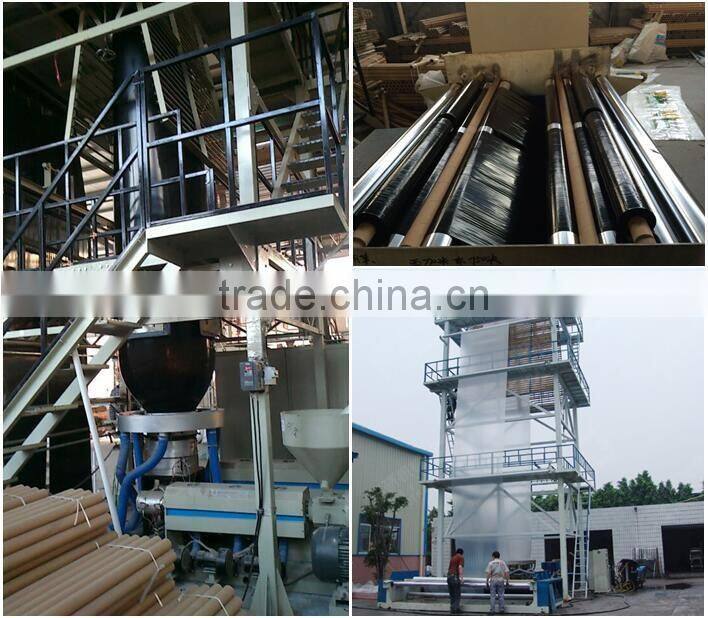

5. APPLICATION
|
Business nature: R&D manufacturer. |
|
Trade terms: EXW, FOB, CIF, CFR. | |
Payment terms: T/T, L/C, One-touch via Alibaba, 30% deposit in advance.
| |
Packaging: standard stretch film packing.
| |
Warranty: 12 months after installation.
| |
Shipping: ocean container transportation.
| |
Delivery detail: within 90 days after advanced deposit received. |
Runhua Plastic Machinery is a R&D enterprise with 6 years oversea business experiences, with customers widely among Southeast Asia, Middle East area, Africa, South America etc. Machine with popular application in in food & commodity packing, agriculture, medical, pond liner, construction etc. We committed to provide first-rate machines to customers with devoleping technology and solutions.
Now especially one of the leading suppliers for agricultural film machine, enjoying advanced technology domestic even international, and many times win the bidding of large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc.

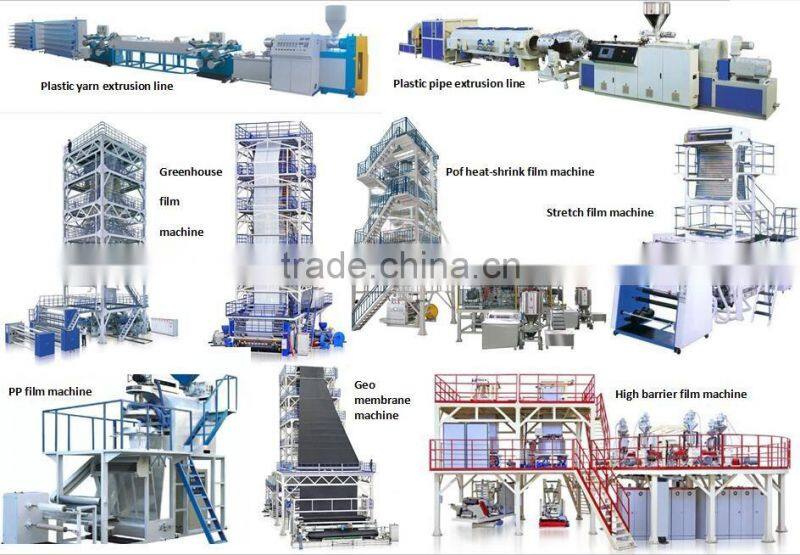

Main products of Runhua: Agricultural multi-layer co extrusion film machine, Packaging film machine, Pof heat-shrink film machine, Multi-layer co extrusion high barrier film machine, Geo-membrane machine, Plastic yarn extrusion machine, Plastic pipe extrusion machine.
12 months' quality guarantee, and we supply top quality and service.
Engineers available to serve for customers overseas.
CONSULTING SERVICE
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
INSTALLATION SERVICE
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
CLIENT TRAINING SERVICE
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
AFTER-SALE SERVICE
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.
